Quick Details
-
Voltage:
-
360V
-
Power:
-
3KW/6P
-
Dimension(L*W*H):
-
1390*1110*1750mm
-
Weight (KG):
-
750
-
spindle number:
-
2
-
worktable size:
-
800*230mm
-
Worktable travel:
-
240mm
-
worktable power:
-
1kw
-
spindle forms drilling tapping:
-
MT4
-
Spindle power:
-
2.3kw
-
Spindle motor speed:rpm:
-
left50-657 right 1000 675
-
service:
-
Engineers available to service machinery overseas
-
spindle outer diameter:
-
90
Quick Details
-
Place of Origin:
-
Fujian, China
-
Machine Type:
-
Machine Tools
-
Brand Name:
-
ANCON
-
Voltage:
-
360V
-
Power:
-
3KW/6P
-
Dimension(L*W*H):
-
1390*1110*1750mm
-
Weight (KG):
-
750
-
spindle number:
-
2
-
worktable size:
-
800*230mm
-
Worktable travel:
-
240mm
-
worktable power:
-
1kw
-
spindle forms drilling tapping:
-
MT4
-
Spindle power:
-
2.3kw
-
Spindle motor speed:rpm:
-
left50-657 right 1000 675
-
service:
-
Engineers available to service machinery overseas
-
spindle outer diameter:
-
90

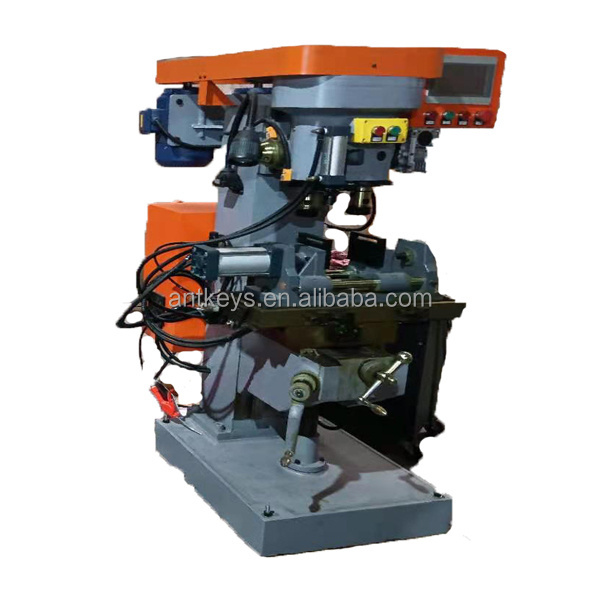

Double-spindle automatic complex machine Drilling and Tapping Machine ZSK series
♦ Technical Advantages:
Instead of thread and screw, it is programmable differential tapping with tapping distance adjustable.
Reducing manual operation with high efficiency and accuracy automatic operation, a person can operate many machines at the same time.
Using PLC programmable controller as electrical system , suitable for components processing, drilling,tapping at the same time.
The guide track has through ultrasonic frequency quenching, and by using cylinder with buffer and pneumatic clamping in the slide base of working table, it has less vibration and function of fast install & disassemble.
