- Product Details
- {{item.text}}
Quick Details
-
Color:
-
White
-
Product name:
-

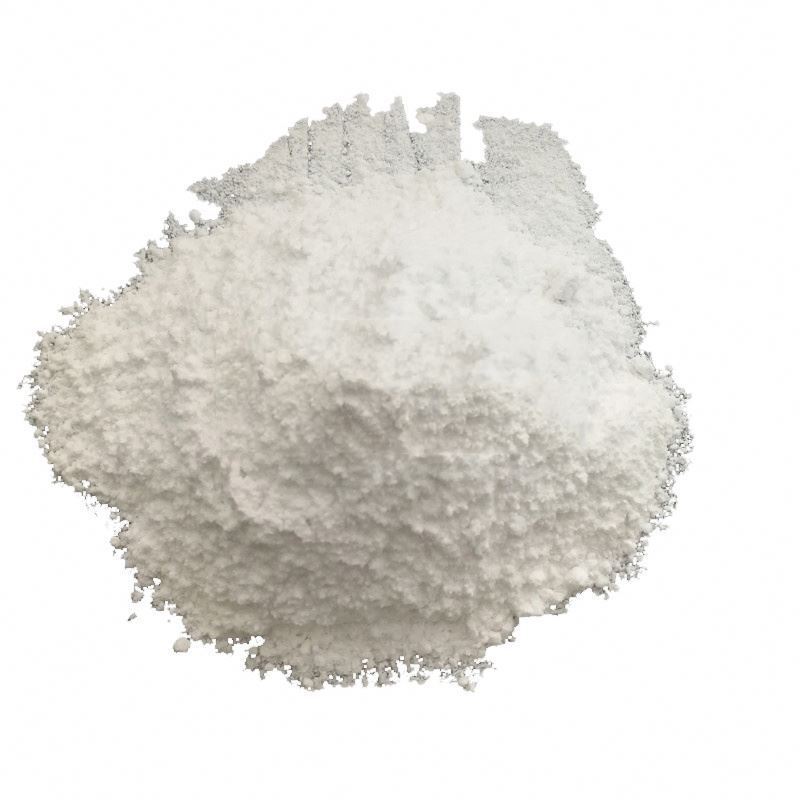

PTFE powder
-
Material:
-
100% Virgin PTFE
-
Name:
-
Natural Ptfe powder
-
Certification:
-
ISO
-
Feature:
-
Sealing Performance
-
Purity:
-
99% PTFE Powder
-
Exterior:
-
White Fine Powder
-
Average particle size:
-
400-900um
Quick Details
-
color:
-
white powder
-
Shape:
-
powder ,liquid
-
Brand Name:
-
LEHE
-
Color:
-
White
-
Product name:
-
PTFE powder
-
Material:
-
100% Virgin PTFE
-
Name:
-
Natural Ptfe powder
-
Certification:
-
ISO
-
Feature:
-
Sealing Performance
-
Purity:
-
99% PTFE Powder
-
Exterior:
-
White Fine Powder
-
Average particle size:
-
400-900um
Product Description
Polytetrafluoroethylene (PTFE), commonly known as "the king of plastics", is a polymer compound formed by the polymerization of tetrafluoroethylene. Insulation and good resistance to aging. Used as engineering plastics, can be made into PTFE tube, rod, tape,plate, film, etc. Generally used in corrosion-resistant pipes, containers, pumps, valves, radars, high-frequency communication equipment, and radio equipment with high performance requirements.
Specification
PTFE Fine Powder
|
|
FR-D01
|
FR-D02
|
FR-D03
|
|
Appearance
|
White loose powder
|
Color powder
|
White loose powder
|
|
Tensile strength(Mpa ≥)
|
28
|
20
|
32
|
|
Elongation at Break(% ≥)
|
350
|
350
|
350
|
|
Average particle size(µ m)
|
650±250
|
650±250
|
650±100
|
|
Bulk density (g/L)
|
475±100
|
475±100
|
475±100
|
|
Standard specific gravity
|
2.14-2.19
|
2.17-2.20
|
2.14-2.19
|
|
Water content (% ≤)
|
0.03
|
0.03
|
0.03
|
|
Extrusion pressure (RR.100: 1) Mpa
|
9.7±4. 2
|
9.7±4. 2
|
27.5±13 (RR.400: 1)
|
|
Extrusion appearance
|
Continuous, even, smooth
|
Continuous, even, smooth
|
Continuous, even, smooth
|
|
Thermal instability index <
|
30
|
|
30
|
|
Characters
|
1. Has high tensile strength, can make wide seal tape.
2. To make 4~12 mm white extruded tube. 3. To make 16mm extruded rod |
1. Make color wide seal tape, color is uniform and no spot.
2. Make various extruded tube, color is uniform. |
Make various extruded tube, use rapid cooling process to improve tube transparency
|
|
Application
|
Make extruded tube, rod, tensile, film, seal tape, etc.
|
Make extruded tube, rod, tensile, film, seal tape, etc.
|
Make extruded tube, rod, tensile, film, seal tape, etc.
|
PTFE Dispersion Powder-macaroni pipe
|
|
FR-G01
|
FR-G02
|
FR-G04
|
|
|
Appearance
|
White granular
|
White granular
|
White granular
|
|
|
Tensile strength(Mpa ≥)
|
25.0
|
20.7
|
24.0
|
|
|
Elongation at Break(% ≥)
|
300
|
300
|
300
|
|
|
Average particle size( µ m)
|
550±100
|
550±100
|
500±100
|
|
|
Bulk density (g/L)
|
475±100
|
475±100
|
475±100
|
|
|
Standard specific gravity
|
2.16-2.20
|
2.16-2.20
|
2.16-2.20
|
|
|
Water content( % ≤)
|
0.04
|
0.04
|
0.04
|
|
|
Melting point ℃
|
327±5
|
327±5
|
327±5
|
|
|
Extrusion pressure (RR.400: 1) Mpa
|
27.5±13.5
|
27.5±13.5
|
27.5±13.5
|
|
|
Extrusion appearance
|
Continuous, even, smooth
|
Continuous, even, smooth
|
Continuous, even, smooth
|
|
|
Thermal instability index <
|
50
|
50
|
50
|
|
|
Compression ratio
|
R. R=100:20
|
R. R=100:20
|
R. R=900:1 and above
|
|
|
Application
|
Make extruded wire for electronic, insulation material for insulated wires, Generator pipeline and rocket fuel pipeline; Steam
hose; Hoses used in hydraulic control equipment for viscous materials and made into casing liner for parts on pump valves |
|
Make extrudedφ≤2mm,with wall thickness 0.1~0.05mm capillary such as φ0.9/0.5,φ0.6/0.3
|
|
PTFE Suspension Molding Powder
|
|
FR-S30
|
FR-S30-S
|
|
Apperaance
|
White powder, no impurities
|
White powder, no impurities
|
|
Tensile strength(Mpa,≥)
|
37.5
|
35.0
|
|
Elogation at break (%,≥)
|
320
|
320
|
|
Bulk Density (g/L)
|
300-500
|
300-50
|
|
Average particle size,d50 (um)
|
30±5
|
30±5
|
|
S.S.G.
|
2.13-2.19
|
2.13-2.19
|
|
Melting point(℃)
|
327±5
|
327±5
|
|
Thermal instability index(℃,≤)
|
30
|
30
|
|
Electric strength (MV/m,≥)
|
3
|
3
|
|
Processing
|
Molding
|
Molding
|
|
Application
|
Film, Rod, tube, sheet, sealing material
|
Film, Rod, tube, sheet, sealing material
|
|
Packing
|
Sealed in PVC bags, packed in paper barrel
|
Sealed in PVC bags, packed in paper barrel
|
Applications
1). Add PTFE micro powder in coating can get various high performance coatings. It can improve viscosity and lubricating property of coating, reduce friction coefficient, increase corrosion and wear resistance, improve critical film thickness, and improve its formability.
As anti-sticking coating, it can be widely used in food, packaging, household appliance, kitchenware, chemical corrosion resistant meal parts, automobile, electronic parts, and other fields.
2). Add PTFE micro powder in lubricating oil and lubricating grease and improve the high pressure and high temperature lubricating performance of materials. Add PTFE micro powder in silicon oil, mineral oil or paraffin oil can obviously increase viscosity of oil. Add PTFE micro powder in grease, rosin, mineral can get high-quality lubricants. At present, it can be widely used in ball bearing, wear resistant bearing, lubricating guide rail, slider, valve for chemical equipment, and other fields.
As anti-sticking coating, it can be widely used in food, packaging, household appliance, kitchenware, chemical corrosion resistant meal parts, automobile, electronic parts, and other fields.
2). Add PTFE micro powder in lubricating oil and lubricating grease and improve the high pressure and high temperature lubricating performance of materials. Add PTFE micro powder in silicon oil, mineral oil or paraffin oil can obviously increase viscosity of oil. Add PTFE micro powder in grease, rosin, mineral can get high-quality lubricants. At present, it can be widely used in ball bearing, wear resistant bearing, lubricating guide rail, slider, valve for chemical equipment, and other fields.
Product packaging
Package:
Packed with sealed PE bag outside, load in waterproof paper barrel. The net weight is 20/25+0.1kg per barrel, then stack on a pallet.(PTFE dispersion liquid:25/1335+0.1kg per barrel)
It should be stocked in clean, cool and dry warehouse, prevent from agglomeration and contamination.
Packed with sealed PE bag outside, load in waterproof paper barrel. The net weight is 20/25+0.1kg per barrel, then stack on a pallet.(PTFE dispersion liquid:25/1335+0.1kg per barrel)
It should be stocked in clean, cool and dry warehouse, prevent from agglomeration and contamination.
