Quick Details
-
Warranty:
-
1 years
-
Frequency:
-
433.92Mhz, 433.92MHz
-
Voltage:
-
DC8-30V
-
Max Pressure:
-
1500Kpa
-
Product name:
-
TPMS Sensor
-
Keyword:
-
Tire Sensor Tpms
-
Type:
-
TMPS Tire Pressure Sensors
-
Battery life time:
-
5 Years
-
Color:
-
Black
-
Application:
-
Vehicle
-
Function:
-
Monitoring Tire Pressure
Quick Details
-
Car Fitment:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TFD
-
Warranty:
-
1 years
-
Frequency:
-
433.92Mhz, 433.92MHz
-
Voltage:
-
DC8-30V
-
Max Pressure:
-
1500Kpa
-
Product name:
-
TPMS Sensor
-
Keyword:
-
Tire Sensor Tpms
-
Type:
-
TMPS Tire Pressure Sensors
-
Battery life time:
-
5 Years
-
Color:
-
Black
-
Application:
-
Vehicle
-
Function:
-
Monitoring Tire Pressure
Product Configuration
|
Display parameter
|
|
|
|
|||
|

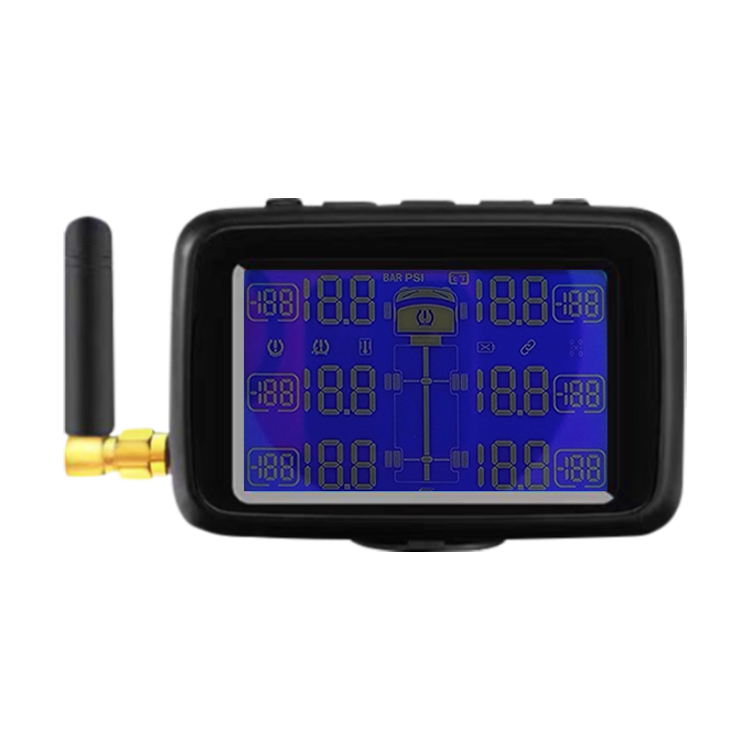

Monitor name
|
MDS300-6
|
RX sensitive
|
<-110dbm
|
|||
|
Display working voltage
|
DC8-30V
|
Power supply method
|
Harness Power Supply
|
|||
|
Standby current
|
--
|
Working current
|
＜50mA
|
|||
|
Operation temperature
|
-20~80℃
|
Pressure unit
|
Bar/Psi
|
|||
|
Installation
|
3M stick or Screws
|
Measurement accuracy
|
0.1Bar/Psi
|
|||
|
Warning for leakage
|
Sound & Flash on display
|
Display size
|
86*57*26(mm)
|
|||
|
Sensor parameter
|
|
|
|
|||
|
Sensor name
|
N300-T
|
Sensor chips
|
Infineon
|
|||
|
Sensor battery
|
CR1632
|
Battery life
|
≥5 Years
|
|||
|
Sensor working current
|
≤10mA
|
Sensor Stand-by current
|
≤10uA
|
|||
|
Hi-TX Power
|
＜10dBM
|
Low-RX Frequency
|
125Khz
|
|||
|
Hi-TX modulation
|
FSK
|
Low-RX modulation
|
ASK
|
|||
|
Pressure range
|
0-1500Kpa
|
Frequency
|
433.92Mhz
|
|||
|
Measurement accuracy
|
±10Kpa
|
Pressure unit
|
Bar/Psi
|
|||
|
Operation temperature
|
-20℃~120℃
|
Waterproof level
|
IP67
|
|||
|
Repeater parameter
|
|
|
|
|||
|
Repeater name
|
RPT-3
|
Waterproof level
|
IP45
|
|||
|
Power Supply
|
DC8-24V
|
Operation temperature
|
-40~80℃
|
|||
|
TX Power
|
＜17dbm
|
RX sensitivity
|
<-110dbm
|
|||
