Quick Details
-
Weight:
-
2000 KG, whole machine about 2000kg
-
Dimension(L*W*H):
-
2750mm *1060mm *1200mm
-
Product Name:
-
Crawler Tiller
-
Dimension:
-
2750mm *1060mm *1200mm
-
Diesel Engine Brand:
-
Xinchai Engine
-
Engine speed:
-
2400rpm
-
Fuel consumption:
-
about 3-5 litres/mu
-
Travelling speed:
-
10KM/h
-
Working efficiency:
-
6-9mu/hour
-
Gear Total:
-
10 gears
Quick Details
-
Use:
-
Farm Cultivator
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guanghe
-
Weight:
-
2000 KG, whole machine about 2000kg
-
Dimension(L*W*H):
-
2750mm *1060mm *1200mm
-
Product Name:
-
Crawler Tiller
-
Dimension:
-
2750mm *1060mm *1200mm
-
Diesel Engine Brand:
-
Xinchai Engine
-
Engine speed:
-
2400rpm
-
Fuel consumption:
-
about 3-5 litres/mu
-
Travelling speed:
-
10KM/h
-
Working efficiency:
-
6-9mu/hour
-
Gear Total:
-
10 gears

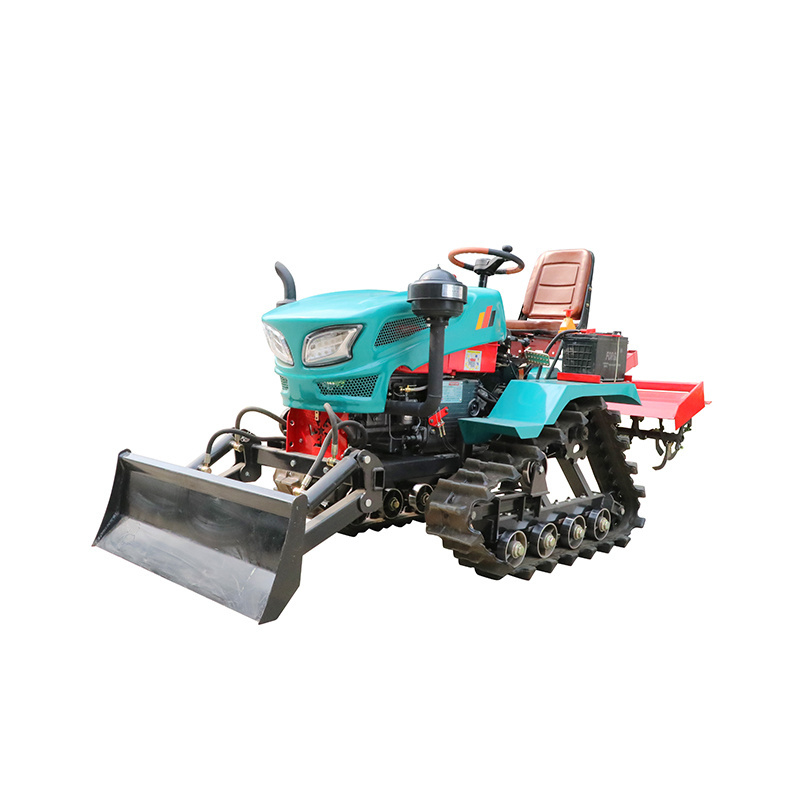

Top Selling Mini Crawler Tractor Micro-cultivator ditching seeding multi-functional agricultural plow cultivator
Product Description
The frame is reasonably designed with thickened steel plate, which is strong and durable, reduces the vibration produced by the engine and prolongs the life of the machine.
Lengthening the undercarriage makes the grounding area of the track longer and wider, which also ensures the stability of the machine in the front and back, and makes it safer and smoother to climb slopes, cross ditches and other complex terrains.
The engine adopts 4-cylinder Xinchai 498 supercharged engine.
The gearbox adopts the special gearbox for crawler developed by our factory, with strong power and flexible response, there are 4 forward gears, 1 reverse gear, high and low speed gears, and high and low speed gears for rear power output.
The machine steering adopts hydraulic unilateral cut-off power, which reduces the wear and tear on the brakes (discs and pads) and prolongs the service life.
Specification
|
Core Components
|
Motor, Other, Gear, Engine, Crawler, Transmission, Hydraulic Pump
|
|
Applicable Industries
|
Farms
|
|
Showroom Location
|
None
|
|
Product Name
|
Crawler Tiller
|
|
Dimension
|
2750mm *1060mm *1200mm
|
|
Diesel Engine Brand
|
Xinchai Engine
|
|
Engine speed
|
2400rpm
|
|
Weight
|
whole machine about 2000kg
|
|
Fuel consumption
|
about 3-5 litres/mu
|
|
Travelling speed
|
10KM/h
|
|
Working efficiency
|
6-9mu/hour
|
|
Gear Total
|
10 gears
|
Details Images
One side adopts the design of installing 1 driving wheel, 7 supporting wheels, 2 top wheels and 1 tensioning wheel. Using 7 supporting wheels can effectively spread the weight of the machine to each wheel, thus reducing the bearing weight of the wheels and making the wheels more durable and wear-resistant.
The use of 2 top wheels can reduce the amplitude of track trembling, so that the track will not be derailed.
The sheet metal parts of the machine are all made of thickened T4 or above steel plate, which is strong and durable, not easy to be deformed.
The paint colour is made of high quality plastic spray powder with high adhesion and good weather resistance.
Large diesel tank capacity, long range
Use high quality dual distributor, long life, fast response.
Rear mounted suspension (with suspension) is common to all wheeled tractor farm equipment
The hydraulic system of this vehicle is hydraulic transmission oil, high temperature resistant, with 120 mesh filter, which can effectively filter iron filings and impurities in the transmission oil. The hydraulic oil radiator is installed to reduce the temperature of transmission oil in the process of use, avoiding damage to the gearbox and malfunctioning of operation.
Installation of water tank radiator, increase the capacity of the water tank, can effectively reduce the high temperature of the engine in the process of use.
The air filter is a dry filter, which can filter a large amount of dust and dirt.
Optional tools: rotary ploughing, weeding, backfilling, ditching, trenching, push shovels
Rotary ploughing: rotary ploughing width 1m, rotary ploughing knife length
Weeding: width of weeding 1m, scraping the ground for weeding
Backfilling: width of soil collection 1m
Ditching: ditching width 30cm, depth 30cm
Pushing shovel: shovel surface width 1m, height 30cm, highest distance from the ground 25cm.
Application Scenarios
Strong track gripping ability, suitable for harsh terrain operations, small turning torque, flexible turning, suitable for greenhouses, orchards, planting, woods and other narrow space operations.
