Quick Details
-
Model Number:
-
HGN4-007GL
-
Max. Current:
-
32A, 32A
-
Mechanical Life:
-
10000 times, 10000 times
-
Product Name:
-
High quality 1000V 32A PV DC Isolator Switch
-
Rated Curren:
-
16,25,32A
-
Pole:
-
2&4 poles
-
Standard:
-
IEC60947-3
-
IP degree:
-
IP66
-
Type:
-
DC Isolator Switch
-
Color:
-
Grey and Black
Quick Details
-
Max. Voltage:
-
1000V, 1000V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kampa
-
Model Number:
-
HGN4-007GL
-
Max. Current:
-
32A, 32A
-
Mechanical Life:
-
10000 times, 10000 times
-
Product Name:
-
High quality 1000V 32A PV DC Isolator Switch
-
Rated Curren:
-
16,25,32A
-
Pole:
-
2&4 poles
-
Standard:
-
IEC60947-3
-
IP degree:
-
IP66
-
Type:
-
DC Isolator Switch
-
Color:
-
Grey and Black
1. Features:
Compact and suitable where space is limited.
DIN rail mounting for easy installation.
Load-breaking up to 8 times rated current making it ideal for motor isolation.
Double-break with silver rivets- superior performance, reliability and long lasting.
Padlockable handle- tamper-proof.
Highly visible red/yellow handle.
DC1000V/DC1200V 10A, 16A, 20A, 32A.
2. Technical parameters:
Rated voltage: DC600V, DC900V, DC1000V,1500V
IP Rating: IP66
Connection Type: 4, M20, M25
Working Temperature: -5 °C-+60 °C
Standard: IEC 60947-3

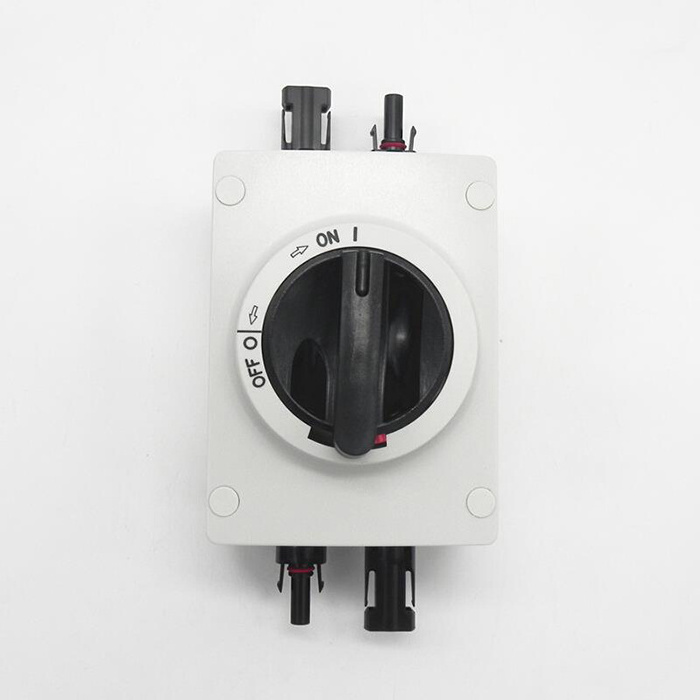

3.Products show
