Zinc Storage Tank electric heating zinc liquid preservation tank for hot dip galvanizing plant

Zinc Storage Tank electric heating zinc liquid preservation tank for hot dip galvanizing plant

Product introduction

In the production of hot-dip galvanizing, the stop production and maintenance of the galvanizing kettle is inevitable, especially in large and medium-sized galvanizing factory, the repair cycle reach a length of one month and it takes a lot of manpower and material resources. Not only the production of galvanizing will be restricted, but the cost of production will also be a great waste. Thus, the production efficiency is greatly reduced.

In the process of production, if there is a leakage of zinc, a lot of zinc can not be extracted in time will cause great waste, economic loss and environmental pollution. The cost waste is more serious during the maintenance of the galvanizing kettle (the zinc liquid is converted from liquid to solid, then from solid to liquid, and the zinc solution is oxidized), and the zinc pot restart need a long time of dissolving zinc.

According to many years of investigation by industry related organizations, it is found that the zinc consumption of the galvanizing factory is about 2% in the production process above.

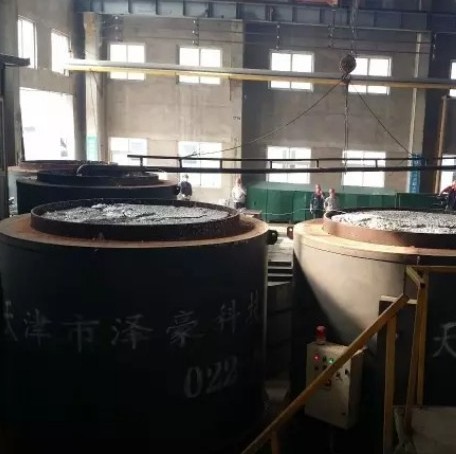

In order to reduce the probability of leakage of zinc and shorten the maintenance period, our company has developed a mobile electric heating zinc storage tank, it is easy to use, safe and reliable, reduce zinc loss, save time of molten zinc, and reduce accidents in the process of melting zinc, for example, the tearing phenomenon of the zinc kettle.

Essential parameter

Product size:

Internal dimensions: Φ2000mm×2300mm

External dimensions: Φ2800mm×2800mm

Total weight: About 6tons/set

Storage capacity:  50tons/set

Heat preservation power: 20-40KW/set

Maximum power: 60KW/set

Technical characteristics

1.The earliest invention

Our company began research and development in 2011, experienced 3 years of exploration and testing, launched in the market in 2014, and applied for the invention patent in 2016.

2.Reasonable size

If you are worried about the height of your workshop is not enough, the door of the workshop is too small and the loading car is not big enough. Don’t worry, our zinc storage tank has a very reasonable size which is 2.8 meters wide and 2.8 meters deep that can meet various requirements.

3.Stable performance:

Our zinc storage tank is a product with a patent core technology, and other products imitating our company on the market are not stable.

4. Simplicity of operator:

Full automatic control operation after the equipment is connected to the power supply.

5.Replaceable accessories:

If the inner tank of a zinc storage tank is corroded, it can be replaced instead of replace a complete set of equipment.

Company display

In China, we are one of the most professional hot galvanizing kettle supplier.

Supply products

Round angle round bottom galvanizing kettle

Round angle flat bottom galvanizing kettle

Zinc storage tank

Zinc pump

Fishing cadmia machine
