LIANGPU Machinery has a full range of material handling systems, from diesel forklifts, LPG forklifts, and electric forklifts to
pallet stackers and pallet jacks, reach trucks. Excellent performance and low prices. We have 20 years of production experience,
and our products have been tested in the market, winning great praise from customers. We also have a complete after-sales service
and quality assurance system to solve your worries. LINAGPU brand material handling products are indeed yours
- Product Details
- {{item.text}}
Quick Details
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Weight (KG):
-
1600 kg
-
Product Name:
-
Electric hand lift truck
-
Model:
-
LP-EF1500
-
Loading Capacity:
-
1500kg
-
Fork size:
-
1070*100mm
-
Max Lifting Height:
-
2200mm
-
Traveling speed:
-
4km/h
-
Minimum turning radius:
-
1450mm
-
Front wheel:
-
500-80 solid tires
-
Back wheel:
-
300-60 solid tires
-
Brake form:
-
Electronic brake
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LIANGPU
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Weight (KG):
-
1600 kg
-
Product Name:
-
Electric hand lift truck
-
Model:
-
LP-EF1500
-
Loading Capacity:
-
1500kg
-
Fork size:
-
1070*100mm
-
Max Lifting Height:
-
2200mm
-
Traveling speed:
-
4km/h
-
Minimum turning radius:
-
1450mm
-
Front wheel:
-
500-80 solid tires
-
Back wheel:
-
300-60 solid tires
-
Brake form:
-
Electronic brake
Product Overview

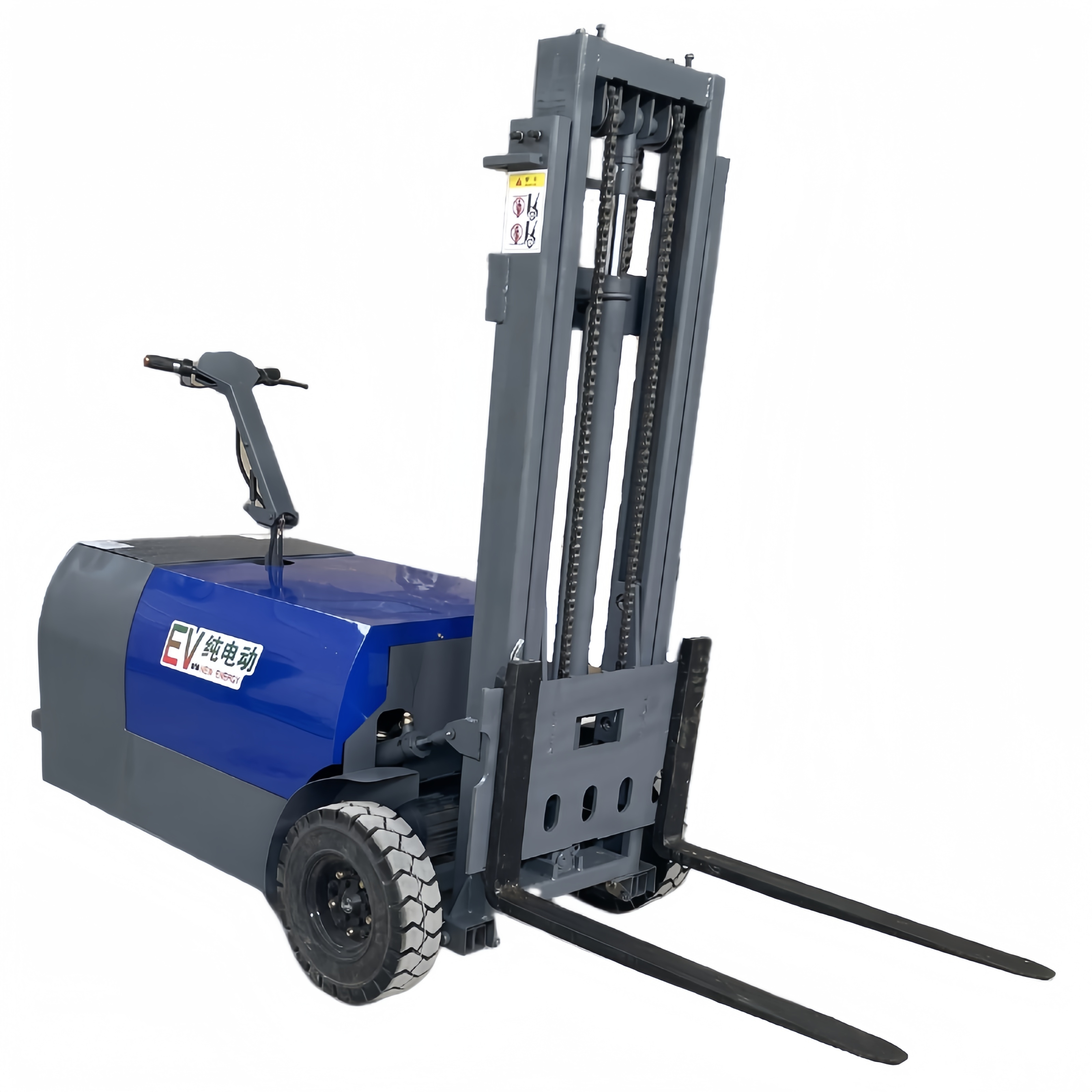

1.5T lift height 2.2M fork reach electric stacker pallet stacker Hand truck
Stacker is a kind of handling equipment widely used in warehousing and logistics industry. The stacker has an adjustable lifting height, which can meet the needs of different stacking heights. It is usually equipped with forks or pallets to support and carry goods. The stacker is easy to operate, has flexible mobility, and can be operated in a narrow warehouse space or shelf aisle. It is an important tool to improve logistics efficiency and reduce labor costs, and is widely used in various industrial and commercial places.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
LP-EF1000
|
LP-EF1500
|
LP-EF2000
|
|
Loading capacity
|
1ton
|
1.5ton
|
2ton
|
|
Load center distance
|
400mm
|
400mm
|
400mm
|
|
Fork size
|
1070mm
|
1070mm
|
1220mm
|
|
Max Lifting Height
|
2200mm
|
2200mm
|
2200mm
|
|
Traveling speed
|
4km/h
|
4km/h
|
4km/h
|
|
Minimum turning radius
|
1350mm
|
1450mm
|
1450mm
|
|
Front wheel
|
500-80 solid tires
|
500-80 solid tires
|
500-80 solid tires
|
|
Back wheel
|
300-60 solid tires
|
400-60 solid tires
|
400-60 solid tires
|
|
Drive motor power
|
2.2kw
|
2.5kw
|
3kw
|
|
Boost motor power
|
1.5kw
|
2.5kw
|
3kw
|
|
Ground clearance
|
130mm
|
130mm
|
130mm
|
|
Steering system
|
Hand shank
|
Hand shank
|
Hand shank
|
|
Battery
|
48V45A
|
48V52A
|
60V70A
|
|
Brake form
|
Electronic brake
|
Electronic brake
|
Electronic brake
|
|
Half slope start
|
yes
|
yes
|
yes
|
|
Antiskid function
|
yes
|
yes
|
yes
|
|
Parking function
|
yes
|
yes
|
yes
|
|
Slow power lift/fall walk/fall
|
yes
|
yes
|
yes
|
|
Dimension(without pedal 38cm)
|
1600*900*1750mm
|
1800*940*1750mm
|
1800*940*1750mm
|
|
Weight
|
1400kg
|
1600kg
|
1800kg
|
