Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yihai
-
Weight (KG):
-
50 KG
-
Configuration:
-
Portable split type
-
Product name:
-
Fiber Laser Metal marking Machine
-
Laser source:
-
Max Reci Raycus IPG
-
Motor:
-
Servo Motor
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Brand:
-
Yihai
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, others
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yihai
-
Weight (KG):
-
50 KG
-
Configuration:
-
Portable split type
-
Product name:
-
Fiber Laser Metal marking Machine
-
Laser source:
-
Max Reci Raycus IPG
-
Motor:
-
Servo Motor
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Brand:
-
Yihai
Product Paramenters
|
No
|
Item
|
Data
|
|
1
|
Laser power
|
20W/30W/50W
|
|
2
|
Working Area
|
20W 110*110mm (Default) or 70*70mm 150*150mm(Optional)
30W 150*150mm (Default) or 70*70mm 150*150mm 200*200mm(Optional)
50W 200*200mm (Default) or 110*110mm 150*150mm
300*300mm(Optional) |
|
3
|
Cooling Mode
|
Air Cooling
|
|
4
|
Laser Wavelength
|
10.64 um
|
|
5
|
Frequency of pulse
|
20-100 KHz
|
|
6
|
Marking Depth
|
≤0.3 mm
|
|
7
|
Marking Speed
|
≤7000 mm/s
|
|
8
|
Marking Lines
|
1-10 lines
|
|
9
|
Minimum Line Width
|
0.01 mm
|
|
10
|
Minimum Character
|
0.15 mm
|
|
11
|
Repeatability Accuracy
|
±0.002 mm
|
|
12
|
Resolution Ratio
|
0.1 mm
|
|
13
|
Operation System
|
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
|
|
14
|
Control Software
|
EZCAD ENGLISH Control Software
|
|
15
|
Operation Temperature
|
5°C-40°C
|
|
16
|
Relative Moisture
|
≤ 90%, no fog
|
|
17
|
Dimensions(L*W*H)
|
45 x 55 x 75 cm
|
|
18
|
Power supply requirements
|
220 V or 110V
|
|
19
|
Weight
|
35KG
|
|
20
|
Warranty
|
24 months
|
Product Description

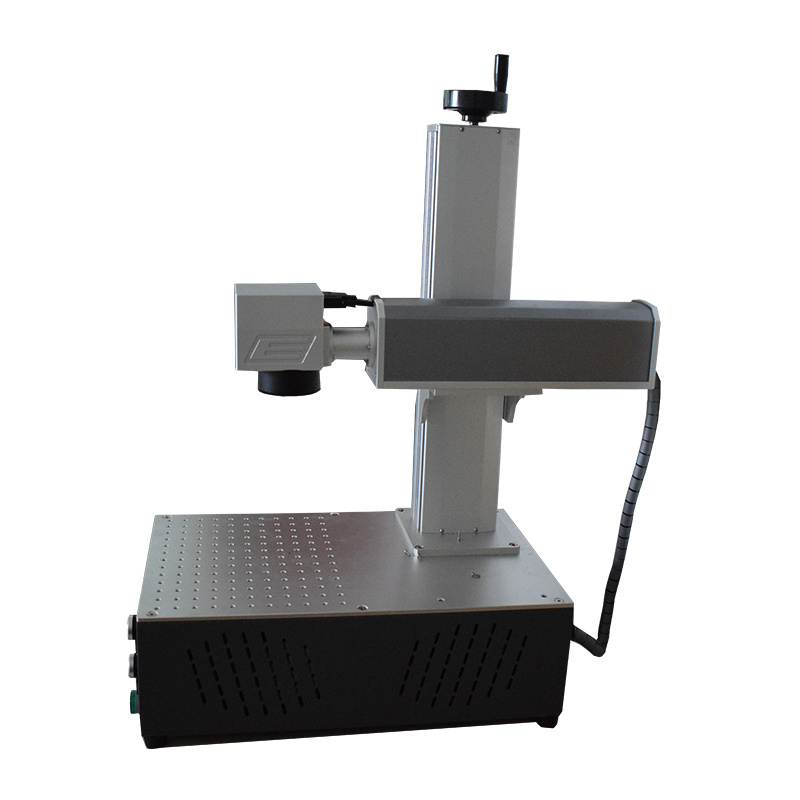

FIBER LASER MARKING MACHINE
Fiber laser marking machine refers to the marking machine that uses fiber lasers. Fiber lasers have the characteristics of small size (no water cooling device, use air cooling), good beam quality (basic mode), and maintenance-free.
It is mainly composed of three parts: laser, galvanometer and marking card. It uses fiber laser to produce laser marking machine. It has good beam quality. Its output center is 1064nm. The life of the whole machine is about 100,000 hours. Compared with other types of laser marking The machine has a longer life and the electro-optical conversion efficiency is more than 28%. Compared with the conversion efficiency of 2%-10% of other types of laser marking machines, it has a great advantage and has outstanding performance in energy saving and environmental protection.
Why Choose Us
Why choose our fiber laser marking machine?
1. With excellent beam quality and reliability,ensure the machine stability and high
quality.
2. Super high output power and photoelectric conversion(15 times higher than the
traditional fiber generator),ensure the high working efficiency
3. Compact and easy structure,make the machine operate so easier.
4. So long time life can up to 100000 hours, No wearing parts for the generator,and
need no any maintenance for life.
5. Modern structure makes the demand for cooling is greatly reduced,It is by air,very
convenient.
6. Super lower power consumption, about 5 times lower than the traditional fiber.
Sample and Application industry
Product composition
Our services and delivery
Pre-Sales Service
1) Inquiry and consulting support.
2) Sample testing support.
2) View our Factory
Guarantee & After Sales Service
1) 24 hours technical supported by email or calling.
2) Friendly English version manual and operation video CD disc.
