Quick Details
-
Color:
-
Red,Blue
-
Steering:
-
hydraulic steering
-
Engine:
-
4 cylinder
-
horse power:
-
55hp
-
PTO:
-
540/1000 or 760/1000 r/min
-
Drive wheel:
-
4X4
-
Gear box:
-
12+12
-
Clutch:
-
Single clutch, dual stage
Quick Details
-
Brand Name:
-
Chalion
-
Place of Origin:
-
Henan, China
-
Model:
-
QLN-554
-
Color:
-
Red,Blue
-
Steering:
-
hydraulic steering
-
Engine:
-
4 cylinder
-
horse power:
-
55hp
-
PTO:
-
540/1000 or 760/1000 r/min
-
Drive wheel:
-
4X4
-
Gear box:
-
12+12
-
Clutch:
-
Single clutch, dual stage

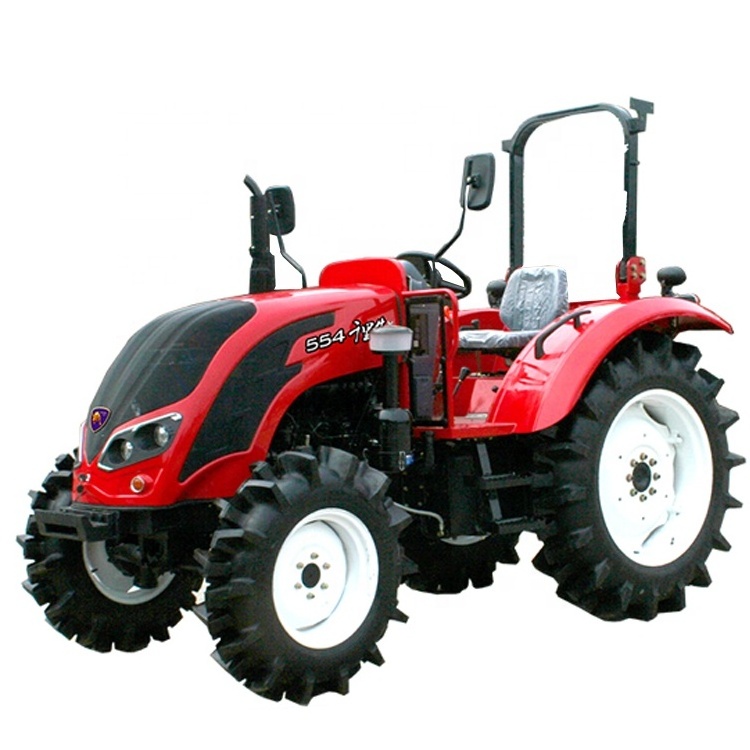

55hp farm tractor;554 wheel tractor, 4 wheel drive
1. 12+12shuttle type gear shifting
2. 80L large-capacity oil tank.
3.4 Wheel-drive
4. Sunvisor
5.Hydraulic power steering
6.Dual speed PTO(540/1000 or 760/1000 r/min)
7.Double stage clutch
8.Draft positional adjustable
9.Rearmounted three-point linkage
10. Domestic high-quality engines, such as Yuchai ,YTO.
Specification:
|
Model |
QLN554 |
||
|
Drive Type |
4×4 |
||
|
Maximum power of PTO(kW) |
38.4 |
||
|
Dimensions |
Length (including rear suspension)(mm) |
3980 |
|
|
Width(mm) |
1635 |
||
|
Height (to the top of muffler) (mm) |
2160 |
||
|
Wheelbase(mm) |
2040 |
||
|
Track |
Front wheel(mm) |
1400 |
|
|
Rear wheel(mm) |
1300(adjustable) |
||
|
Structure weight(kg) |
2190(without cab)/2390(with cab) |
||
|
Minimum operation weight(kg) |
2220(without cab)/2400(with cab) |
||
|
Minimum turning radius(mm) |
3800±300 |
||
|
Engine |
Model |
YCD4J11T-55 |
|
|
Type |
4 Cylinder,Vertical, water cooled, 4 stroke |
||
|
Cylinder diameter×stroke (mm) |
95×105 |
||
|
Rated power(kW) |
40.4 |
||
|
Rated rotary speed(r/min) |
2400 |
||
|
Transmission |
Clutch model |
dry double action clutch |
|
|
Differential lock |
closed,4 planetary gear |
||
|
Shift |
12F+12R |
||
|
Speed(Km/h) |
Forward |
2.46-32.73 |
|
|
Rear |
2.15—28.69 |
||
|
Hydraulic system |
Type |
partial separated |
|
|
Hydraulic output valve |
A pair or 2-pair (multi-way valve) |
||
|
System pressure(MPa) |
18 |
||
|
3-point suspension |
category II |
||
|
Function |
Load control, position control, load and position individual control |
||
|
Maximum lifting force at 610mm behind suspending point(KN) |
>10.2 |
||
|
Steering type |
Front wheel hydraulic steering |
||
|
PTO–Rear |
Specification |
Φ38×8 or Φ35×6 or Φ34.67×21 |
|
|
Rotary speed(r/min) |
540/1000 or 760/1000 |
||
|
Traction |
Rated traction force (KN) |
11.8 |
|
|
Type |
Swing link type |
||
|
Distance to the ground(mm) |
325 |
||
|
Tyre |
front wheel /rear wheel |
8.3-20/ 12.4/11-28(paddy wheel) |
|
|
Oil filling capacity |
Fuel tank(L) |
38 |
|
|
Oil sump tank(L) |
7 |
||
|
Hydraulic and steering oil(L) |
0.8 |
||
|
Oil for transmission system(L) |
20 |
||
Details
