Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
3270*1807*1970mm
-
Machine Weight:
-
3140 kg
-
Bucket capacity:
-
0.35-0.45m3
-
Rated load:
-
750kg
-
Breakout force:
-
18KN
-
Wheel base:
-
1027mm
Quick Details
-
Engine Brand:
-
imported
-
Power:
-
37 KW
-
Brand Name:
-
XCM G
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
3270*1807*1970mm
-
Machine Weight:
-
3140 kg
-
Bucket capacity:
-
0.35-0.45m3
-
Rated load:
-
750kg
-
Breakout force:
-
18KN
-
Wheel base:
-
1027mm

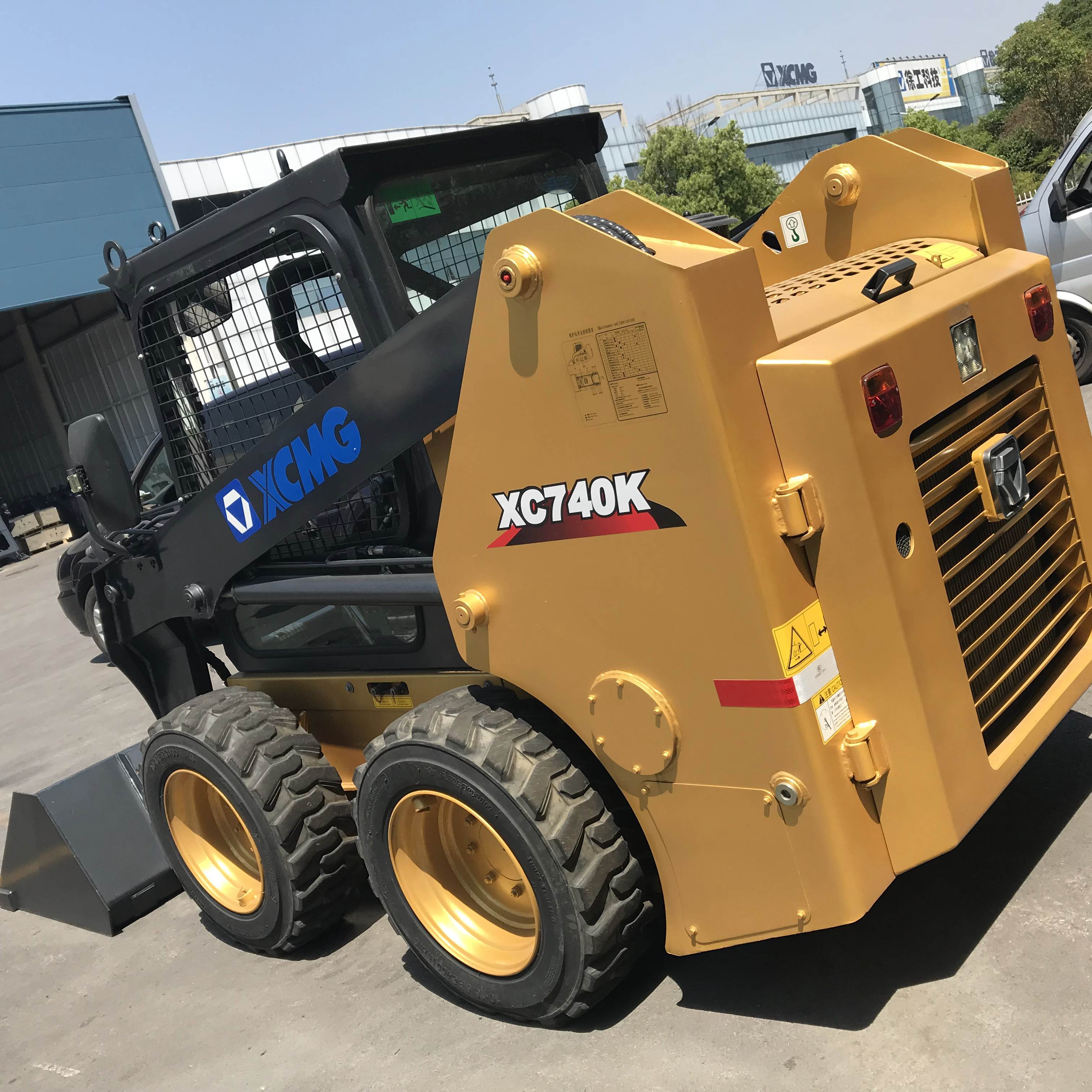

China brand XCM G XC740K new skid steer loader with rock saw attachment for sale low price
XC740K with strong power and rich attachments, the XCM G skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
1. Strong and Efficient Power Transmission System
The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.
2. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.
3. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
4. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
Description | Unit | Parameter value | |
Rated load | kg | 750 | |
Tipping load | kg | 1500 | |
Operating weight | kg | 3140 | |
Maximum breakout force | kN | 18 | |
Engine | Manufacturer | Xinchai | |
Model | 4D27G31 | ||
Rated power | Hp/kw | 49.3/36.8 | |
Rated speed | rpm | 2500 | |
Cooling mode | Water-cooling | ||
Performance parameter | Operation mode | Mechanical & multi-function electronic control | |
Tire standard | 10-16.5 | ||
Maximum speed | Km/h | 14 | |
Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
Optional large flow | -- | ||
Hydraulic pressure | bar | 200 | |
Maximum operating height | mm | 3878 | |
Bucket hinge pin height | mm | 3057 | |
Cabin top height | mm | 1960 | |
Maximum horizontal height of bucket bottom | mm | 2851 | |
Length without bucket | mm | 2533 | |
Length with bucket | mm | 3310 | |
Toppling angle | ° | 40 | |
Maximum unloading height | mm | 2375 | |
Ground-bucket angle | ° | 30 | |
Rotating angle of bucket at highest point | ° | 83 | |
Unloading distance | mm | 575 | |
Wheel base | mm | 1027 | |
Departure angle | ° | 25 | |
Ground clearance | mm | 183 | |
Front radius of turning circle (without bucket ) | mm | 1183 | |
Front radius of turning circle (with bucket) | mm | 2066 | |
Rear radius of turning circle | mm | 1564 | |
Length of tail | mm | 1005 | |
Wheel track | mm | 1380 | |
Tire edge width | mm | 1640 | |
Bucket edge width | mm | 1800 | |
Bucket capacity (stacking height) | m³ | 0.45 | |
Bucket capacity (tiling) | m³ | 0.35 | |
Diesel tank capacity | L | 80 | |
Capacity of hydraulic oil tank | L | 60 |
