Quick Details
-
Power (kW):
-
3.7
-
Weight (KG):
-
2700 KG
-
Product Name:
-

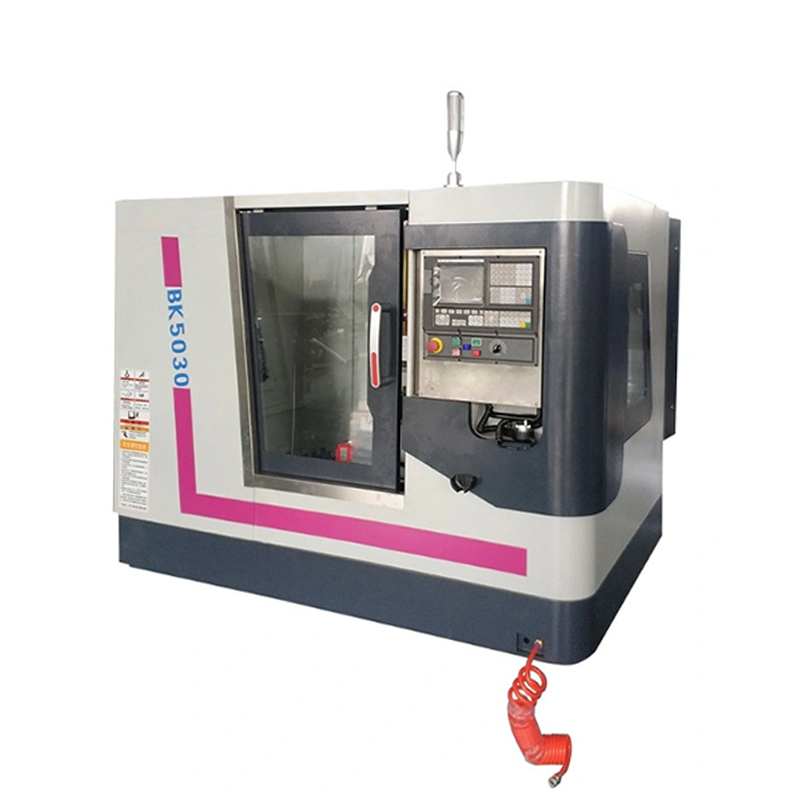

Vertical Slotting Machine
-
Model:
-
BK5030
-
Application:
-
Metal Cutting Slotter
-
Usage:
-
Shape Grooving
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*1500*2400mm
-
Power (kW):
-
3.7
-
Weight (KG):
-
2700 KG
-
Product Name:
-
Vertical Slotting Machine
-
Model:
-
BK5030
-
Application:
-
Metal Cutting Slotter
-
Usage:
-
Shape Grooving
Specification
The main performance characteristics:
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and
rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.
Application:
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and
other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and
rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.
Application:
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and
other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
|
Specifications
|
unit
|
BK5030
|
|
Max cutting length
|
mm
|
300
|
|
Ram adjust travel
|
mm
|
75
|
|
Number of ram movements
|
N/min
|
30-180
|
|
Worktable size
|
mm
|
550x405
|
|
Worktable travel (X/Y)
|
mm
|
280x330
|
|
Distance between blade support hole axis to column forearm
|
mm
|
505
|
|
Distance between worktable and lower end of carriage
|
mm
|
540
|
|
X axis motor torque
|
N.M
|
6
|
|
Y axis motor torque
|
N.M
|
6
|
|
X axis rapid traverse
|
M/min
|
5
|
|
X axis rapid traverse
|
M/min
|
5
|
|
Main motor power
|
Kw
|
3.7
|
|
Machine weight
|
kg
|
2700
|
|
Dimensions
|
Mm
|
2000*1500*2400
|
