Quick Details
-
Power interface:
-
1*DC12V power supply interface
-
RF Frequency:
-
7.5-65MHz
-
RF Output Level:
-
110±5dBuv
-
Transmission:
-
PHY Layer:600Mbps
-
Working Mode:
-
TDMA/CSMA
-
Network Management:
-
WEB, CLI, SNMP
-
Software Features:
-
VLAN, QOS, Bandwidth Control, Broadcast storm limitation
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL/OEM
-
Model Number:
-
EOS-204
-
Power interface:
-
1*DC12V power supply interface
-
RF Frequency:
-
7.5-65MHz
-
RF Output Level:
-
110±5dBuv
-
Transmission:
-
PHY Layer:600Mbps
-
Working Mode:
-
TDMA/CSMA
-
Network Management:
-
WEB, CLI, SNMP
-
Software Features:
-
VLAN, QOS, Bandwidth Control, Broadcast storm limitation

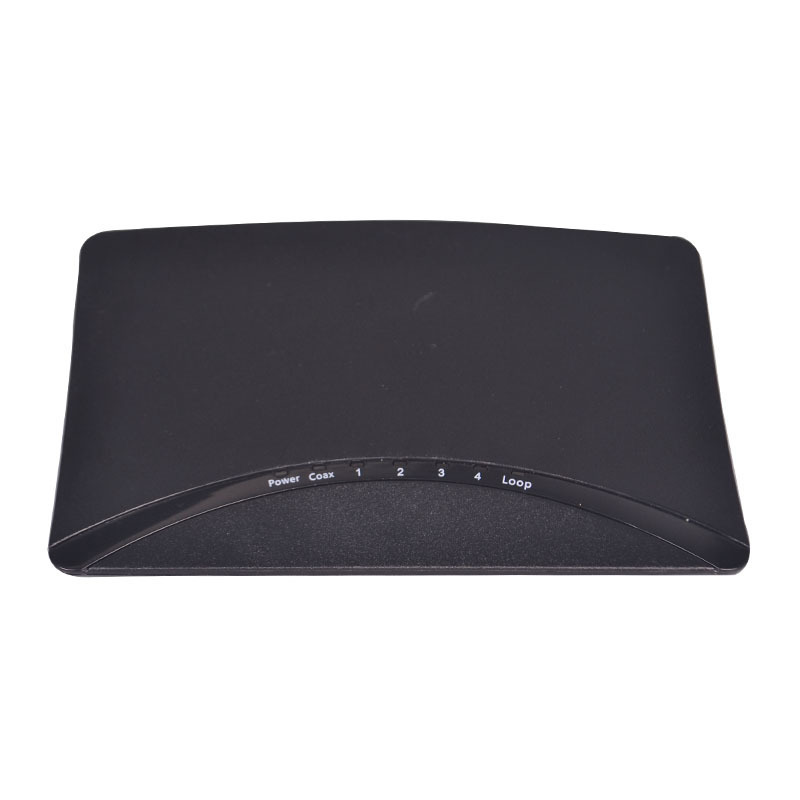

Sofel 4 Ports EOC Slave with CATV RF Ports without WiFi
Products Description

EOS-204 is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.
EOS-204 is based the Qualcomm chipset solution , with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The PHY Layer speed is 600Mbps,the MAC Layer throughput is up to 320Mpbs.
Features
Based on HomePlug AV solution and Qualcomm chipset
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps
Support data encryption
4 100M auto-negotiation Ethernet port
Support the isolation of slave under one master
Support Port-based VLAN and 802.1q VLAN
Support bandwidth limited
Support QOS configuration based on slave port or VLAN.
Support broadcast storm control.
Support data packages count
Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on.
Support WEB,CLI and SNMP management
Support on-line upgrading
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps
Support data encryption
4 100M auto-negotiation Ethernet port
Support the isolation of slave under one master
Support Port-based VLAN and 802.1q VLAN
Support bandwidth limited
Support QOS configuration based on slave port or VLAN.
Support broadcast storm control.
Support data packages count
Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on.
Support WEB,CLI and SNMP management
Support on-line upgrading
Specification
Item
|
Parameters
|
EOS-204
|
Interface & indicator
|

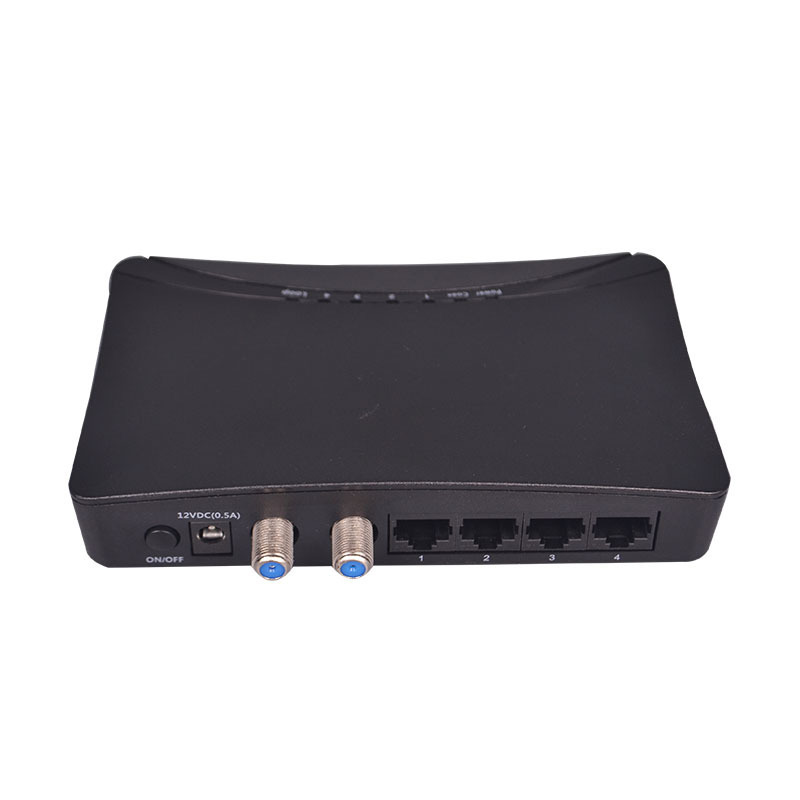

RF interface
|
1*TV(RF signal) OUTPUT, metric F connector
1*CABLE(MIX)INPUT, metric F connector |
|
Ethernet interface
|
4*10/100M auto-negotiation, RJ45
|
|
Power interface
|
1*DC12V power supply interface
|
|
LED indicators
|
1 x power indicator
1 x system indicator 1 x CABLE indicator LAN indicator(each Ethernet port has 1 indicator) |
Performance parameters
|
RF parameters
|
Frequency:7.5-65MHz
Output level:110±5dBuv |
|
|
Receive sensibility:45dBuv
Return loss:>15dB Output impedance:75Ω |
|
Transmission
|
PHY Layer:600Mbps
Throughput on MAC Layer:320Mbps |
|
Modulation Mode
|
OFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO |
|
Working Mode
|
TDMA/CSMA
|
|
Encryption Mode
|
AES-128
|
Standard
|
EOC Standard
|
IEEE P1901(Draft)
HomePlug AV |
|
Ethernet Standard
|
IEEE 802.3, IEEE 802.3x, IEEE 802.3u
IEEE802.1P, IEEE802.1Q |
Software
|
Network Management
|
WEB, CLI, SNMP
|
|
Software Features
|
VLAN, QOS, Bandwidth Control, Broadcast storm limitation
|
Physical Features
|
Power supply & Consumption
|
Power adapter:12VDC 0.5A
Power consumption:<5W |
|
Dimension
|
150*116*28mm
|
|
Weight
|
0.5kg
|
|
Environment Attribute
|
Work temperature:0~50℃
Stock temperature:-40~85℃ Work humidity:10%~90%, non-condensation Stock humidity:10%~90%, non-condensation |
