Golden Supplier Low prices Small Grain feed storage silos for grain used for pig farm for sale

Golden Supplier Low prices Small Grain feed storage silos for grain used for pig farm for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

≥3 Sets

US $540

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: Customized

Weight:: Customized

Product Name:: Small Grain feed storage silos for grain used for pig farm for sale

Thickness:: 1.2mm

Usage:: Poultry Feeder

Size:: 3T-30T

Package:: Assembled or unassembled

Delivery:: 7-10 Days

Application:: Poultry Farm Used Feed Storage

Quick Details

Core Components:: ALL

Place of Origin:: China

Brand Name:: BST

Dimension(L*W*H):: Customized

Weight:: Customized

Product Name:: Small Grain feed storage silos for grain used for pig farm for sale

Thickness:: 1.2mm

Usage:: Poultry Feeder

Size:: 3T-30T

Package:: Assembled or unassembled

Delivery:: 7-10 Days

Application:: Poultry Farm Used Feed Storage

Product Description

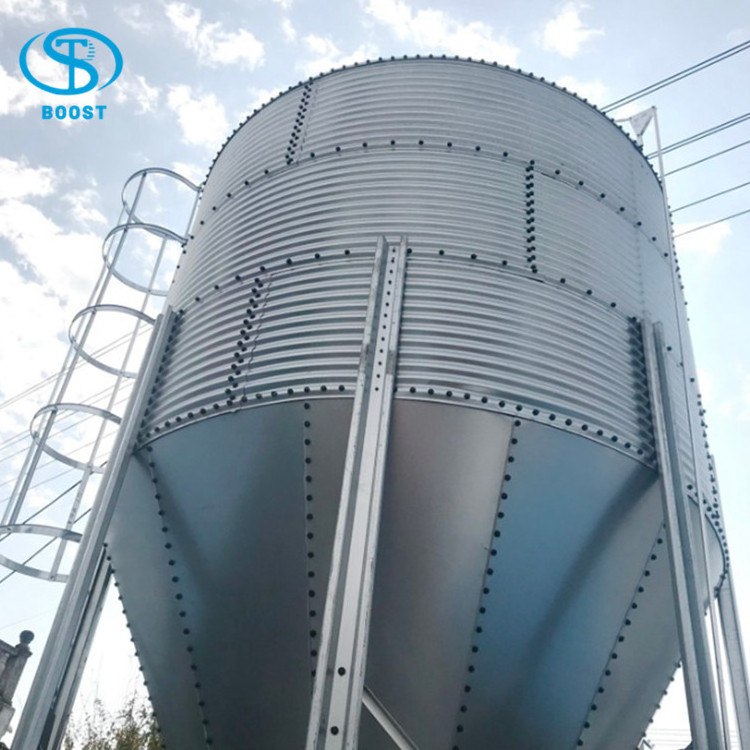

Golden Supplier Low prices Small Grain feed storage silos for grain used for pig farm for sale

How to choose Poultry feeder silo?

The Poultry Feeder silo has to be used for a long time, and it is placed outside, which has to bear 20-30 tons of feeding weight, Therefore the material must be resistant to high temperature, because low temperature is easier to guarantee feed quality .

It has to withstand hot and high-temperature weather, wind and rain for a long time. Therefore the Poultry Feeder silo must be highly resistant to corrosion and oxidation

Since it need bear the weight of 20-30 tons,Therefore tower material must be Hard and resilient.

Specification

Model	Diameter	Ton	Wall thickness	Height	Legs	Material
4.1m³	Φ1830	2.7T	1.0mm	3.8m	4pcs	275g hot dip galvanizing
6.5m³	Φ1830	4.2T	1.0mm	4.7m	4pcs	275g hot dip galvanizing
8.9m³	Φ1830	5.8T	1.0mm	5.6m	4pcs	275g hot dip galvanizing
11.3m³	Φ1830	7.3T	1.0mm	6.5m	4pcs	275g hot dip galvanizing
11.6m³	Φ2750	7.5T	1.0mm	4.9m	6pcs	275g hot dip galvanizing
17m³	Φ2750	11T	1.0mm	5.8m	6pcs	275g hot dip galvanizing
22.4m³	Φ2750	14T	1.0mm	6.7m	6pcs	275g hot dip galvanizing
27.8m³	Φ2750	18T	1.0mm	7.6m	6pcs	275g hot dip galvanizing
23.5m³	Φ3670	15T	1.2mm	5.8m	8pcs	275g hot dip galvanizing
33m³	Φ3670	21.5T	1.2mm	6.7m	8pcs	275g hot dip galvanizing
42.5m³	Φ3670	27.5T	1.2mm	7.6m	8pcs	275g hot dip galvanizing
52m³	Φ3670	33.5T	1.2mm	8.5m	8pcs	275g hot dip galvanizing

Performance Characteristic

Wallboard for Poultry feeder silo

1.it is made of steel with tension up to 55000,With electroplating coating treatment,275g Zinc coating.which increase the strength and service life.

2.The corrugated steel can ensure accurate and consistent match during installation.

3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.

Top Movable Poultry Silo cover system:

1.It adopts a Top movable Silo cover system, which can open, close and block the silo when workers stand on the ground.

2. Limit bolts are used to ensure that the movable Silo cover can be opened freely within 180 degrees.

Edge of Poultry Silo top

1.According to the actual situation, the edge of the Silo top will be designed differently.

2. The edge of the Silo bottom is formed by curling,which can keep the rainwater away from the funnel and the lower discharge pipe area, which can provide all-weather protection without being affected. .

40 degree Poultry silo top

40 degree top provides greater strength and capacity.

Poultry Silo side ladder:

1.A strong ladder will be matched for each poultry silo.

2.Each ladder body is molded from a whole piece of galvanized steel plate, which has the advantages of high strength, good stability, and easy and fast installation. 3.There are small concave holes on the rungs of the ladder to prevent slipping.

The hopper at the bottom of the Silo

According to the angle of inclination, the hopper at the bottom of the Silo can be divided into three types: 45 degrees for dry feed conveying, 60 degrees for smooth flowing grain conveying, and 4

Application
