- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GDZ80-2.2KW
-
Type:
-
spindle motor, GDZ80-2.2KW woodworking spindle
-
Frequency:
-
50/60HZ, 400Hz
-
Name:
-
woodworking spindle
-
Cooling type:
-
Water Cooling machine tool spindle
-
Voltage:
-
220V/380v
-
Speed:
-
24000 rpm
-
Collet:
-
ER20
-
Diameter:
-
80 mm
-
Shape:
-
Round
-
Driven:
-
VFD
Quick Details
-
AC Voltage:
-
220V/380V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
GDZ80-2.2KW
-
Type:
-
spindle motor, GDZ80-2.2KW woodworking spindle
-
Frequency:
-
50/60HZ, 400Hz
-
Name:
-
woodworking spindle
-
Cooling type:
-
Water Cooling machine tool spindle
-
Voltage:
-
220V/380v
-
Speed:
-
24000 rpm
-
Collet:
-
ER20
-
Diameter:
-
80 mm
-
Shape:
-
Round
-
Driven:
-
VFD
cnc router spindle motor 2.2kw water cooled
woodworking spindle
Product Description
GDZ80-2.2KW
woodworking spindle

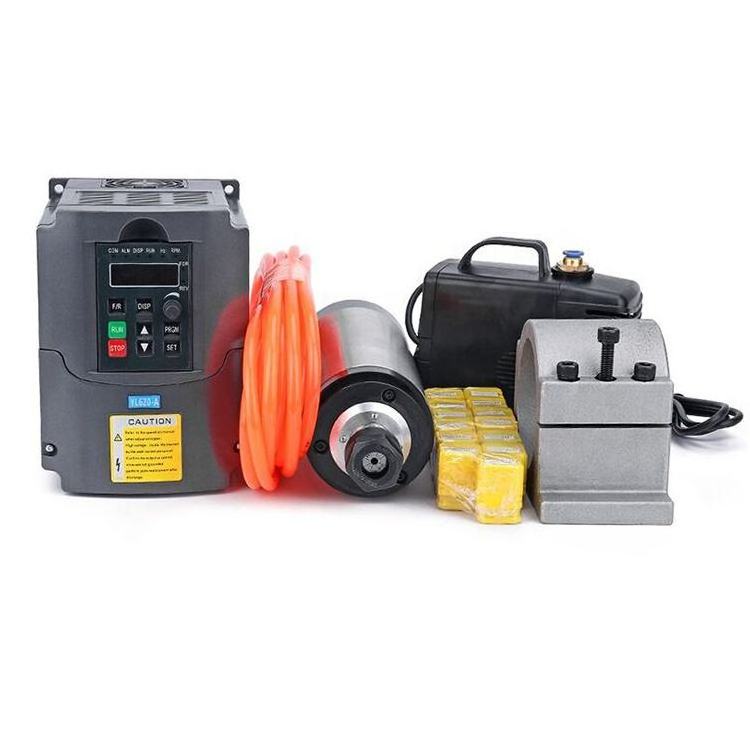

packing list:
1. 2.2kw water cooled spindle motor; 24000rpm; diameter 80mm
2. 2.2kw frequency inveter
2. ER20 Collet whole set ( 1-10mm ; 10 pieces)
3. 80w Water pump
4. spindle holder
NOTE: Each part can also be bought separately
Specification
|
Model
|
Speed
|
Power
|
Voltage
|
Current
|
Frequancy
|
Diameter
|
Collect
|
Weight
|
|
GDZ-80-2.2B
|
24000rpm
|
2.2kw
|
220v/380v
|
8A/5A
|
400HZ
|
Φ80mm
|
ER20
|
5kg
|
|
GDZ-85-2.2
|
24000rpm
|
2.2kw
|
380v
|
7.5A
|
400HZ
|
Φ85mm
|
ER20
|
13kg
|
How to choose the right spindle motor？
1. Water cooling or air cooling
2. Power and Speed
3. Voltage (380v or 220v) and Frequency
4. Automatic tool change or manual tool change
5. Collet ( ER11, ER16, ER20, ER25 ...)
Product Details
Packing&Shipping
Packing Method :
1.Outer packing: Standard export carton
2.Inner packing: Plastic bags with foam for products
Shipment Method:
UPS/DHL/TNT/EMS/Fedex /By sea etc. Other shiping method are also available if needed.
1.Outer packing: Standard export carton
2.Inner packing: Plastic bags with foam for products
Shipment Method:
UPS/DHL/TNT/EMS/Fedex /By sea etc. Other shiping method are also available if needed.
