Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AMX
-
Voltage:
-
220~240V
-
Item Name:
-

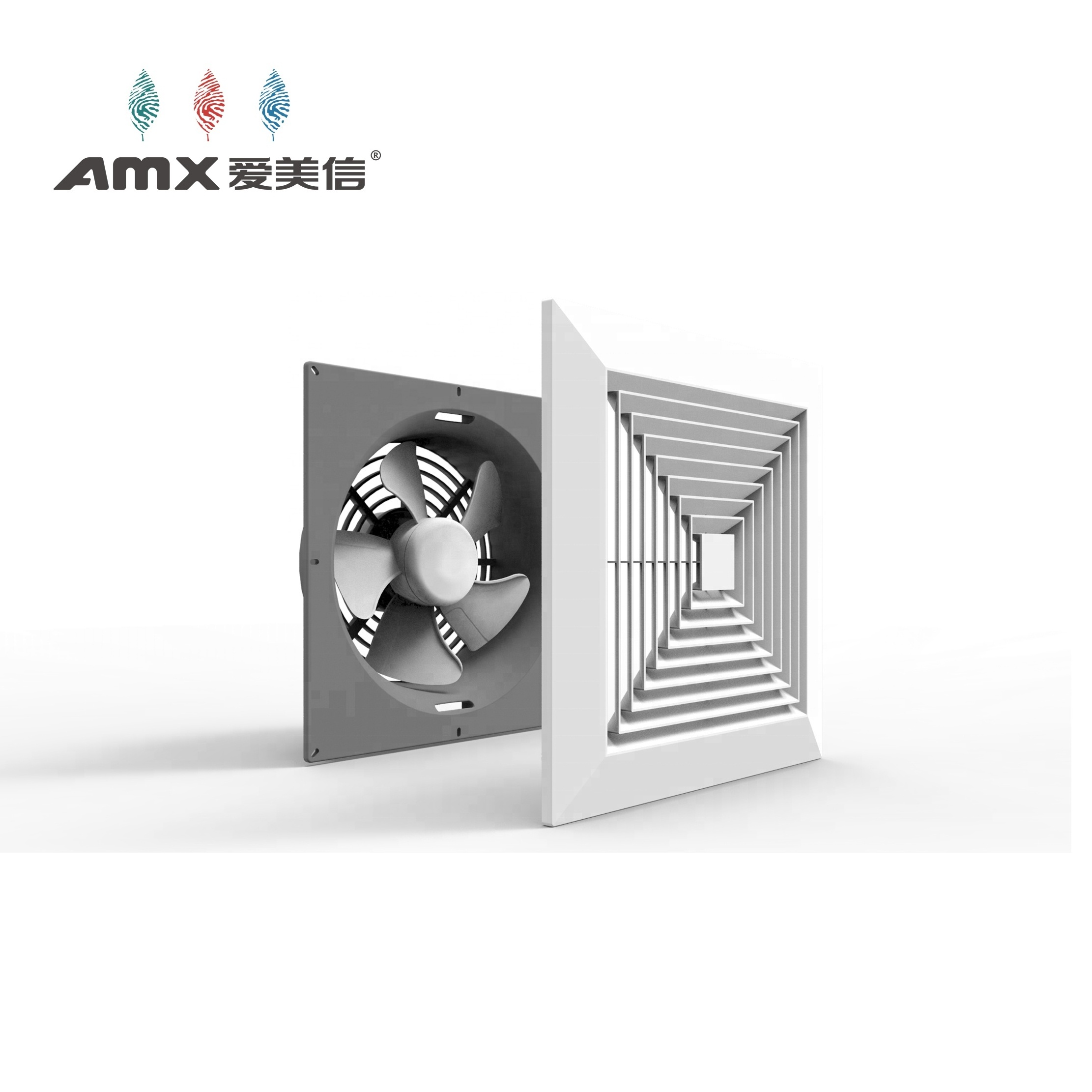

Direct Exhaust Ceiling Mounted Plastic Ventilation Fan
-
Motor:
-
Ball Bearing Motor
-
Motor Type:
-
AC
-
Duct Size:
-
6 8 10 12 Inch
-
Noise:
-
39~46 db
-
Impeller Diameter:
-
195/ 220/ 250/ 300 mm
-
Frame Size:
-
210*210 mm
-
Applicable Area:
-
12~96 ㎡
-
Net Weight:
-
1.6~2.8 kg
-
Apllications:
-
Hotel/School/Residence/Office and so on
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Mounting:
-
Ceiling Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
China
-
Brand Name:
-
AMX
-
Voltage:
-
220~240V
-
Item Name:
-
Direct Exhaust Ceiling Mounted Plastic Ventilation Fan
-
Motor:
-
Ball Bearing Motor
-
Motor Type:
-
AC
-
Duct Size:
-
6 8 10 12 Inch
-
Noise:
-
39~46 db
-
Impeller Diameter:
-
195/ 220/ 250/ 300 mm
-
Frame Size:
-
210*210 mm
-
Applicable Area:
-
12~96 ㎡
-
Net Weight:
-
1.6~2.8 kg
-
Apllications:
-
Hotel/School/Residence/Office and so on
High quality ventilation products for optimal air duct design, motor with high-efficiency & long life ball bearing , optimized efficiency; suitable for continuous ventilation.
Appliction: ventilation for hotels, shopping malls, places of entertainment and buildings.
|
Model (No.) |
Voltage (v) |
Frequency (Hz) |
Power (w) |
Volume (m3/h) |
Impeller Size (Pa) |
Noise (dB) |
Hole Size Φ(mm) |
Mask Size (mm) |
Net Weight (kg) |
|
APT15-S |
220-240 |
50-60 |
24 | 300 | 150 | 39 | 240*240 | 298*298 | 1.6 |
|
APT20-S |
220-240 |
50-60 |
28 | 550 | 200 | 41 | 270*270 | 325*325 | 1.8 |
|
APT25-S |
220-240 |
50-60 |
36 | 900 | 250 | 42 | 320*320 | 366*366 | 2.0 |
|
APT30-S |
220-240 |
50-60 |
48 | 1200 | 300 | 46 | 385*385 | 436*436 | 2.5 |
Founded in 1996, Foshan Nanhai Popula Fan Co.Ltd has been headquartered in Nanhai District for more than 20 years. Centralized in R&D, production, sales and service, it has been a high-tech and comprehensive enterprise which is integrated in environmental protection and ventilation equipment in the field of industrial fans.
Its factory covers 115,000 square meters while standard workshops covers 100,000 square meters with more than 1300 staff. Many of its products have successively passed ISO9001: 2008 international quality system certifications. CCC.CE, SASO.QS, fire safety certification. And it even has acquired 10 invention or utility model patents at home and abroad. After years of running, it creates a subsidiary corporation--Guangdong AMX Electric Appliances Co.., Ltd., which specializes in Misting Fan, Ventilation Fan, and Fresh Air system production. Nowadays, many of these both companies’ high quality products have been exporting more than 70 countries and regions around the world and have won a lot of customers’ heart in domestic and oversea.
