Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BnStar
-
Model Number:
-
Bnstar
-

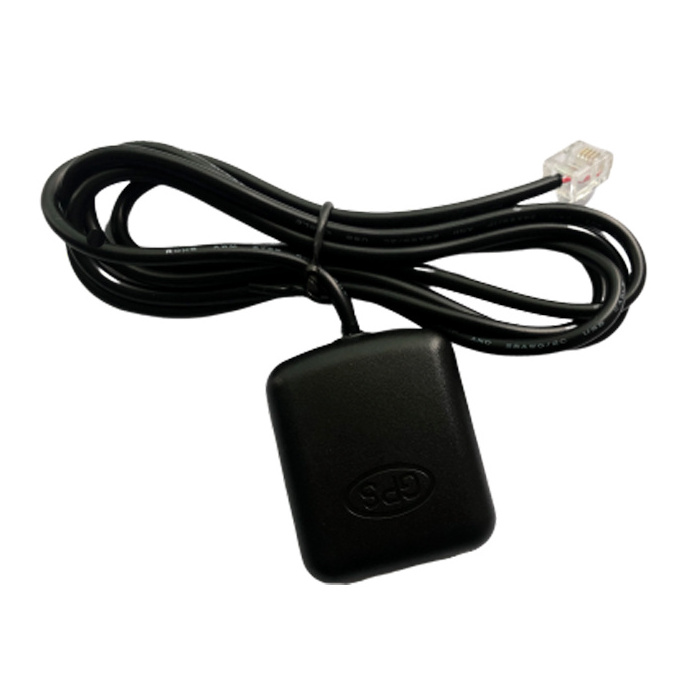

Product name:
-
gps receiver
-
Size:
-
45mm*38mm*13.5mm
-
Connector:
-
RJ11 Crystal
-
Chip:
-
Ubx 8030
-
Receiving mode:
-
GPS,GLONASS,BeiDou,GaliLco,QZSS and SBAS
-
Antenna:
-
Built-in active antenna
-
Output port:
-
custom
Quick Details
-
Resolution:
-
1920*1080
-
Function:
-
CarPlay, gps real time tracking
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BnStar
-
Model Number:
-
Bnstar
-
Product name:
-
gps receiver
-
Size:
-
45mm*38mm*13.5mm
-
Connector:
-
RJ11 Crystal
-
Chip:
-
Ubx 8030
-
Receiving mode:
-
GPS,GLONASS,BeiDou,GaliLco,QZSS and SBAS
-
Antenna:
-
Built-in active antenna
-
Output port:
-
custom
This product GPS receiver GPS module GPS antenna can be customized according to customer requirements, we can make it straight head, elbow style, 4PIN connector etc.
Please contact sales befor order! Thank you!
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Build on high performance, low-power u-blox UBX-M8030 chip set
Ultra high sensitivity: -166dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption:Max25mA 3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.0V--5.0V
Operating temperature range:-40to85℃
Patch Antenna Size: 25x25x4mm
Small form factor: 45x38x13.5mm
Communication type: UART rs232 protocol
Wire interface type: Audio head 3Pin, L=150cm
RoHS compliant (Lead-free)
|
Spec
|
Instructions
|
|
|
|
Spec of Chip
|
Chip
|
UBLOX-8130
|
|
|
|
Receiving mode
|
GPS,GLONASS,BeiDou,GaliLco,QZSS and SBAS
|
|
|
|
Frequency
|
GPS/QZSS L1 C/A,GLONASS L10F,BeiDou B1
|
|
|
|
Channels
|
56-Channels
|
|
|
Sensitivity
|
Tracking
|
-166dBm
|
|
|
|
Reacquisition
|
-160dBm
|
|
|
|
Cold start
|
-148dBm
|
|
|
|
Hot start
|
-157dBm
|
|
|
Accuracy
|
Horizontal accuracy
|
2.5m CEP
|
|
|
|
Velocity
|
0.1m/s 95%(SAoff)
|
|
|
|
Timing
|
1us
|
|
|
|
Cold start
|
26S
|
|
|
|
Warm start
|
2s
|
|
|
|
Hot start
|
1S
|
|
|
|
Baud rate
|
Default 9600
|
|
|
|
Output level
|
UART rs232 protocol
|
|
|
|
Output protocol
|
NMEA-0183 protocol
|
|
|
|
Single GNSS
|
Up to 10Hz
|
|
|
|
Standard GNSS
|
Default 1Hz
|
|
|
Work Limit
|
Altitude
|
50000m Max
|
|
|
|
Velocity
|
515m/s
|
|
|
|
Gravitational Acceleration
|
4g Max
|
|
|
|
Voltage
|
5.0V
|
|
|
|
Current
|
Normal 70mA 5.0V
|
|
|
Physical Parameters
|
Size
|
48mm*35mm*13.5
|
|
|
|
Weight
|
100g
|
|
|
|
Wire length
|
1.5m-3m(Custom)
|
|
|
|
Connector
|
usb connector
|
|
|
Antenna
|
Antenna
|
Built in antenna
|
|
|
Output Protocol
|
Default Protocol
|
GPRMC,GPVTG,GPGGA,GPGSA,GPGSV,GPGLL
|
|
|
|
Operating temperature
|
-40℃ to +85℃
|
|
|
|
Storage temperature
|
-40℃ to +125℃
|
|
GPS Receiver/GPS Module
GPS Tracker
RF Cable
RF Component
With 10 years of gps industry experience along with excellent quality, advanced services and competitive prices, Bainianxing has won numerous customers' trust and support.
3000㎡ dust-free workshop, brand new high-precision equipment, fully automated production line, ISO9001, ISO14001 environmental management system certification.
With the most advanced Fuji NXT3 machine and JUKI K-RS1/3010/3020vam SMT high-speed module patch production line, each line can support 70,000 points per hour.
GPS PCB Assembly
Professional Quality Checking
Founded in 2009, Newstar is a professional PCBA manufacturer with over 10 years experience, specializing in GPS Products, PCBA R&D, SMT and DIP. With 3000㎡ dust-free own workshop, experienced engineers and advanced precisionmachine FUJI/JUKI, Newstar is confident providing high quality service and products.
Packing
*Common Packing
*Can be custom according to request
Delivery
*DHL/Fedex/TNT/SF Express and other express company
*For small orders, lead time is 3-5days
*Are your a trading company or manufacturer?
-------We are manufacturer of gps related product, and we offer pcb assembly service.
*How many people in your company?
-------About 50.
*Do you support OEM?
-------Yes, we offer high quality oem service.
