Medical Digital Gynecologic Examination Colposcope HD Video Vaginal Camera for Gynecology Vagina Endoscope

Medical Digital Gynecologic Examination Colposcope HD Video Vaginal Camera for Gynecology Vagina Endoscope

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: LUCKMED

Model Number:: LM-YDJ-II

Properties:: Gynecologic Examination

Observation angle:: 45°tilted

Magnification of eyepiece:: 16X

Diopter:: ±5D

Magnification changer:: 0.4X, 0.66X, 1X, 1.5X, 2.5X

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Place of Origin:: China

Brand Name:: LUCKMED

Model Number:: LM-YDJ-II

Properties:: Gynecologic Examination

Observation angle:: 45°tilted

Magnification of eyepiece:: 16X

Diopter:: ±5D

Magnification changer:: 0.4X, 0.66X, 1X, 1.5X, 2.5X

Product Description

YDJ-II Colposcope:

Observation angle: 45° tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter: Build-in green & blue filters
Floor stand: Short column fitted on the five-star base with casters
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Optional accessories: Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), SLR camera adapter, Monitor (S24R352FHC, S24F350FHC), Objective (F=230mm & F=280mm), Monitor mount (FE110G, FE111G, GM112G, GM112B, GM112W)

YDJ-II-1 Colposcope:

Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 60mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter: Build-in green & blue filters
Floor stand: Column height adjustable fitted on the 5-jaws round base with casters
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Optional accessories: Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), SLR camera adapter, Monitor (S24R352FHC, S24F350FHC), Objective (F=230mm & F=280mm)

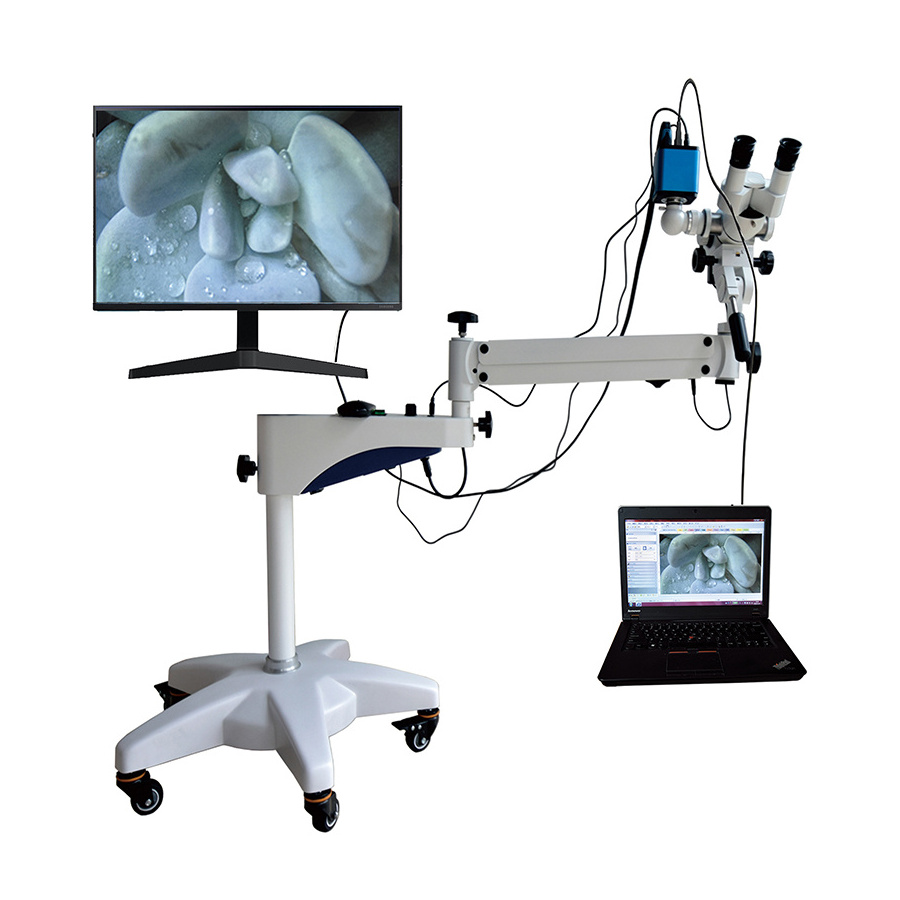

YDJ-FHD Video Colposcope:

FHD Camera: Sony 1/2.8” Exmor R CMOS
Max. resolution: 1920*1080P
Focal length of objective: F=300mm
Total magnification: 3X-36X Zoom
Working distance: 200mm-350mm
Focusing mode: Auto and manual
Video output interface: HDMI
Menu: focusing, white balance, exposure, color, ICR etc
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>10000lx
Filter: Build-in green filter
Power supply input: AC100V-240V/50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Mobile floor stand: With hanging arm (height 160cm, max. extension 115cm), the hanging arm is adjustable for height
Microscope height adjustment range: 76cm-130mm
Optional accessories: Monitor (S24R352FHC, S24F350FHC), Monitor mount GM112B, Video capture HDMI to USB3.0, Colposcope image capturing and reporting soft

YDJ-Z Colposcope:

Observation angle: 45°tilted
Magnification of eyepiece: 10X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Zoom Magnification changer: 0.4X-2.75X
Total Magnification: 2.4X-16X
Linear field: 80mm-13mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter: Build-in green & blue filters
Floor stand: Short column fitted on the five-star base with casters
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Optional accessories: Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA,XCAM1080PHD, XFCAM1080PHD, WUCAM0720PA, FHD2100, HD200),
SLR camera adapter, Monitor (S24R352FHC, S24F350FHC), Objective (F=230mm & F=280mm), Monitor mount (FE110G, FE111G, GM112G, GM112B, GM112W)
