- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MWLED
-
Model Number:
-
LS5050-RGB60WS2812
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-15 - 65
-
Product Weight（kg）:
-
0.1
-
Color:
-
Color Changing
-
Product Name:
-
SMD5050 WS2812B
-
LED Quantity:
-
60 LEDs/m
-
Warranty:
-
3years
-
PCB Color:
-
White/Black
-
LED QTY:
-
30/60/74/144
-
Voltage:
-
5V DC
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Voice control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MWLED
-
Model Number:
-
LS5050-RGB60WS2812
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-15 - 65
-
Product Weight（kg）:
-
0.1
-
Color:
-
Color Changing
-
Product Name:
-
SMD5050 WS2812B
-
LED Quantity:
-
60 LEDs/m
-
Warranty:
-
3years
-
PCB Color:
-
White/Black
-
LED QTY:
-
30/60/74/144
-
Voltage:
-
5V DC

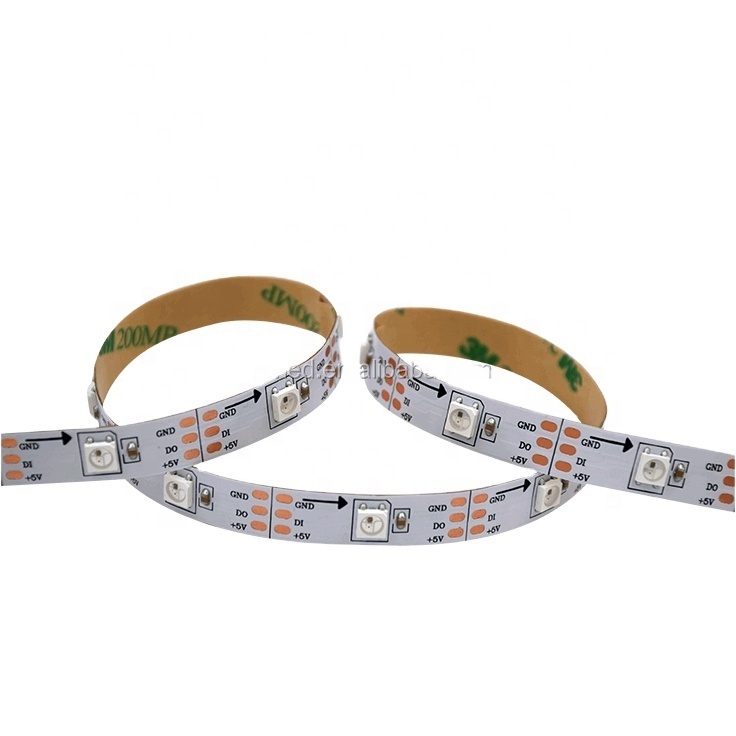

Led Reel Ring Rope Tape Light Aluminum Dmx Rgb Bar Ip68 30 60 M Ws2812B Led Strip 5V
Input voltage: DC5v;
Power: 30leds/m----9watt/meter
60leds/m----18watt/meter
74leds/m----22watt/meter
96leds/m----28.8watt/meter
100leds/m----30watt/meter
144leds/m----43.2watt/meter
LED resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC drives 1 led chip);
Pixels: 30/60/74/96/100/144/meter;
Grey scale: 256;
Bits/color: 8-bits/color;
FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
100leds/m----10mm
144leds/m----12mm
FPC color: BLACK/White
Protection rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating
IP67 Waterproof in Silicone Tube
Colors: Full color RGB, dream color changing;
Cuttable: Every LED is cuttable;
Package: In anti-static bag,IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)
Each strip with one free male connector for connector
|
Type Of LED |
SMD 5050/WS2812B |
| Dimension | 5000*10mm |
| LED quantity | 60LEDs/meter |
| Power | 18W/m |
| CRI | Ra>80, Ra>90 |
| Color | White , Red, Green ,Blue, |
| Voltage | DC5V |
| FPCB width | 10mm |
| Waterproof Grade | IP20/IP65/IP67 |
| Working Life | ≥50000 hrs |
| FPCB Thickness | 0.25mm |
| PCB Color | White, black, |
| Package Size | 5 meters/ roll,50 meters /ctn |
| Operating Temperature | -20~ + 60°C |
| Application | Outdoor decoration,outdoor lighting,indoor decoration |
Package:
What is the difference between IP65, IP67 & IP68?
The differences between commonly sold IP65, IP67, & IP68 strips are slight, but very important. Using the above chart as a guide, we can see that all strips are protected at the highest level from solids and dust. The variations come with the protection against liquids.
IP65 = Water resistant. “Protected against water jets from any angle” *Do NOT submerge IP65 LED lights, these are not waterproof.
IP67 = Water resistant plus. “Protected against the events of temporary submersion (10 minutes)”*Do NOT submerge IP67 LED lights for extended periods, these are not waterproof.
IP68 = Waterproof “Protected against the events of permanent submersion up to 3 meters”
Packing info: one roll in a anti-static bag
Conton size: 52*27*25cm
Qty: 80 bags for ip20
Gross weight: 7.5kgs
