Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Weight (KG):
-
6.8 KG
-
Keywords:
-
Deep Engraving
-
Product name:
-
Fiber Optical Laser Marking Machine
Quick Details
-
Working Accuracy:
-
0.01MM
-
Graphic Format Supported:
-
PLT, DXF, BMP, DXP, HPGL JPEG
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Weight (KG):
-
6.8 KG
-
Keywords:
-
Deep Engraving
-
Product name:
-
Fiber Optical Laser Marking Machine
Product Overview
FEATURES AT A GLANCE

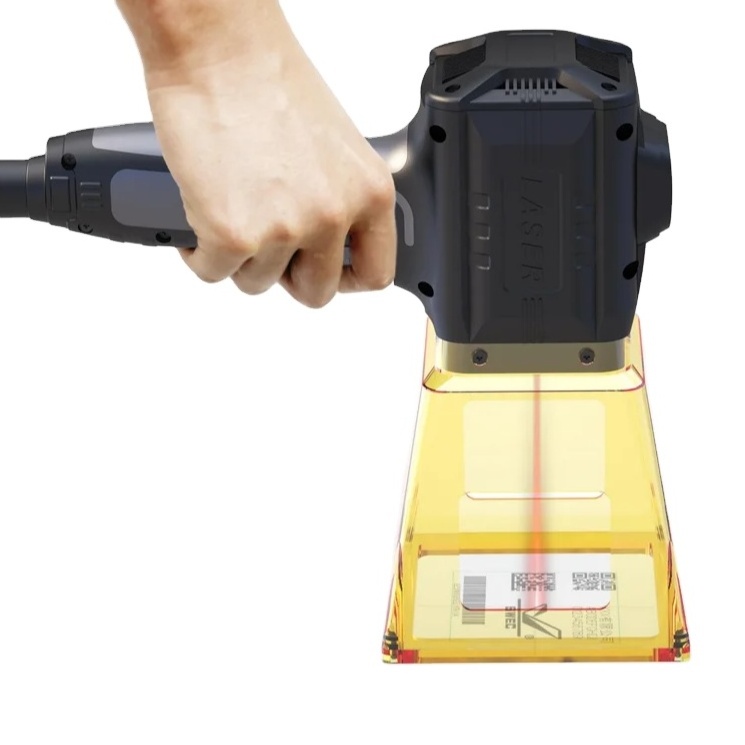

Handheld laser marking machine, designed to solve a variety of marking difficulties. Utilizing advanced laser technology. Realize fast focusing and high precision marking. Highly integrated design, compact and lightweight body, removable battery design, unlimited battery life, improve work efficiency.
Removable battery design, can be unlimited endurance, improve work efficiency. The handheld laser marking machine has a wider range of use, higher flexibility, and can meet the daily needs of customers.
It is more flexible and can meet the daily needs of customers.
Infrared positioning
Precision marking
Lightweight design
Flexible use
8 inch screen with one click
EFFECT DISPLAY
PRODUCT SPECIFICATIONS
|
Technical parameters
|
|
|
|
Output power
|
8W 20W 25W 30W
|
|
|
Marking range
|
70x70MM 100X100MM(Optional)
|
|
|
Laser wavelength
|
1064mm
|
|
|
Fousing lens
|
130mm
|
|
|
Marking speed
|
≤7000mm/s
|
|
|
Operating system
|
Linux system
|
|
|
Marking line type
|
Lattice and Vector
|
|
|
Line width
|
0.03mm
|
|
|
Repeated positioning accuracy
|
0.01mm
|
|
|
Locate mode
|
Red light positioning and focusing
|
|
|
Document format
|
BMP、DXF、HPGL、JPEG、PLT
|
|
|
Bar code type
|
CODE39、CODE128、CODE126、QR
|
|
|
Power supply
|
110V/220V AC、锂电(216wh)
|
|
|
Overrall power consumption
|
145-250W
|
|
|
Machien operating temperature
|
0-40°
|
|
|
Weight
|
6.8KGS
|
|
Packing &Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
