Quick Details
-
Warranty(Year):
-
5 years
-
Color Temperature(CCT):
-
2700k-6500k
-
Product Weight（kg）:
-
16.5
-
Input Voltage(V):
-
AC 200-240V 50/60HZ
-
Lamp Luminous Flux(lm):
-
80-85LM/W±10%, Customized 100LM/W or >100LM/W
-
Model Number:
-
FT-DLT11-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fitlight
-
Product name:
-

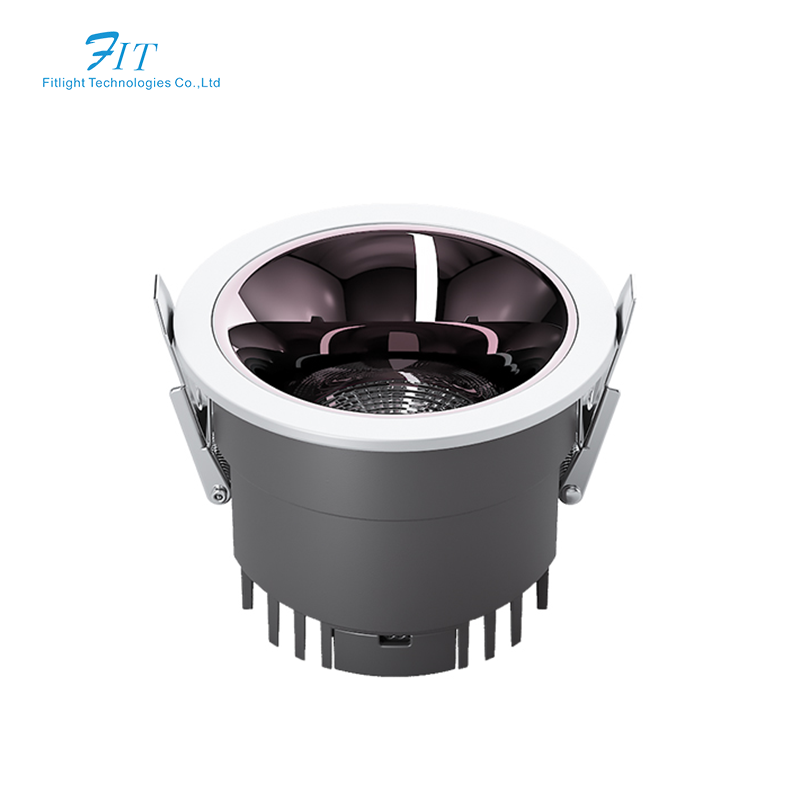

LED Recessed Down Light
-
Power:
-
7W 10W 12W 15W 20W 25W 30W 35W 40W 45W 50W 55W
-
Cut out:
-
55mm/75mm/95mm/115mm/145mm/170mm/200mm
-
Beam Angle:
-
15°/24°/36°/55°
-
Key Feature 1:
-
Anti Glare Downlight
-
Key Feature 2:
-
Dimmable/TRI-CCT Optional Cob Led Downlight
-
UGR:
-
<19
-
Working Temperature(℃):
-
-25 - 50
-
Installation:
-
Recessed/Embeded
-
Certification:
-
CE,EMC,LVD,CB,SAA
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5 years
-
Color Temperature(CCT):
-
2700k-6500k
-
Product Weight（kg）:
-
16.5
-
Input Voltage(V):
-
AC 200-240V 50/60HZ
-
Lamp Luminous Flux(lm):
-
80-85LM/W±10%, Customized 100LM/W or >100LM/W
-
Model Number:
-
FT-DLT11-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fitlight
-
Product name:
-
LED Recessed Down Light
-
Power:
-
7W 10W 12W 15W 20W 25W 30W 35W 40W 45W 50W 55W
-
Cut out:
-
55mm/75mm/95mm/115mm/145mm/170mm/200mm
-
Beam Angle:
-
15°/24°/36°/55°
-
Key Feature 1:
-
Anti Glare Downlight
-
Key Feature 2:
-
Dimmable/TRI-CCT Optional Cob Led Downlight
-
UGR:
-
<19
-
Working Temperature(℃):
-
-25 - 50
-
Installation:
-
Recessed/Embeded
-
Certification:
-
CE,EMC,LVD,CB,SAA
Dimmable Ultra Thin Surface Led Light Panel 7w 10w 12w 15w Lights Commercial Lighting Fixture 100-277v Retrofit Downlights
WHY CHOOSE US：
1.
13+Years Development time.
With more than 200 workers.
2.
100+Serving the country
3.
3000+㎡ Factory space
4.
10000pcs Daily production capacity
5.
OEM&ODM manufacturer.
Our R&D team with more 20 years'experience on this business.
6. Free Laser Logo on Product. Customize Packaging.
6.
Free Samples! (Welcome To Send Enquiry Contact Consultation And Check Our Sample Policy)
Products Description
|
Brand Name
|
Fitlight
|
|
Product Name
|
Dimmable Ultra Thin Surface Led Light Panel 7w 10w 12w 15w Lights Commercial Lighting Fixture 100-277v Retrofit Downlights
|
|
Item Type
|
Recessed Led Downlight
|
|
Power
|
7W /10W /12W/ 15W /20W /25W/ 30W /35W /40W /45W/ 50W/ 55W
|
|
Input Voltage(V)
|
AC100-240V or AC200-240V
|
|
LED Light Source
|
CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Mainly COB series)
|
|
Driver
|
LIFUD / OSRAM / PHILIPS / TRIDONIC optional
|
|
Color
|
Multi Color Reflector (White /Black / Gun Black /Silver/Rose Gold /Champagne Gold)
|
|
Beam angle
|
15°/24°/36°/55°
|
|
CRI (Ra>)
|
90
|
|
Cut out
|
55mm/75mm/95mm/115mm/145mm/170mm/200mm
|
|
Working Temperature( °C )
|
-20 ~ +50
|
|
Lamp Body Material
|
Aluminum
|
|
CCT
|
Warm White(2700K/3000K) / Cool White(4000K) / Natural white(5000K/6000K)
|
|
PF
|
7W-15W: 0.5 ; 20W-55W: 0.95
|
|
Key Feature1
|
Antiglare Flicker Free Led Downlight
|
|
Key Feature2
|
IP44 Dimmable Led Ceiling Downlight
|
|
Installation
|
Recessed/ Embedded
|
|
Application
|
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc
|
|
Model No.
|
Watts
|
D*H(mm)
|
Cut out(mm)
|
LED Color
|
|
FT-DLT11-7W
|
7W
|
D62*H59
|
¢55
|
2700K
3000K
3500K
4000K
5000K
6000K
6500K
|
|
FT-DLT11-10W
|
10W
|
D85*H64
|
¢75
|
|
|
FT-DLT11-12W
|
12W
|
D85*H64
|
¢75
|
|
|
FT-DLT11-15W
|
15W
|
D105*H72
|
¢95
|
|
|
FT-DLT11-20W
|
20W
|
D130*H73
|
¢115
|
|
|
FT-DLT11-25W
|
25W
|
D130*H73
|
¢115
|
|
|
FT-DLT11-30W
|
30W
|
D170*H80
|
¢145
|
|
|
FT-DLT11-35W
|
35W
|
D170*H80
|
¢145
|
|
|
FT-DLT11-40W
|
40W
|
D195*H85
|
¢170
|
|
|
FT-DLT11-45W
|
45W
|
D195*H85
|
¢170
|
|
|
FT-DLT11-50W
|
50W
|
D235*H88
|
¢200
|
|
|
FT-DLT11-55W
|
55W
|
D235*H88
|
¢200
|
|
