Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Applicable Industries:
-
Construction works
-
Travel Speed:
-
0~8 km/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHANL
-
Dimension(L*W*H):
-
4850*1950*2600
-
Drum diameter:
-
560mm
-
Brand:
-
SL1000
-

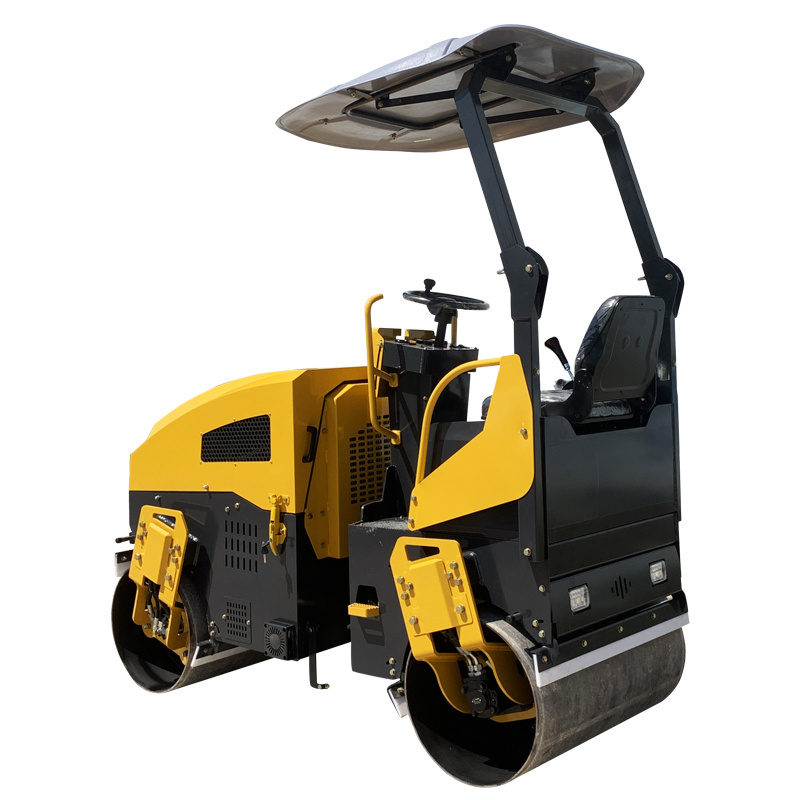

Product name:
-
Roller Compactor
-
Drive mode:
-
Variable plunger pump infinitely variable speed
-
Engine:
-
CHANGCHAI
-
Engine Model:
-
3TNV76
-
Color:
-
yellow
-
Vibrate frequency:
-
65hz
-
Drive Type:
-
hydraulic motor
-
Steel Wheel Size:
-
900*630 mm
-
Operating weight:
-
2 Ton
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
20 kw, 17.2 kw, 18.6 kW
-
Weight:
-
2 ton
-
Engine Brand:
-
CHANGCHAI
-
Applicable Industries:
-
Construction works
-
Travel Speed:
-
0~8 km/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHANL
-
Dimension(L*W*H):
-
4850*1950*2600
-
Drum diameter:
-
560mm
-
Brand:
-
SL1000
-
Product name:
-
Roller Compactor
-
Drive mode:
-
Variable plunger pump infinitely variable speed
-
Engine:
-
CHANGCHAI
-
Engine Model:
-
3TNV76
-
Color:
-
yellow
-
Vibrate frequency:
-
65hz
-
Drive Type:
-
hydraulic motor
-
Steel Wheel Size:
-
900*630 mm
-
Operating weight:
-
2 Ton
|
Model |
SL1000 |
|
WEIGHT |
|
|
Operating weight |
2000 kg |
|
Static line load |
80 / 70 n/cm |
|
DIMENSIONS |
|
|
Working width |
1000 mm |
|
Overall length |
1130 mm |
|
Overall height with ROPS |
2300 mm |
|
Turning radius(inner/outer) |
2 2 05/3 2 60mm |
|
Drum width |
1 0 00mm |
|
Drum diameter |
560 mm |
|
Wheel base |
1 3 50mm |
|
DRIVE |
|
|
Engine |
H uichai 390B/ Yanmar 3TN88 |
|
Type |
Three cylinder, water-cooled, four-stroke, Minor engine |
|
Output power |
2 6 kw /18.2kw |
|
Rated speed |
2600rpm |
|
Electric equipment |
12V |
|
Drive mode |
Variable displacement piston pump with infinitely variable speed, two-wheel drive motor in parallel |
|
Walking speed |
0-10km/h |
|
Climbing ability (vibration on/off) |
30%/ 35% |
|
BRAKES |
|
|
Working brake |
Variable displacement pump |
|
STEERING |
|
|
Steering method |
Hydraulic Cylinder, Articulated Steering |
|
Steering system |
Swing articulated |
|
EXCITING SYSTEM |
|
|
Vibration drum |
Front/ front + rear |
|
Driving form |
Hydraulic motor |
|
Vibration frequency |
65hz |
|
Amplitude |
0.5mm |
|
Exciting force |
3 0 kn |
|
SPRINKLER SYSTEM |
|
|
Sprinkling type |
intermittent pressure spray |
|
CAPACITY |
|
|
Hydraulic oil tank |
50 L |
|
Fuel tank |
39 L |
|
Water tank |
1 2 0L |
Hydraulic double drive
Small roller is a kind of construction machinery used to compact roads, sites and other ground. It is mainly used to compact soil, asphalt, concrete and other materials to improve its compactness and bearing capacity. Small roller has the characteristics of small volume, light weight and simple operation, and is suitable for the construction of narrow spaces such as urban roads, community greening, garden landscapes and stadiums.
The main types of small rollers are:
1. Walking roller: This kind of roller is small in size and light in weight, and is suitable for compaction in narrow space. The operator can stand on the roller or follow the roller to operate.
2. Car-mounted roller: This kind of roller is bulky, and the operator can sit in the driver's seat for operation. Car-mounted road rollers usually have large compaction capacity and high working efficiency, and are suitable for large-scale projects.
3. Vibrating roller: This roller compacts the ground through the vibration force generated by the vibrating device. Vibrating roller has a high compaction effect and is suitable for projects with high density requirements.
4. Static pressure roller: This roller compacts the ground by its own weight and has no vibration device. The static pressure roller is suitable for projects that do not require high density and places that need to avoid the influence of vibration.
When purchasing a small roller, it is necessary to select it according to the engineering requirements, ground materials, compaction requirements and other factors. At the same time, the brand, performance, price and other factors of the roller need to be considered. In the process of use, we should pay attention to regular maintenance to ensure the performance and service life of the roller.
