Quick Details
-
Voltage:
-
48V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
13 Ah
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YITU
-
Model Number:
-
EMB06
-
Product name:
-
EMB06
-
Battery:
-
48V 13Ah Lithium Battery
-
Motor Power:
-
500W Bafang motor(dual motor optional)
-
Brake:
-
Disc Brake
-
Frame:
-
Aluminum Alloy Frame
-
Display:
-
LCD Display
-
Tire:
-
26''*4.0 KENDA Tire
-
Derailleur:
-
7 speed Shimano gear shift
-
Certification:
-
ce
Quick Details
-
Gears:
-
7 Speed
-
Frame Material:
-
Aluminum Alloy
-
Wheel Size:
-
26"
-
Voltage:
-
48V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
13 Ah
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YITU
-
Model Number:
-
EMB06
-
Product name:
-
EMB06
-
Battery:
-
48V 13Ah Lithium Battery
-
Motor Power:
-
500W Bafang motor(dual motor optional)
-
Brake:
-
Disc Brake
-
Frame:
-
Aluminum Alloy Frame
-
Display:
-
LCD Display
-
Tire:
-
26''*4.0 KENDA Tire
-
Derailleur:
-
7 speed Shimano gear shift
-
Certification:
-
ce

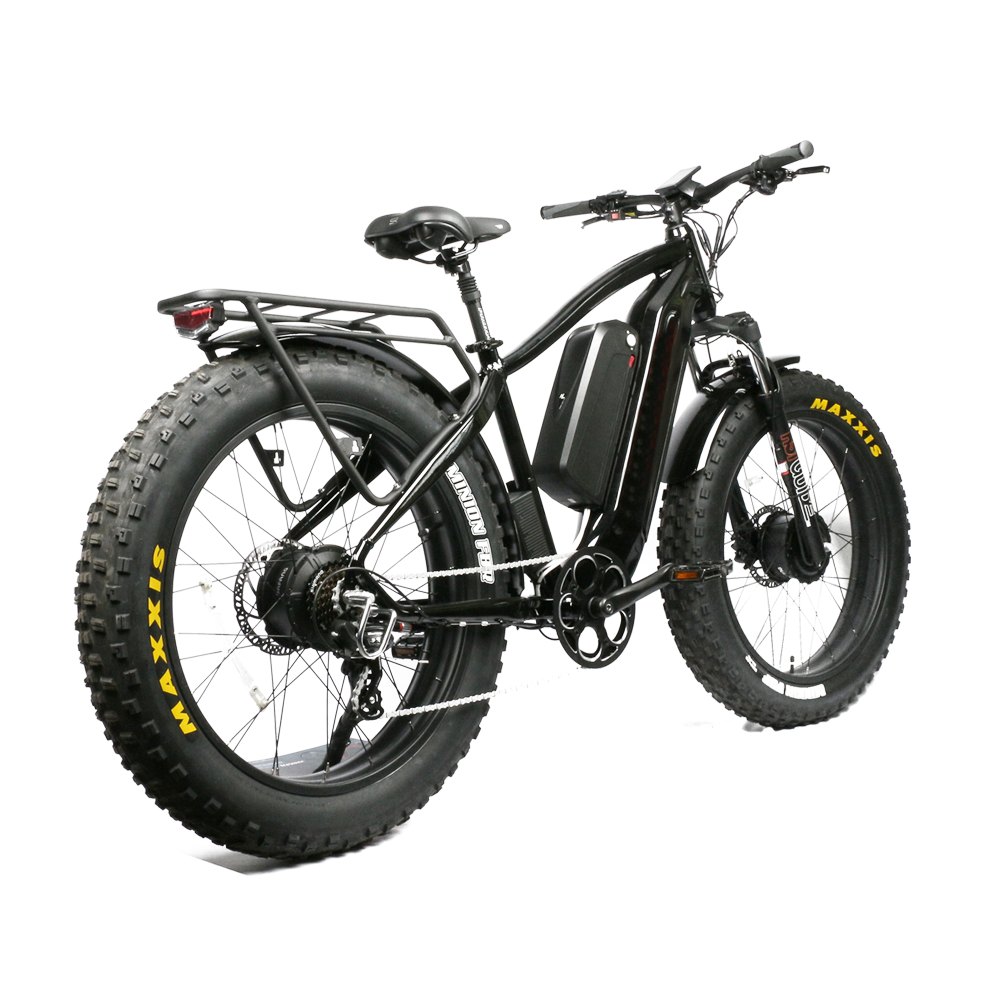

Adult chopper bicycle beach cruiser electric fat e bikes most attractive dual battery electric bicycle
|
Key features（Customer always choose）:
|
|
|
|
|
||||
|
Motor
|
Dual 52V 750W Bafang G060 high speed rear hub brushless motor with rated 170N.m torque
|
|
|
|
||||
|
Battery
|
52V 20Ah (1040Wh) integrated battery with Samsung 21700 50E battery cells
|
|
|
|
||||
|
Charger
|
3Amp, 100~240V, 50-60Hz, Smart charger with UL certificate
|
|
|
|
||||
|
Display
|
Key-disp KD718 color display with light sensor and automatic brightness control
|
|
|
|
||||
|
Brake
|
Tektro E350 hydraulic disc brake for both with 180mm disc brake
|
|
|
|
||||
Head-light
Super wide front light with max 600LM
Engine System
Bafang 500W/750W/1000W with 85N.m
Shifter System
SHIMANO Tourney series 7 speeds gear
Display
Key-disp KD718 color display
Fork
RST GUIDE SUSPENSION FORK
Brake System
Tektro E350 hydraulic disc brake
|
Basic specification sheet
|
|
|
|
|
||||
|
Main Electric System
|
|
|
|
|
||||
|
Motor
|
|
48V/52V 250-1000W rear hub motor (Dual motor optional)
|
|
|
||||
|
Battery
|
|
48V /52V 10.4-20Ah lithium battery (Second battery 48V/52V 10.4-15Ah)
|
|
|
||||
|
Controller
|
|
48V/52V 22A Sine wave Integrated controller
|
|
|
||||
|
Display
|
|
SW900 LCD display
|
|
|
||||
|
Charger
|
|
110-240v AC 50-60HZ, 48V2A
|
|
|
||||
|
Pedal assist system
|
|
5 levels PAS with speed sensor
|
|
|
||||
|
Driving modes
|
|
PAS & Thumb throttle
|
|
|
||||
|
Main Components
|
|
|
|
|
||||
|
Frame
|
|
6061 Alloy Aluminum
|
|
|
||||
|
Fork
|
|
MOZO suspension fork
|
|
|
||||
|
Rims
|
|
Double wall, aluminum alloy, 36H*13G
|
|
|
||||
|
Tires
|
|
Kenda, 26 *4.0 tire (VEE tire optional)
|
|
|
||||
|
Brake (F/R) system
|
|
Front & Rear disc brake
|
|
|
||||
|
Brake level
|
|
Aluminum, power cut off when braking
|
|
|
||||
|
Gear system
|
|
7 gears,Shimano
|
|
|
||||
|
Light system
|
|
Front & Rear LED light
|
|
|
||||
|
Derailleur system
|
|
7 gears,Shimano
|
|
|
||||
|
Saddle
|
|
Comfortable Saddle
|
|
|
||||
|
Pedal
|
|
Alloy aluminum with reflector,Wellgo VB087
|
|
|
||||
|
Crankset
|
|
48T, Alloy Aluminum crank,Prowheel
|
|
|
||||
|
Chain
|
|
Rust resistant chain,KMC
|
|
|
||||
|
Rear rack
|
|
Equiped
|
|
|
||||
|
Fenders
|
|
Equiped
|
|
|
||||
|
Performance
|
|
|
|
|
||||
|
Max speed
|
|
EU:25KM/H NA:32KM/H MAX:50KM/H
|
|
|
||||
|
Travel distance
|
|
30km by Throttle, 40-60km by PAS
|
|
|
||||
|
Loading capacity
|
|
120kgs
|
|
|
||||
|
Charging time & Life
|
|
4-6 Hours, >900 Cycles
|
|
|
||||
|
N.W./G.W.
|
|
35KG/39KG
|
|
|
||||
|
Carton size
|
|
165X29X90CM
|
|
|
||||
|
Container loading
|
|
68pcs/20ft; 168pcs/40HQ
|
|
|
||||
|
Warranty
|
|
|
|
|
||||
|
Motor
|
|
1 year
|
|
|
||||
|
Battery
|
|
1 year
|
|
|
||||
|
Controller
|
|
1 year
|
|
|
||||
|
Frame
|
|
2 years
|
|
|
||||
|
Charger
|
|
1 year
|
|
|
||||
|
Others
|
|
0.5 year
|
|
|
||||
Q: What would be the sample policy?
A:
Sample always
is
available but we will charge extra sample cost on samples. However, the sample cost will be refunded when customer place bulk order.
Q: What about the delivery time?
A:
The delivery time
normally
is from 7 days to 50 days.
Q:
What is your warranty terms?
A:
We provide 1 year warranty for lithium battery, 1 year for lead acid battery, 2 years for frame, 1 year for controller, 1 year for motor. For the other parts, please contact us for details.
Q:
Can we mix different models in a container?
A:
Yes, of course.
Q:
What about payment terms?
A:
Bank transfer(T/T), L/C,D/P, credit card, Western Union, Paypal, etc.
Q:
Can we have our own LOGO or brand?
A:
Yes, but there is MOQ or extra cost when the order is less than the MOQ.
Q:
How does your factory control the quality?
A:
Quality is the first thing when we are proceeding with the order. Each parts will be tested before receiving from our suppliers and every bike will be tested and checked before packing and shipment.
Q:
As a wholesaler, how can we get technical support from your company?
A:
We are able to provide different kinds of technical services for our clients. For example, you can arrange your workers to our factory for learning related technical training. We may also think about visiting our customers with technical support.
Q:
What shall we do when we are in urgent need of spare parts?
A:
We can send the parts by air
immediately
after negotiation with customers.
