For more details please contact
Wechat/whatsapp:+8618068446396
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
5.5-75KW
-
Weight:
-
500
-
Dimension(L*W*H):
-
virable
-
Application:
-
PVC resin dehydration separation decanter separator
-
Material:
-
304/316L Stainless Steel
-
Operation:
-
Continuous Automatic
-
Description:
-
Mechanical Separation Concentration
-
Discharge type:
-
Self-cleaning
-
Bearing:
-
SKF Bearing
-
Speed:
-
0-5000(stepless Adjustable )
-
Bowl Material:
-
Stainless Steel 304/316L/Duplex Steel
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
China
-
Marketing Type:
-
Hot sale product
-
Voltage:
-
220V/380V/415V
-
Power:
-
5.5-75KW
-
Weight:
-
500
-
Dimension(L*W*H):
-
virable
-
Application:
-
PVC resin dehydration separation decanter separator
-
Material:
-
304/316L Stainless Steel
-
Operation:
-
Continuous Automatic
-
Description:
-
Mechanical Separation Concentration
-
Discharge type:
-
Self-cleaning
-
Bearing:
-
SKF Bearing
-
Speed:
-
0-5000(stepless Adjustable )
-
Bowl Material:
-
Stainless Steel 304/316L/Duplex Steel
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE, ISO
Products Description

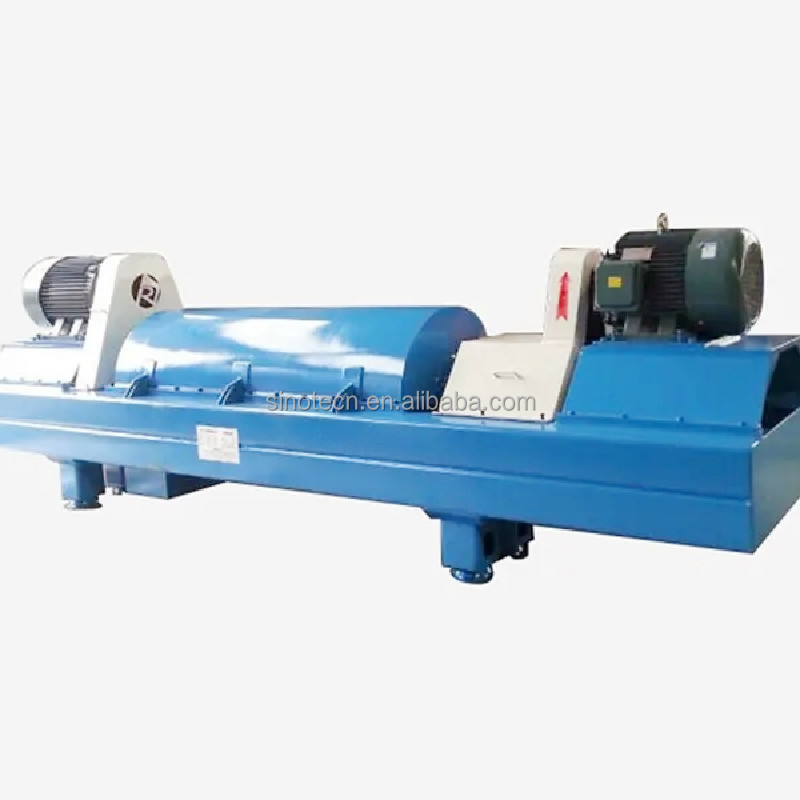

Decanter centrifuge
Decanter centrifuge is widely used in industrial production, such as food, petroleum, chemical, water treatment,mineral and so on.
The decanter centrifuge is mainly composed of a rotating drum, a screw pusher, a motor and a differential, and the main function is to separate solid and liquid. We are manufacturing
centrifuge lab scale,
decanter centrifuge machine,
wastewater decanting centrifuge,
tricanter centrifuge,
sludge decanter centrifuge, industrial
decanter centrifuge ,etc.
Product Paramenters
|
Model number
|
Capacity
|
Motor power
|
Weight
|
Dimension
|
|
SNLW-250
|
1-5m³/h
|
11/4KW
|
1200KG
|
2650*720*900
|
|
SNLW-350
|
5-15m³/h
|
22/5.5KW
|
2000KG
|
3585*980*1258
|
|
SNLW-450
|
5-20m³/h
|
30/11KW
|
3000KG
|
3676*1000*1285
|
|
SNLW-520
|
10-35m³/h
|
45/15KW
|
5000KG
|
4380*1080*1360
|
|
SNLW-550
|
10-45m³/h
|
55/15KW
|
6500KG
|
4840*1160*1465
|
|
SNLW-650
|
25-60m³/h
|
90/22KW
|
8000KG
|
5038*1388*1578
|
|
SNLW-720
|
35-85m³/h
|
110/30KW
|
11000KG
|
5600*3280*1450
|
Woking Principle
Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid), and three phases (solid-liquid-liquid), solid phase is pushed out by spiral continually, this equipment is a constant and
high effective equipment which used in separating solid-liquid-liquid.
Separation performance:
Water content in oil at outlet port: ≤3%
Oil content in water at outlet port: ≤0.5%
Water content in solid at discharging port: ≤80%
high effective equipment which used in separating solid-liquid-liquid.
Separation performance:
Water content in oil at outlet port: ≤3%
Oil content in water at outlet port: ≤0.5%
Water content in solid at discharging port: ≤80%
Application
Main Application in chemical
water treatment decanter centrifuge
crude oil clarification decanter centrifuge
dehydration of dyes and
pigments decanter centrifuge
mineral thick liquid decanter centrifuge
Application in food
soybean wheat
protein decanter centrifuge
yeast and vinasse decanter centrifuge
decanter centrifuge purification of juice and fruit fiber
Coffee grounds decanter centrifuge
Applicatiom im energy
animal and vegetable oil decanter centrifuge
coal tar decanter centrifuge
gypsum decanter centrifuge
kaolin and
graphite decanter centrifuge
Product packaging
Standard seaworthy packing suitable for international sea shipment.Packing material: Plywood case
Shipping mark: Customized
Damping material: Yes
Shipping mark: Customized
Damping material: Yes
packing part:
1) Centrifuge
2) power control box
3) Installation material
FAQ
1, What's the lead time?
60-90 days
2, How to assemble and install the equipment?
We will send engineer to your factory or by online support through video call or conference meeting
3, What's the salary rate for engineer
Buyer will need to pay 2
00USD/day salary to engineer, as well as
the visa fee , insurance, round flights and accommodation.
4, How long will be the commissioning and installation work lasting?
About 7 days
5, What's the product warranty?
18 months from the date of Bill of lading date, except for human damage or force majeure.
6, What's the wearing part of machine
small parts , bearing, Oring
7, How to get a quote?
Contact email
sales@sinotecn.com or whatsapp +8618068446396
