Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runqi
-
Model Number:
-
PVC 1007
-
Rated voltage:
-
300V
-
Product Name:
-

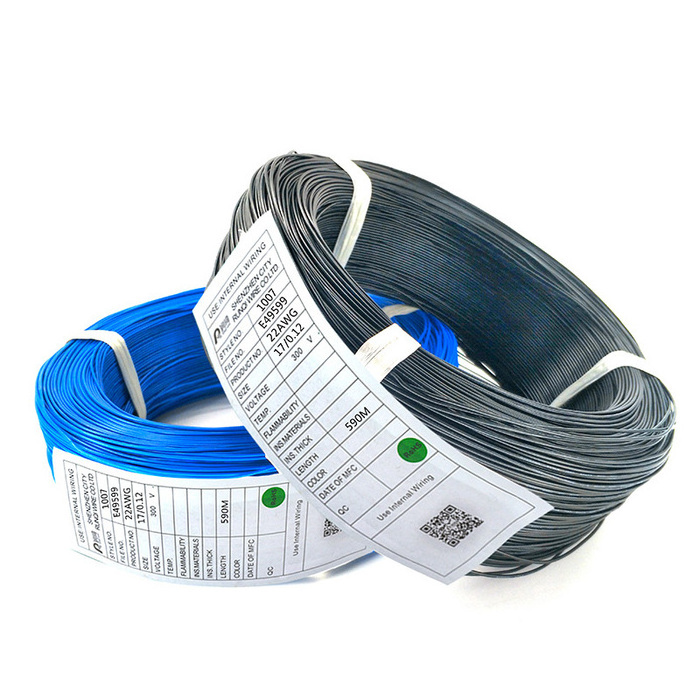

Solid Core Multi Strands 1007 18awg /20awg/22awg/24awg/26awg PVC wire
-
Over diameter:
-
1.6mm
-
model:
-
22awg
-
Temperature resistance:
-
80
-
High pressure:
-
300V
-
Package:
-
610m volume
-
Conductor Specification:
-
17/0.16TS
-
Temperature range:
-
-30 to 80 Centigrade
-
Insulation:
-
PVC
-
Keywords:
-
22awg wire 300v
Quick Details
-
Application:
-
Overhead
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runqi
-
Model Number:
-
PVC 1007
-
Rated voltage:
-
300V
-
Product Name:
-
Solid Core Multi Strands 1007 18awg /20awg/22awg/24awg/26awg PVC wire
-
Over diameter:
-
1.6mm
-
model:
-
22awg
-
Temperature resistance:
-
80
-
High pressure:
-
300V
-
Package:
-
610m volume
-
Conductor Specification:
-
17/0.16TS
-
Temperature range:
-
-30 to 80 Centigrade
-
Insulation:
-
PVC
-
Keywords:
-
22awg wire 300v
| Product Name | Solid Core Multi Strands 1007 18awg /20awg/22awg/24awg/26awg/28awg/30awg PVC 300V wire |
| Cable Length Per Roll | 610M |
| Use | Camera, automobile machine ,Controller Switch ,Lithium Battery,Computer,MP3 / MP4 Player,Video Game Player Etc |
| Awg | 18awg - 30awg |
| Conductor Specification | 17/0.16TS for 22awg awg |
| Insulated Material | PVC |
| Features | Rated temperature: 80 ° C, rated voltage: 300 V, must pass UL VW-1 vertical flame resistance test, uniform insulation thickness |
| Color | Black red Pink Green White Blue Or Customized Color |
| OEM | Available |
| Material for Conductor | Pure Copper ,Tinned Copper, |
| Sample | 2Meter Free Sample,Shipping cost on customer side, |
Each Size Specification For PVC 1007 Electric Wire
|
Conductor |
Insulation |
Unit length |
|||
|
Size |
Construction |
Diameter |
Nominal Thickness |
Over Diameter
|
(M)(Ft) |
|
(AWG) |
(No./mm) |
(mm) |
(mm) |
(mm) |
Meter |
|
30 |
7/0.10TS |
0.3 |
0.38 |
1.05 |
610 |
|
28 |
7/0.127TS |
0.39 |
0.41 |
1.2 |
610 |
|
26 |
7/0.16TS |
0.49 |
0.41 |
1.30 |
610 |
|
24 |
11/0.16TS |
0.61 |
0.4 |
1.40 |
610 |
|
22 |
17/0.16TS |
0.76 |
0.42 |
1.60 |
610 |
|
20 |
21/0.178TS |
0.94 |
0.43 |
1.8 |
610 |
|
18 |
34/0.178TS |
1.2 |
0.45 |
2.10 |
610 |
|
16 |
26/0.254TS |
1.5 |
0.45 |
2.4 |
610 |
|
28 |
1/0.32 |
0.32 |
0.38 |
1.08 |
610 |
|
26 |
1/0.4 |
0.4 |
0.38 |
1.16 |
610
|
|
24 |
1/0.5 |
0.5 |
0.38 |
1.26 |
610 |
|
22 |
1/0.6 |
0.6 |
0.38 |
1.36 |
610 |
|
20 |
1/0.8 |
0.8 | 0.38 | 1.56 | 610 |
|
18 |
1/1.0 | 1 | 0.38 | 1.76 | 610 |
If you have any other questions, please click here to " send an inquiry "
1. Q: Are you trading company or manufacturer ?
A: We are factory. We always leads the new trend of modern society, actively adopts new materials and new technologies, and continues to write a new page of glorious history.
2. Q: How does your factory do regarding quality control?
A: "Quality is our culture." We always attach great importance to quality controlling from the very beginning to the very end..
3. Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay shipping charge.
4. Q: How long is your delivery time?
A: Normally it is 10-20 days, it will depend on quantity.
5. Q: What is your terms of payment ?
A: Payment 30% T/T in advance, balance before shippment. we can accept Trade Assurance/Paypal/Western Union etc.
6. Q: After sales service:
A: All of our products are made by top quality ,we will check the quality before deliver to you. If there any problem on quality .We will solve the problem for you in the first time, and will come up with the most suitable solution to solve the after-sales problem.
