Quick Details
-
Rated Voltage(v):
-
96V/120V/220V or as your order
-
Rated rotated speed(r/m):
-
500r/m
-
Top net weight(kg):
-
18kg
-
Output Current:
-
AC
-
Start Torque(NM):
-
0.78Nm
-
Rated Torque(NM):
-
31.8 Nm
-
generator:
-
3 phase permanent magnet synchronous generator
Quick Details
-
Model:
-
NE-2000LP
-
Rated Power(w):
-
2000w
-
Max Power(w):
-
2500w
-
Rated Voltage(v):
-
96V/120V/220V or as your order
-
Rated rotated speed(r/m):
-
500r/m
-
Top net weight(kg):
-
18kg
-
Output Current:
-
AC
-
Start Torque(NM):
-
0.78Nm
-
Rated Torque(NM):
-
31.8 Nm
-
generator:
-
3 phase permanent magnet synchronous generator
Features:
- Low start up speed;
- Low cogging torque
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
Technical data:
|
Model |
NE-2000P |
|
Rated Power(w) |
2000w |
|
Max Power(w) |
2500w |
|
Rated Voltage ( v) |
48v/96V |
|
Rated rotated speed(r/m) |
500r/m |
|
Top net weight(kg) |
18kg |
|
Output Current |
AC |
|
Start Torque(N*M) : |
0.78 Nm |
|
Rated Torque(N*M): |
31.8 Nm |
|
generator |
3 phase permanent magnet synchronous generator |
|
Insulation Class: |
F |
|
Service Life : |
More Than 20 years |
|
Bearing |
HRB or for your order |
|
Shaft Material |
Iron |
|
Shell Material |
Aluminum alloy |
|
Permanent Magnet Material |
Rare Earth NdFeB |
|
Protection Grade |
IP54 |
|
Lubrication |
Lubrication Grease |
|
Working temperature |
-40℃ - 80 ℃ |
Main specifications:
1. Gearless , direct drive , low RPM generator
2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.
3. Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
4. Permanent magnet generator rotor using patented alternator, together with the special stator design,
effectively reduce the generation of resistance torque , while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability
Voltage output: 48v/96vAC or as your request.
Kindly note:
Please inform us the rated voltage of 2kw generator and shaft you need when you place an order, if not informed, 48vAC and Cone shaft will be delivered.
For mounting base, the price is not included in the order. If you need it, additional $30 is needed.
Thanks for your understanding !
Coil: 100% Pure copper coils, quality is better than
Generator casting: aluminium alloy case, better heat and lighter weight than carbon steel case.
Bearing: famous brand bearing, good quality

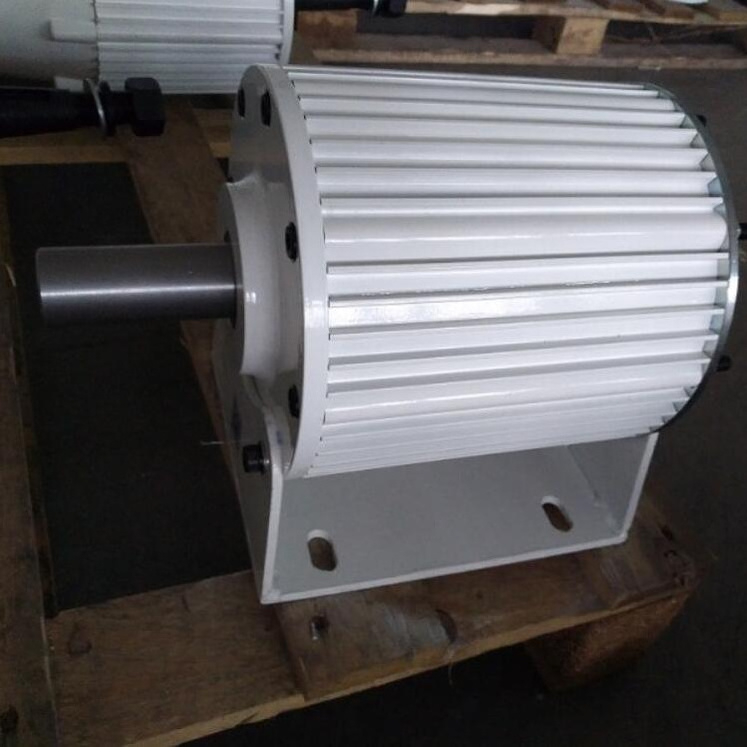

Finished 2kw Permanent Magnet Generator
