Quick Details
-
Product name:
-

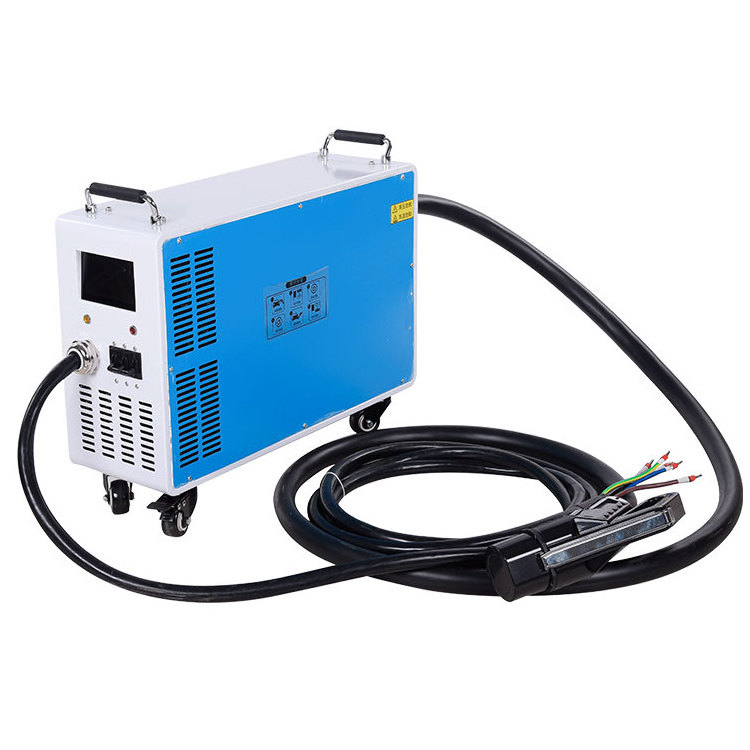

DC Portable EV Charger
-
Connector:
-
CHAdeMO CCS GB
-
Rated Output Power:
-
30kW
-
Certificate:
-
CE TUV
-
Warranty:
-
2 Year
-
Charging Standards:
-
IEC 62196
-
Current:
-
MAX 60A
-
Cable length:
-
5M(Customizable)
-
Protection:
-
IP56
-
Start Method:
-
RFID Card
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
KF-DCP30
-
Brand Name:
-
King Fit
-
Product name:
-
DC Portable EV Charger
-
Connector:
-
CHAdeMO CCS GB
-
Rated Output Power:
-
30kW
-
Certificate:
-
CE TUV
-
Warranty:
-
2 Year
-
Charging Standards:
-
IEC 62196
-
Current:
-
MAX 60A
-
Cable length:
-
5M(Customizable)
-
Protection:
-
IP56
-
Start Method:
-
RFID Card
Product Overview
PRODUCT SPECIFICATIONS
|
Input Rating
|
|
|
|
Input Voltage
|
AC380V±20%
|
|
|
Input Frequency
|
50±10%Hz
|
|
|
Output Rating
|
|
|
|
Output Voltage
|
200-750VDC
|
|
|
Max output current
|
60A
|
|
|
Detail
|
|
|
|
User Interface
|
LED Indicator
|
|
|
Cable Length
|
5m
|
|
|
Electrical Index
|
|
|
|
Measurement Accuracy
|
Level 0.5
|
|
|
Electrical Index
|
≥11
|
|
|
Current limit protection value
|
≥110%
|
|
|
Features
|
|
|
|
Charging Mode
|
Auto Charging
|
|
|
Payment Method
|
NO
|
|
|
Safety Design
|
|
|
|
security function
|
Over/Under voltage protection,Over/Under frequency protection,Over/Under temperature protection,Over current protection,Current leakage protection,Grounding protection
|
|
|
Environmental Indicators
|
|
|
|
Operating temperature
|
-25°C~+50°C
|
|
|
Working humidity
|
5%~95% non-condensing cream
|
|
|
Working elevation
|
<2000m
|
|
|
Protection level
|
Level IP43
|
|
|
Cooling method
|
Air cooling
|
|
|
Noise control
|
≤55dB
|
|
|
MTBF
|
100,000 hours
|
|
