Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, PLT, GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
szsmt
-
Model Number:
-
4060
-
Dimension(L*W*H):
-
1410*880mm*860mm
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser power:
-
50w 60w 80w co2 laser glass tube
-
Laser tube:
-
Beijing Reci /EFR /Yongli
-
Name:
-
cheap laser engraving machine
-
Keywords:
-
acrylic laser machine
-
Function:
-
Engraving Non Metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Software:
-
CorelDraw /Auto CAD
-
Model:
-
640E
-
Color:
-
Blue-white /Red -white
Quick Details
-
Engraving Area:
-
400*600mm
-
Laser Type:
-
seal co2 glass tube or RF tube
-
Engraving Speed:
-
1500mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, PLT, GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
szsmt
-
Model Number:
-
4060
-
Dimension(L*W*H):
-
1410*880mm*860mm
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser power:
-
50w 60w 80w co2 laser glass tube
-
Laser tube:
-
Beijing Reci /EFR /Yongli
-
Name:
-
cheap laser engraving machine
-
Keywords:
-
acrylic laser machine
-
Function:
-
Engraving Non Metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Software:
-
CorelDraw /Auto CAD
-
Model:
-
640E
-
Color:
-
Blue-white /Red -white

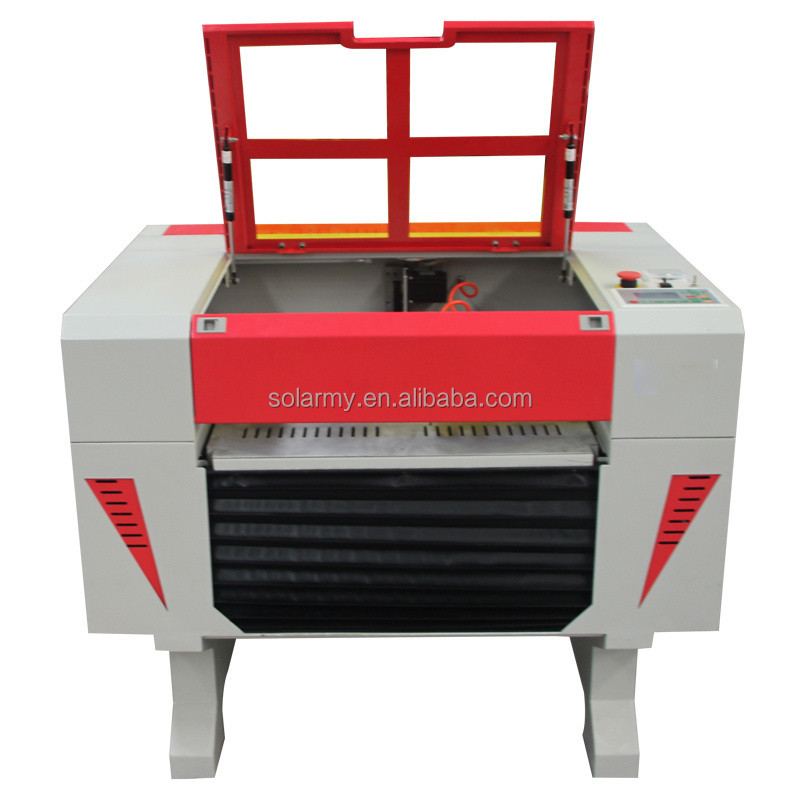

6040 co2 laser engraving & cutting machine
4060 CO2 Laser engraving and cutting laser machine
1.DSP high-speed stand-alone operation control system
2. PMI Linear and slider
3.knife platform, open box for feed material
4.red light positioning, water protection
configuration list
Working area 400*600mm
EFR 80W
HY 80W Power supply best of China
Aluminum Blade and honey comb
Laser head with red dot pointer and air assist
RD6442G controller
Lifting working table
USA lens
Water pump
Steel belt and high precision limited switch
Three phase motor and Leadshine driver
Water sensor
Gate sensor
Air assist and air pump
Water pump 1pcs
exhaust fan installed on the machine
Smoke pipes
Water chiller CW3000
|
Working area |
400*600mm |
|
Laser type |
Sealed co2 laser glass tube OR RF tube |
|
Working table |
Aluminum blade and honey comb |
|
Cutting thickness |
0-10mm( depend on different material ) |
|
Max moving speed |
1500mm/s |
|
Laser energy control |
1-100% set by hand or software |
|
Min shaping character |
Character :2*2mm ,letter :1*1mm |
|
Operating temperature |
5-35 °C |
|
Data transfer interface |
USB2.0 and USB disk |
|
Resolution ratio |
≤4500dpi |
|
Location precision |
<0.01mm |
|
Control configuration |
DSP |
|
Cooling way |
water cooling |
|
System environment |
WINDOWS 2000/ XP/Vista/Win7/Win8/win10 |
|
Graphic format supported |
files which CorelDraw,Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible Software |
CorelDraw, AutoCAD |
|
Memory |
256 MB |
|
Machine package dimension |
1150*750*670mm/1410*880mm*860mm |
|
Machine weight |
140KG |
Application
widely used in the advertising industry, bamboo handicraft industry, wood packaging industry, decoration industry, furniture industry, modeling industry. Suitable for acrylic, organic board, double color board, wood, bamboo products, paper, glass, stone and other non-metallic materials and a variety of text, graphics, images, trademarks and other fine cutting, hollowing and carving.
engraving and cutting sample
