Quick Details
-
Dimensions (L x W x H) (mm):
-
11950X2490X3350
-
Place of Origin:
-
Shaanxi, China
-
Product name:
-
wrecker tow truck
-
Brand:
-
shacman
-
Rear axle:
-
HC16 double reduction
-
Front axle:
-
HF9 drum type, 9tons
-
Fuel tanker:
-
300L
-
Steering:
-
ZF8098 hydraulic steering with power assistance
-
Color:
-
Customized
-
Fuel type:
-
Diesel/ CNG
-
Tires:
-
12.00R20, 12/12.00R22.5
-
Horse power:
-
336/371/380/420
Quick Details
-
Emission Standard:
-
Euro 3/4/5/6
-
Condition:
-
New
-
Brand Name:
-
Shacman
-
Dimensions (L x W x H) (mm):
-
11950X2490X3350
-
Place of Origin:
-
Shaanxi, China
-
Product name:
-
wrecker tow truck
-
Brand:
-
shacman
-
Rear axle:
-
HC16 double reduction
-
Front axle:
-
HF9 drum type, 9tons
-
Fuel tanker:
-
300L
-
Steering:
-
ZF8098 hydraulic steering with power assistance
-
Color:
-
Customized
-
Fuel type:
-
Diesel/ CNG
-
Tires:
-
12.00R20, 12/12.00R22.5
-
Horse power:
-
336/371/380/420

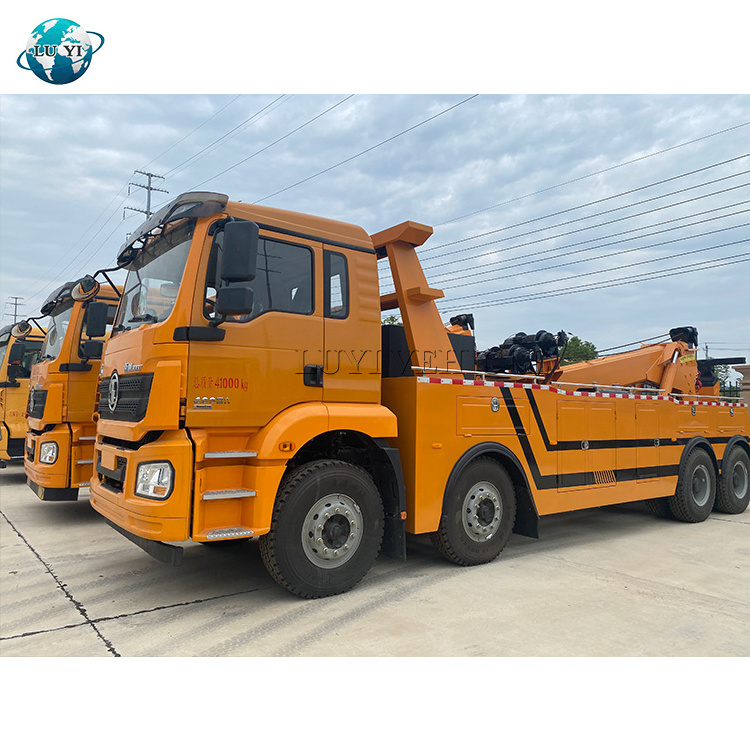

wrecker tow truck for sale
Product Description
For the rotator wrecker, the basic equipment includes automatic clamping arrangement for small rotator truck, boom, winch, wheel lift devices, construction alarm, rear working lighting, box for washing hands, U shape device for holding tires, 5 sets supporting forks, supporting fork stand, 2 pcs chain and hook, accessory lightings assembly, imported hydraulic pressure components, multi parts compartment truck body, uniform control devices on both sides, etc.
The dump truck compartment is divided into two kinds: backward tipping and lateral tipping. The motion of piston rod is controlledby the control system. Backward tipping is more common, and the piston rod is pushed to make the compartment tipping, with a few two-way tipping.
Product Details
Luyi Vehicle side wall semi trailer can be designed according to different needs of customers, or tell us your different media cargoes, we will design come to you to design the corresponding models, to make your transportation much more economical.
Specification
The Information is Standard Spec.If you want get more specific Spec.Please send inquity to us.my Whats
|
Model
|
8x4 Shacman 30-50tons wrecker
|
|
|
|
Engine
|
Engine model
|
370hp /273kw
|
|
|
|
Maximum output
|
336PS (247kW) at 2200 rpm
|
|
|
|
Maximum torque
|
1350Nm at 1100-1600rpm
|
|
|
|
Bore
|
126mm Stroke: 130mm
|
|
|
|
Displacement
|
9.726L
|
|
|
|
Compression ratio
|
17.5:1
|
|
|
|
Specific fuel consumption
|
≤198g/kWh
|
|
|
|
Engine oil filling quantity
|
23L
|
|
|
|
Air compressors
|
WABCO Twin cylinders air compressors;
|
|
|
|
Cooling system filling quantity
(long-term filling) |
40L
|
|
|
Clutch
|
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
|
|
|
|
Transmission
|
Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
|
|
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
|
|
Front Axle
|
New HF9 series, with drum brake system
Steering with double T-cross section beam |
|
|
|
Rear Axle
|
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73 |
|
|
|
Chassis
|
Frame:
|
High-strength U-profile frame, all cold riveted cross members and reinforced subframe
|
|
|
|
Front suspension:
|
semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
|
|
|
|
Rear suspension:
|
semi-elliptic leaf springs and bogie springs
|
|
|
|
Spare wheel carrier:
|
with one spare wheel
|
|
|
Steering |
ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1 |
|
|
|
Braking System
|
Front and rear drum brake, four-circuit protection valve
|
|
|
|
|
Service brake
|
dual circuit compressed air brake
|
|
|
|
Parking Brake
|
spring energy, compressed air operating on rear wheels
|
|
|
|
Auxiliary brake
|
engine exhaust brake
|
|
|
Wheel & Types
|
Rims
|
8.5-20,10 hole-steel
|
|
|
|
Types
|
12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20
|
|
