Quick Details
-
Model Number:
-
FSPxx1WB-6
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
400W-1100W (0.5HP-1.5HP)
-
Cable Length:
-
8M, 10M
-
Power:
-
250W-1100W, 400W-1100W
-
Pressure:
-
Low Pressure
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Motor Winding:
-
Copper or Aluminum
-
Max Height:
-
5-9.5m
-
Max Flow:
-
7500-16000l/h
-
Max Deepth:
-
5-7m
-
Fuel:
-
Electricity
Quick Details
-
Application:
-
Developing World Water Solutions, Irrigation and Agriculture, Wastewater Transport and Flood Control, Water Distribution
-
Voltage:
-
110V or 230V
-
Brand Name:
-
FLUENT
-
Model Number:
-
FSPxx1WB-6
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
400W-1100W (0.5HP-1.5HP)
-
Cable Length:
-
8M, 10M
-
Power:
-
250W-1100W, 400W-1100W
-
Pressure:
-
Low Pressure
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Motor Winding:
-
Copper or Aluminum
-
Max Height:
-
5-9.5m
-
Max Flow:
-
7500-16000l/h
-
Max Deepth:
-
5-7m
-
Fuel:
-
Electricity

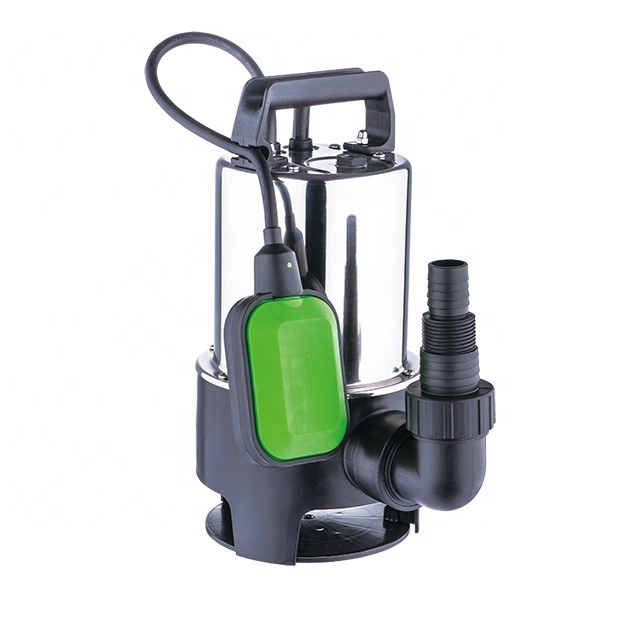

Dirty Water Electric Centrifugal Submersible Pump
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IPX8
-Copper and Aluminum winding are both available for all models
Materials:
-Pump body: PP
-Impeller: PP (Stainless steel is optional)
-Shaft with rotor: 45# Carbon Steel (Stainless shaft is optional)
Application:
-Submersible dirty water pumps with back impeller suitable to lift waste liquids even with suspended solids.
-Able to drain infiltrating water, cesspools or reservoirs, decanting water and clean, dirty or muddy swimming pools.
Ideal for:
- Irrigating Gardens
- Draining cellars / basements
- Powering waterfalls / fountains
Overview:
-Induction motor delivers quiet and efficient operation
-Adjustable water outlet(1"-1/4"1-1/2") compatible with 25/35mm tubing and 25mm tap adaptors
-Float switch automatically turns off pump once minimum water level is reached
-Thermal overload protection - automatically shuts off motor in the event of overheating
Specification:
| Power | 400W | 550W | 750W | 900W | 1100W |
| V&Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Max. Flow | 7500L/H | 10500L/H | 13500L/H | 15000L/H | 16000L/H |
| Max. Height | 5M | 7M | 8M | 9.0M | 9.5M |
| Max. Deepth | 5M | 7M | 7M | 7M | 7M |
| Max. Grain Size | 35mm | 35mm | 35mm | 35mm | 35mm |
| Certifications | ROHS/LVD/GS/CE/EMC | ||||
| Dia. Of Pipe | 1"/1.25"/1.50" | 1"/1.25"/1.50" | 1"/1.25"/1.50" | 1"/1.25"/1.50" | 1"/1.25"/1.50" |
| Cable |
H05RNF3G
0.75mm 2 x10m |
H05RN-F3G
0.75mm 2 x10m |
H05RN-F3G
1.0mm 2 x10m |
H05RN-F3G
1.0mm 2 x10m |
H05RN-F3G
1.0mm 2 x10m |
| Package Size(4pcs) | 46X34X36cm | 46X34X36cm | 46X34X36cm | 46X34X36cm | 46X34X38.5cm |
| Weight Approx(4pcs) | 18.5/19.7KG | 19.5/20.5KG | 20.8/21.4KG | 21.7/22.3KG | 22.2/23.8KG |
| QTY/20'FL | 2040pcs | 2040pcs | 2040pcs | 1900pcs | 1900pcs |
110V/60Hz is optional
