Quick Details
-
Flatness:
-
1/10, 1/10 Lambda, 1/10, 1/10 Lambda
-
Warranty:
-
one year
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Leica
-
Model Number:
-
ADS101
-
Product name:
-
Mini prism
-
Offset:
-
0mm; -17.5mm
-
Application:
-
Optical Surveying Instruments
-
Coating:
-
Copper
-
Bevel:
-
<0.2x45°
-
Clear Aperture:
-
>90%
-
Diameter:
-
25.4mm
Quick Details
-
Material:
-
K9 glass + Aluminum
-
Dimension Tolerance:
-
0.1mm, +0.0/-0.1mm
-
Angle Tolerance:
-
2"-5"
-
Flatness:
-
1/10, 1/10 Lambda, 1/10, 1/10 Lambda
-
Warranty:
-
one year
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Leica
-
Model Number:
-
ADS101
-
Product name:
-
Mini prism
-
Offset:
-
0mm; -17.5mm
-
Application:
-
Optical Surveying Instruments
-
Coating:
-
Copper
-
Bevel:
-
<0.2x45°
-
Clear Aperture:
-
>90%
-
Diameter:
-
25.4mm
Product Description
Best Price Mini Prism Pole ADS101 0Mm -17.5Mm Total Station Surveying Prisms

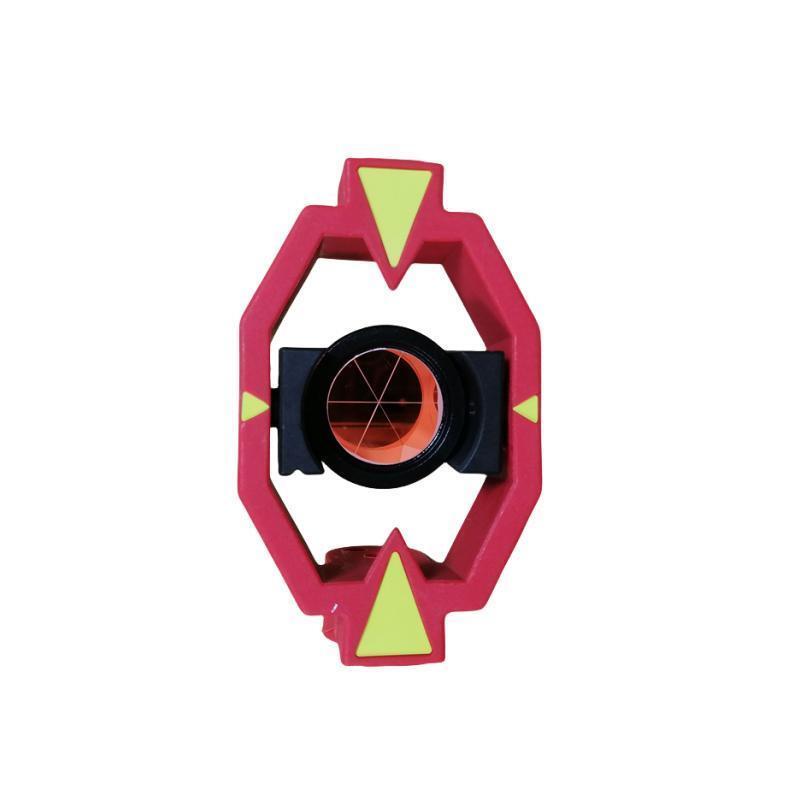

Mini prism
* Prism constant of +17.5mm, range 2000m.
* These prisms are manufactured from high-quality optical glass which is worked to strict specifications. All reflective surfaces are provided with a resistant coating so that the reflectivity is not adversely affected by dirt or condensation.
* Conveniently storable in the instrument container, Mini Prisms offer a high positional accuracy due to their small size. The GMP111 has a built-in levelling bubble and is supplied with an attachable spike (1/4" thread). With this arrangement a point can be measured with very high precision.
Specification
|
Model NO.
|
ADS101 mini prism
|
|
Applicable
|
Total Station
|
|
Prism Diameter
|
25.4mm
|
|
Prism Material
|
BK7
|
|
Prism pole
|
1.2m , 30cm×4sections
|
|
Pole Diameter
|
12mm
|
|
Circular Bubble Accuracy
|
8'/2mm
|
|
Offset
|
0mm; -17.5mm
|
|
Accuracy
|
≤8"
|
|
Material of prism holder
|
ABS plastic
|
|
Coated
|
copper/silver
|
|
Transportation Package
|
Soft bag,carton
|
