Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Power Cable
-
Size:
-
1.5-630mm2
-
Product name:
-

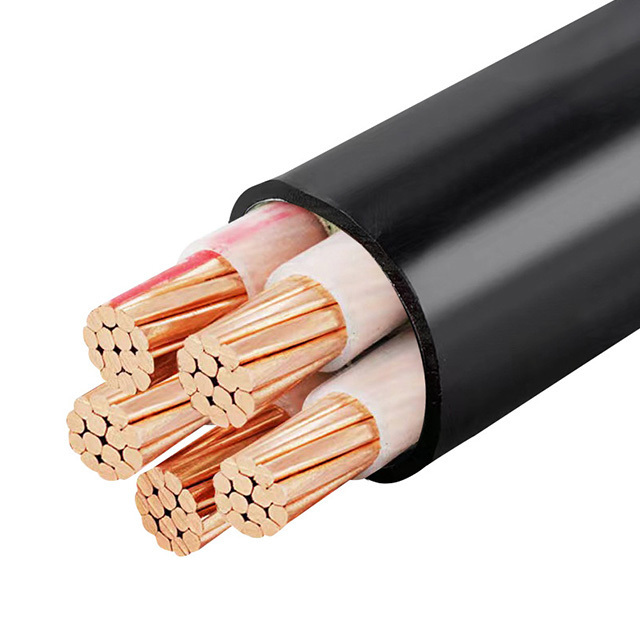

CU/PVC/XLPE Power Cable
-
Material:
-
copper+XLPE+PVC
-
Color:
-
black
-
Rated voltage:
-
0.6/1 KV
-
Core:
-
1/2/3/4/5 Cores
-
Armour:
-
SWA STA AWA ATA
-
Certificate:
-
ISO9001/CCC
-
Standard:
-
IECA, BS, DIN
-
Warranty:
-
100%quanlified
-
Packing:
-
Durm
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Power Cable
-
Size:
-
1.5-630mm2
-
Product name:
-
CU/PVC/XLPE Power Cable
-
Material:
-
copper+XLPE+PVC
-
Color:
-
black
-
Rated voltage:
-
0.6/1 KV
-
Core:
-
1/2/3/4/5 Cores
-
Armour:
-
SWA STA AWA ATA
-
Certificate:
-
ISO9001/CCC
-
Standard:
-
IECA, BS, DIN
-
Warranty:
-
100%quanlified
-
Packing:
-
Durm
Product Paramenters
1.Executive standard
GB/T 12706.1-2020
2.Product use
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.
3.Features
A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.
B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :
PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃.
C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:
Single core cable: unarmored 20D, armored 15D
Multi-core cable: 15D for unarmored, 12D for armored
Where: D- actual outer diameter of cable.
D) Cable breaking force:
Aluminum core cable: 40×S (N)
Copper core cable: 70×S (N)
Note: S is the total cross-sectional area of the conductor
4.Product model and application
|
Model
|
|
Name
|
APPLICATION
|
|
|
Copper core
|
aluminium core
|
|
|
|
|
YJV
|
YJLV
|
XLPE insulated PVC sheathed
power cable
|
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
|
|
|
YJY
|
YJLY
|
XLPE insulated PE sheathed
power cable
|
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV22
|
YJLV22
|
XLPE insulated steel tape armored PVC sheathed power cable
|
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
|
|
|
YJV23
|
YJLV23
|
XLPE insulated steel tape armored PE sheathed power cable
|
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV32
|
YJLV32
|
XLPE insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
|
|
|
YJV33
|
YJLV33
|
XLPE insulated fine steel wire armored PE sheathed power cable
|
Can be laid at indoor, underground .Cable can under take mechanism outside force
|
|
