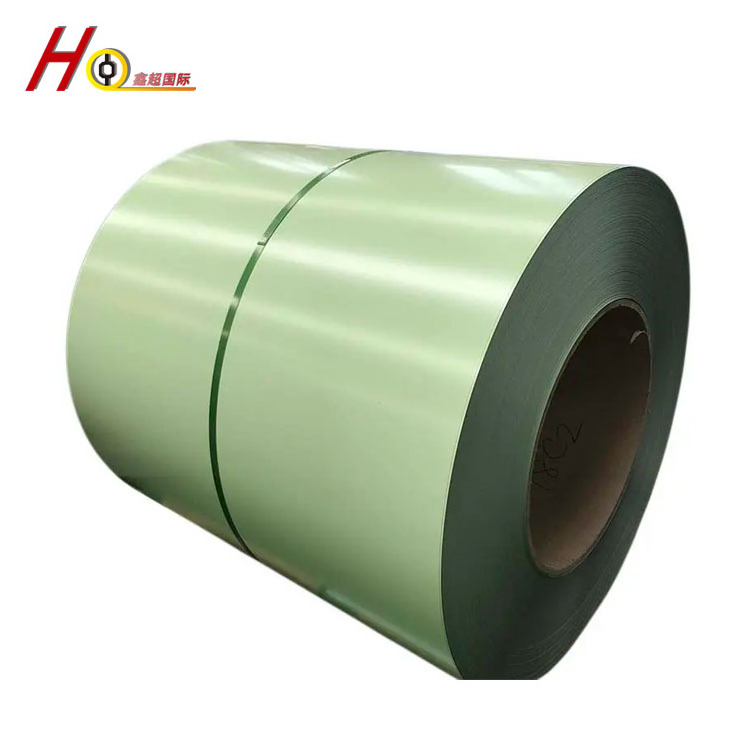

Color-Coated Steel PPGI PPGL Prepainted Steel Sheet in Coil High Quality Product Genre

Color-Coated Steel PPGI PPGL Prepainted Steel Sheet in Coil High Quality Product Genre

FOB Reference Price: Get Latest Price

≥5 Tons

US $620

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Width:: customization, 600-1500mm, can be customized as required

Length:: coil or sheet, coil or According To Customer's Demends

Product name:: Color-Coated Steel PPGI PPGL Prepainted Steel Sheet in Coil

Thickness:: 0.12-1.2mm, can be customized as required

Coil ID:: 508/610 mm

Substrate type:: GI GL CR STAINLESS EGI TINPLATE

Coating:: AZ30-AZ150, Z50-Z300g/m2

Hardness:: Softy , half hard ,hard quality

Type of coating:: 2/1 or 2/2 coating or as customized

Surface treatment:: With plastic film

Quick Details

Tolerance:: ±1%

Place of Origin:: Hebei, China

Brand Name:: ZINC GALV

Width:: customization, 600-1500mm, can be customized as required

Length:: coil or sheet, coil or According To Customer's Demends

Product name:: Color-Coated Steel PPGI PPGL Prepainted Steel Sheet in Coil

Thickness:: 0.12-1.2mm, can be customized as required

Coil ID:: 508/610 mm

Substrate type:: GI GL CR STAINLESS EGI TINPLATE

Coating:: AZ30-AZ150, Z50-Z300g/m2

Hardness:: Softy , half hard ,hard quality

Type of coating:: 2/1 or 2/2 coating or as customized

Surface treatment:: With plastic film

Product Description

Color-Coated Steel PPGI PPGL Prepainted Steel Sheet in Coil High Quality Product Genre
Thickness	0.12-1.2mm, can be customized as required	Width	600-1500mm, can be customized as required
Length	coil or According To Customer's Demends	Coil ID	508/610 mm
Substrate type	Hot dip galvanized steel (GI), hot dip galvalume steel (GL), electro galvanized steel (EGI), Cold rolled steel	Painting Thickness	PE paint top coating 15-25micron , back coating is 5-10micronif back coating is double ,thickness can be 22micron
Standard	PPGI:JIS G3303,GB/T 12754-1991; etc. PPGL:ASTM A755/M,JIS G3322,etc	Type Of Coating Process	Front : double coated & double drying Back : double coated & double drying single-coated & double drying
Hardness	Softy , half hard ,hard quality	Coil Weight	3-20metric ton per coil
Steel grade	DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC, SECE, BLCE+Z, BLDE+Z, BUSDE+Z etc. or Customer’s Requirement	Coating Types	Top coating:PE, SMP, HDP, PVDF Polyester (PE), Silicone Polyester (SMP), High Durable Polyester (HDP), Fluoropolymer (PVDF) Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester
Coating	AZ30-AZ150, Z50-Z300g/m2	Type of coating	2/1 or 2/2 coating or as customized
Coating structure: 2/1:	Top+ Prime/Back, PE/EPOXY; 20- 25 microns/5-7 micron	Processing Service	Welding, Punching, Cutting, Bending, Decoiling
Machine features:	Suitable for molding and join-up shaping, welding processes.	Lifespan:	10-15 years, very strong corrosion resistance it wouldn't
paint brand	Nippon,Akznobel,Wente,Nanshan,PPG,KCC,etc	Surface treatment	With plastic film
Advantages	1.low foundation cost 2.easy construction 3.time and labor saving Lightweight and corrosion-resistant	Coating Surface Condition	Common Coating PPGI/PPGLPrint Coating PPGI/PPGL Embossed PPGI/PPGL
Application	making pipes, cutting sheets, making small tools, making corrugated sheets, making container, making fences Inner decoration/School board/Making boxing making pipes, cutting sheets, making small tools, making corrugated sheets, making container, making fences Outdoor Construction Indoor Construction House hold appliance	Surface Color	Top/Front color: RAL No. Back/Bottom color: mill gray RAL series, wood grain, stone grain, matte grain, camouflage grain, marble grain, flower grain, nano, etc high gloss pattern , flower pattern, etc double coated, wood pattern, winkle
Quality Control	SGS testing , test zinc coating thickness/PE coating thickness/ T testing and others by every coil	Delivery Time	Stocks: at once Future order: About 30days
Tolerance:			Usage	Building Construction Material
Thickness tolerance:	'+/-0.002mm	T Bending (top/back)	≦3T/4T
Width tolerance:	'+/-2mm	Anti-MEK Wiping	100times
Total quantity tolerance:	+/-5%	T bend	< 3T
Zinc coating tolerance:	+/-5%	Pencil hardness	>2H
Sample	Sample Freely	Glossy	30%-90%
Package	1. standard seaworthy package : waterproof paper/iron sheet/steel strip/steel pallet 2. According to customers' requirements	Export market	Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

Color Coated steel coil introduce:

Color-coated steel coils are named after being coated with organic coatings of various colors by the manufacturer in coils on the
continous production line, referred to as color-coated coils.
The product usually use hot-dip galvanized sheets(GL), hot-dip galvalume sheets(GL), electro-galvanized sheets, etc. as
substrates. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic
coatings are coated (roll coating) on the surface, and then A product that is baked, solidified or curing.
and then on composit organic film(PVC film, etc.), this step is is an optional.
The substrates Processed separately into prepainted galvanized steel coil (PPGI), prepainted galvalume steel coil (PPGL).

PPGI/PPGL Sheet Coating Layer

Step 05 Top (Finish) Coating (PE/HDP/PVDF, etc.) (The most important step)

Step 04 Primer Coating
Step 03 Pre Treatment (Chromate Coating)
Step 02 Plating Layer (Zn, AL, 55%AL+Zn)
Step 01 Base Metal (Cold Rolled Steel Sheet)
Step 02 Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
Step 03 Pre Treatment (Chromate Coating)
Step 06 Functional Painting (Epoxy, Polyester )

Printing in various colors: Usually according to the color card number, but also according to the sample sent to us by the
customer.

Step 02 :AZ30-AZ150, Z50-Z300g/m2

Step 05(IMPORTANT)

Coating type:

Ordinary Polyester( PE )

Silicon Modified Polyester ( SMP )

High Weather Resistant Polyester ( HDP )
Fluorocarbon ( PVDF )

Polyester (PE):

Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and the price is
relatively cheap.

But the other degree of UV resistance and chalking resistance is relatively low. PE color coated steel can be used for the roof of
ordinary civil buildings.

Silicon modified polyester(SMP):

Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost. the hardness, wear resistance and heat resistance of the coating film are good. and the cost is higher than the PE coating. Silicone is not as good as PE in terms of adhesion and processing formability to materials.

High Durability Polyester(HDP):

Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and
anti-pulverization, good paint film adhesion, rich color, excellent cost performance. It is better than ordinary SMP coatings, and
its outdoor weather resistance reaches 16 years. Its flexibility and weather resistance are higher.

Polyvinylidene Fluoride(PVDF):

Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance,
excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.

According to customer requirements, we can add formula in the paint to meet different usages.

1. Self cleaning prepainted steel coil
2. Thermal control prepainted steel coil
3. Antistatic prepainted steel coil
4. Hydrogen perxide resistance prepainted steel coil
5. Animal husbandry prepainted steel coil

According to customer requirements, we can produce high gloss, matte, wrinkle surface, fluffy surface, granular surface.

Pattern Printing

Printing all kinds of Patterns: such as Wood grain, Rock grain, Marble grain, Granite grain, Brick grain, Camouflage grain, Flower grain, Grass grain, Warning Belt grain, Cloth grain, Silk grain, can be customized according to customer patterns.

Diamond Design Embossed

Our Diamond embossed color coated coil / sheet has good processing performance and can be processed into complex geometric figures such as flat plates, curved plate surfaces and spherical panels, fully expressing the designer's concept, not easy to stain, easy to clean, maintenance.

Related Products

Recommend Products

Product Process

Color coated steel advantages:

PPGI &PPGL has light, beautiful and good corrosion resistance, but also can be directly procssed, a variety of colors, the color isgenerally divided into gray, sea blue red and so on.

It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.

Product Application

Both PPGI PPGL are used in a wide range of industries such as advertising, construction, household appliances, elector appliances,furniture and transportation industry decoration.

Building is generally used to build the roofs , roofs structures, roller shutter door, wall, door of industrial and commercial buildings such as steel structure workshop, airport, warehouse.

In the construction industry, kiosks, gate keepers, street waiting rooms, vebtilation ducts, etc.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, electronic stove, washing machines shell, oil stove,etc.

Transportation industry is mainly used for oil pan, automobile interior parts, automobile ceiling, balk pate, enclosure car shell, tractor, ship compartment, board,etc.

Among these uses, steel structure plants, composite plate plants, and color steel tile plants are used more.
