Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD52-5E
-
Dimension(Long * Breadth * High):
-
18390*4690*4370mm
Quick Details
-
Machine Weight:
-
52000 kg
-
Dozing Capacity:
-
18.5m3
-
Marketing Type:
-
good price
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD52-5E
-
Dimension(Long * Breadth * High):
-
18390*4690*4370mm
Hot Product Links

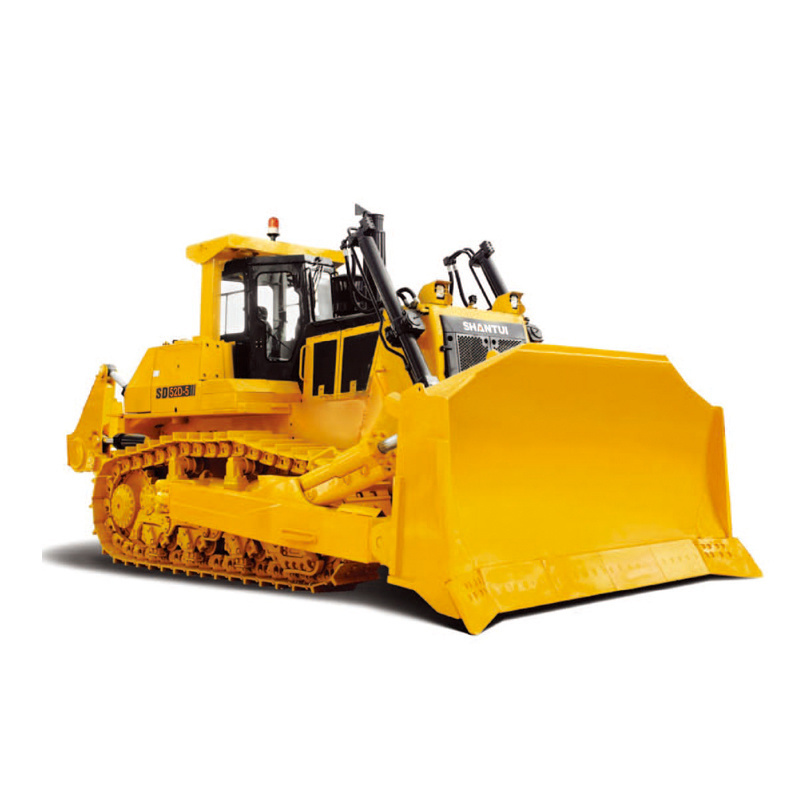

Hydraulic shantui 600HP SD52-5 crawler bulldozer with winch cheap price
Product Description
The standard semi-U blade features powerful cutting force and can handle all kinds of complicated working environments. The large single-shank ripper with adjustable angle features powerful penetrating force. It can be used not only for the ripping of clay and hard frozen earth, but also for the stripping of hard working faces, such as gravel, hardened salt mine, and rock with developed bedding.
Main Parameter
| PRODUCT | SD52-5E | ||
| (STANDARD) | |||
| PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 70630 | |
| Rated horsepower (kw/hp) | 450/604(1800) | ||
| Minimum turning radius (mm) | 3864/6786 | ||
| Ground pressure (kpa) | 151 | ||
| ENGINE | Model | CHONGQING CUMMIN S QSK19 | |
| Emission | EU ⅢA/CHINA Ⅲ | ||
| Type | In-line,water cooled,4-cycles,turbocharged,aftercooled,electric control | ||
| No.of cylinders×Bore×stroke (mm×mm) | 6×159mm×159mm | ||
| Piston displacement (L) | 19 | ||
| Horsepower/rpm (kw/rpm) | 450/1800 | ||
| Maximum torque (N.m/r/min) | 3019/1300 | ||
| DIMENSIONS | Length (mm) | 10390 | |
| Width (mm) | 4690 | ||
| Height (mm) | 4370 | ||
| TRAVELING PERFORMANCE | Forward/Reverse (km/h) | 0~11.8/0~15.8 | |
| Gradeability (deg) | 30 | ||
| Clearance (mm) | 610 | ||
| TRANSMISSION | Torque convertor | Consists of a water-cooled, | |
| 3-element, 1-stage, 1-phase, torque converter with lockup clutch | |||
| and a planetary gear, multiple-disc clutch transmission which is | |||
| hydraulically actuated and force-lubricated for optimum heat | |||
| dissipation | |||
| Gear box | Planetary gear, multi-disc clutch, power shift, forced lubrication | ||
| Main drive | Spiral bevel gear, splash lubrication, single-stage speed reduction | ||
| Clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | ||
| Brake | Wet,multi-disc,spring loaded,hydraulically separated | ||
| Final driver | Primary spur gear plus primary planetary gear reducer | ||
| Steering pump | 2 Gear pump,pump1 flow 112mL/r,pump2 flow 160mL/r | ||
| UNDERCARRIAGE | Suspension | Oscillating equalizer bar and pivot shaft | |
| Track gauge (mm) | 2500 | ||
| Shoe width (mm) | 610(710/810 optional) | ||
| Track length on ground (mm) | 3840 | ||
| Number of shoes (each side) | 40 | ||
| Pitch (mm) | 280 | ||
| Carrier rollers (each side) | 2 | ||
| Track rollers (each side) | 7 | ||
| WORKING HYDRAULIC SYSTEM | Working pump | Gear pump | |
| Scavenging pump | Gear pump | ||
| Pump of cooling system | variable displacement piston pump, standard flow 140mL/r | ||
| Valve | Multi-way valve | ||
| Bore of blade lift cylinder (mm) | φ150 | ||
| Bore of blade tilt cylinder (mm) | φ225 | ||
| Bore of ripper lift cylinder (mm) | φ225 | ||
| Bore of ripper tilt cylinder (mm) | φ200 | ||
| TANK CAPACITY | Fuel tank capacity (L) | 1140 | |
| Working hydraulic tank capacity (L) | 246 | ||
| Traveling hydraulic tank capacity (L) | 275 | ||
| EQUIPMENT | Blade width (mm) | 4690 | |
| Blade height (mm) | 2250 | ||
| Blade capacity (m³) | 18.5 | ||
| Maximum lifting height of ripper (mm) | 1105 | ||
| Maximum digging depth of ripper (mm) | 1435 | ||
