Quick Details
-
Dimension(L*W*H):
-
1680x1400x1620mm
-
Weight:
-
450 KG
-
Product name:
-
8 inch wood chipper with ce
-
After-sales Service Provided:
-
Overseas third-party support available
-
Knives:
-
Made by No. 65 manganese, 1 stationary knive, 2 rotary knives
-
Feed method:
-
Hydraulic feeding roller, automatic feed
-
Max. diameter feeding:
-
8" or 200mm
-
Engine:
-
18hp,22hp diesel engine, 40hp Changchai diesel engine
-
Start system:
-
Electric start
-
Optional parts:
-
double feeding roller,protection guard, turning lights, strong frame .
-
Certification:
-
CE certificate
-
Port:
-
Qingdao
Quick Details
-
Use:
-
cut into piece
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRD
-
Dimension(L*W*H):
-
1680x1400x1620mm
-
Weight:
-
450 KG
-
Product name:
-
8 inch wood chipper with ce
-
After-sales Service Provided:
-
Overseas third-party support available
-
Knives:
-
Made by No. 65 manganese, 1 stationary knive, 2 rotary knives
-
Feed method:
-
Hydraulic feeding roller, automatic feed
-
Max. diameter feeding:
-
8" or 200mm
-
Engine:
-
18hp,22hp diesel engine, 40hp Changchai diesel engine
-
Start system:
-
Electric start
-
Optional parts:
-
double feeding roller,protection guard, turning lights, strong frame .
-
Certification:
-
CE certificate
-
Port:
-
Qingdao

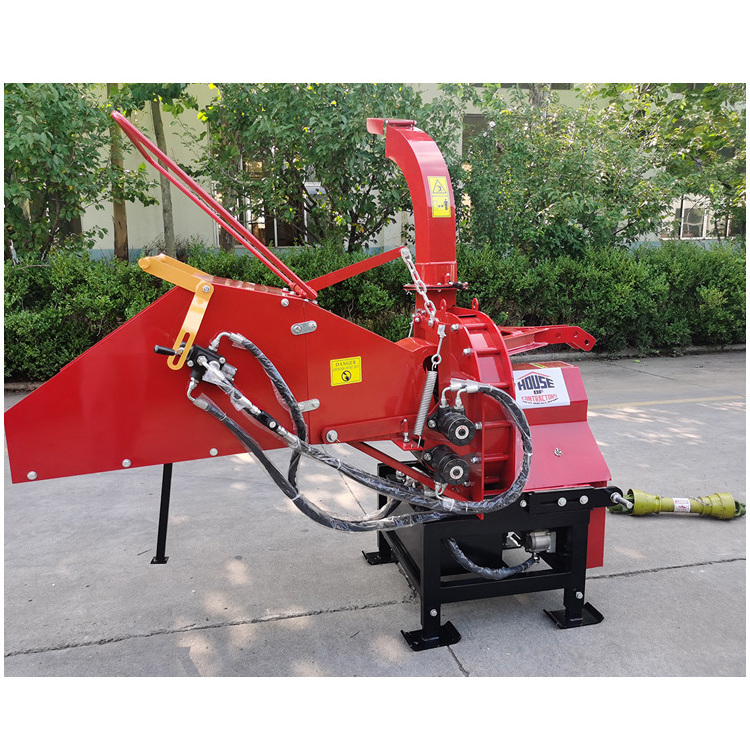

Product Description
Specification
|
MODEL
|
WC-8A
|
WC-8
|
|
Max.Dia. of Feeding
|
8"
|
8"
|
|
Power
|
Tractor 25-55hp,540/720rpm
|
Tractor 25-55hp540/720rpm
|
|
Diameter of chipper disk
|
600mm
|
600mm
|
|
Turning speed of chipper disk
|
1080rpm/1440rpm
|
1080rpm/1440rpm
|
|
Feeding System
|
Hydraulic Feeding，Adjustable Speed,Stop-Reverse-Forward Function
|
Feeding by Worm Reduction Gear(4mm/s)Only Forward Function
|
|
Number of Blades
|
2PCS
|
2PCS
|
|
Chip Size
|
Thickness≤4mm
|
Thickness≤4mm
|
|
Rotation Angle of Discharge Spout
|
360 degree
|
360 degree
|
|
Weight
|
400kg
|
380kg
|
|
Working Efficiency
|
8~9m3/h
|
7~8m3/h
|
|
Volume of hydraulic tank
|
26L
|
/
|
|
Package dimension (WXDXH) mm
|
1180X900X1220
|
1160X900X1220
|
