Quick Details
-
Weight:
-
1300 KG
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Recovery concentration:
-
85°Calcohol degree
-
Pressure:
-
0.03-0.09mpa
-
Material:
-
SUS304/316
-
Type:
-
Concentrator
-
Application:
-
Liquid
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYSLY
-
Voltage:
-
220v-415v
-
Weight:
-
1300 KG
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Recovery concentration:
-
85°Calcohol degree
-
Pressure:
-
0.03-0.09mpa
-
Material:
-
SUS304/316
-
Type:
-
Concentrator
-
Application:
-
Liquid
-
Certification:
-
ISO
Product Description

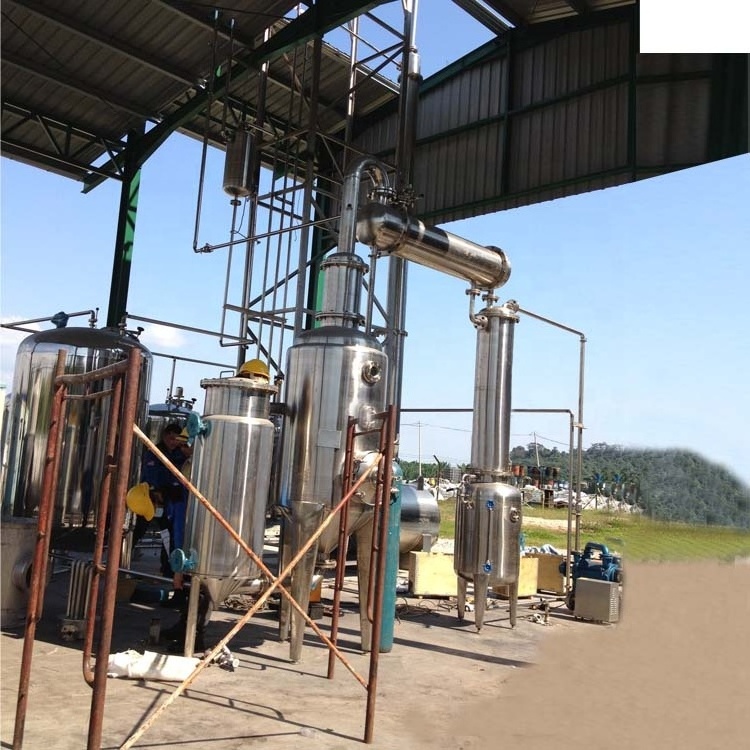

Single purpose external cycling vacuum contractor Multi-function alcohol recovery concentrator
Features:
1. Alcohol recovery:
◊ Adopt the vacuum science and technology operational method and improve the technological process of the equipment.
◊ Large recovery capacity. The recovery rate can reach 95%.
◊ The alcohol consumed rate <5%, reduce 30% energy consumption.
So it is an energy-saving equipment with small investment and high recovery profit.
2. Concentrated liquid material:
◊ Combination of external heating cycling and vacuum subatmospheric pressure vaporizing;quick vaporizing;
◊ High condensing specific gravity (1.4);
◊ Simple operation; small space occupying; nice appearance;
◊ Intact producing material after heating, evaporating and heat preservation;
◊ All the sections touched with liquid materials adopt the SUS304 stainless steel. The surface is mirror polished and dull polished which is up to your choose;
◊ In the closed space, non- bubble concentration of the liquid material, the drug liquid after concentration by the device features non-contamination and thick drug taste and easy cleaning
◊ Conforms to the GMP standard requirement.
Specification
Specification
|
DY-500
|
DY-1000
|
DY-1500
|
||
Evaporation Capacity(kg/h)
|
500
|
1000
|
1500
|
||
Alcohol Recovery Ability
|
200kg/h
|
350kg/h
|
500kg/h
|
||
Recovery concentration
|
85°Calcohol degree
|
|
|
||
Pressure
|
0.03-0.09mpa
|
|
|
||
Evaporating Temperature
|
40-85°C
|
|
|
||
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
|
