Quick Details
-
Place of Origin:
-
Guangdong
-
Frequency Range:
-
4800-6500MHz
-
Gain:
-
29dBi
-
VSWR:
-
1.8
-
Connector:
-
RP-SMA
-
Polarization:
-
±45°
-
Application:
-
Wireless Wifi
-
Maximum input power (W):
-
50
-
Product name:
-
MIMO Dish Antenna
-
Keywords:
-
5GHz MIMO parabolic antenna
Quick Details
-
Type:
-
5GHz Antenna, Wifi Communication Antenna
-
Brand Name:
-
XJS
-
Model Number:
-
XJS-DP-D4865-29X
-
Place of Origin:
-
Guangdong
-
Frequency Range:
-
4800-6500MHz
-
Gain:
-
29dBi
-
VSWR:
-
1.8
-
Connector:
-
RP-SMA
-
Polarization:
-
±45°
-
Application:
-
Wireless Wifi
-
Maximum input power (W):
-
50
-
Product name:
-
MIMO Dish Antenna
-
Keywords:
-
5GHz MIMO parabolic antenna
|
Model
|
XJS-DP-D4865-29X
|
|
Frequency Range
|
4800-6500MHz
|
|
Gain
|
29dBi
|
|
VSWR
|
≤1.8
|
|
Polarization Type
|
±45degree
|
|
Input Impedance
|
50Ω
|
|
Horizontal Beamwidth
|
6.5°
|
|
Vertical Beamwidth
|
6.5°
|
|
F/B Ratio
|
40dB
|
|
Maximum Power
|
50W
|
|
Connector Type
|
2*SMA
|
|
Lighting Protection
|
DC Ground
|
|
Dimension
|
420*420*120mm
|
|
Weight
|
6kg/2pcs
|
|
Rated Wind Velocity
|
126/ms
|
|
Working Temperature
|
-40℃~+65℃
|
Radiation Pattern
This model is developed by our designers who have extensive industry experience. With this new and unique design, it meets the user's high gain requirements. Besides, with a very small volume, it's a good choice to save buyer's shipping cost.

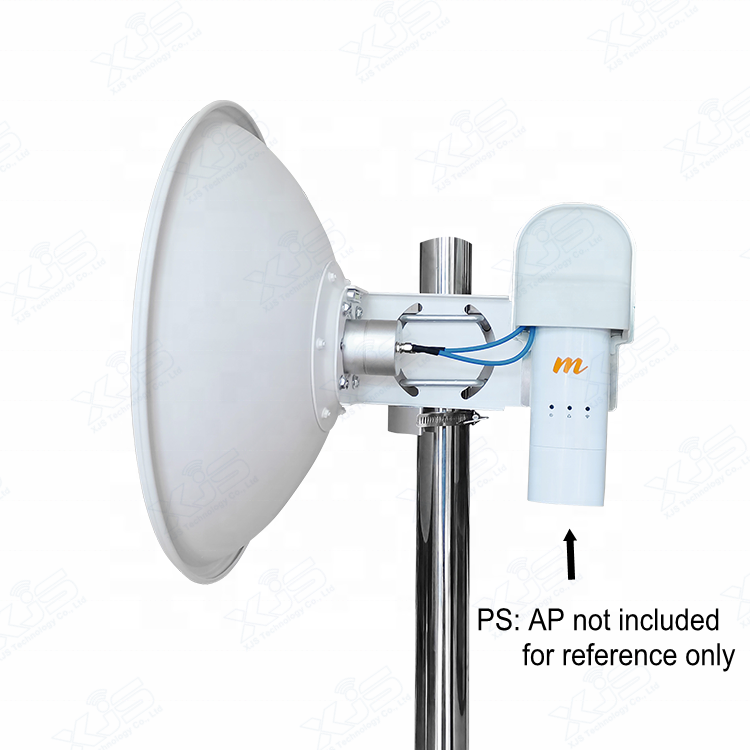

Details Images
The model TDD-4865-29, with its small size and high gain as the selling point, has become the main product of XJS Technology Co., Ltd. The model TDD-4865-29 operates in the frequency range from 4800-6500 MHz. Its 42cm diameter and 29dBi gain make it a standout in the market for the same type of products with large volume and high gain or small volume and low gain.
This product has become a better choice for customers seeking high performance and transportation cost savings.
Features
* Extended frequency: 4.8 to 6.5 GHz
* Top-ranking noise immunity
* Small size with high gain
* Incredible RF performance, ultra rugged
* 4.8 GHz public safety band 5 GHz 802.11a/n, 802.11ac
* 6.2 GHz/6.4 GHz band
