Quick Details
-
Warranty:
-
1month
-
Product name:
-
Chinese Motorcycle Engines
-
Model:
-
180CC
-
Type:
-
Motocycle Engine
-
Quality:
-
Great
-
Dimension(L*W*H):
-
626*435*300MM
-
Packing Size (L*W*H):
-
720*460*320MM
-
Maximum power:
-
7.5kw /6500 r/min
-
Maximum torque:
-
10.0 Nm /600 r/min
-
Maximin null-load speed:
-
1700±100r/min
-
Maximin fuel comsumption:
-
≤374g/kW/h
Quick Details
-
Displacement (ml):
-
180CC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMAP
-
Warranty:
-
1month
-
Product name:
-
Chinese Motorcycle Engines
-
Model:
-
180CC
-
Type:
-
Motocycle Engine
-
Quality:
-
Great
-
Dimension(L*W*H):
-
626*435*300MM
-
Packing Size (L*W*H):
-
720*460*320MM
-
Maximum power:
-
7.5kw /6500 r/min
-
Maximum torque:
-
10.0 Nm /600 r/min
-
Maximin null-load speed:
-
1700±100r/min
-
Maximin fuel comsumption:
-
≤374g/kW/h

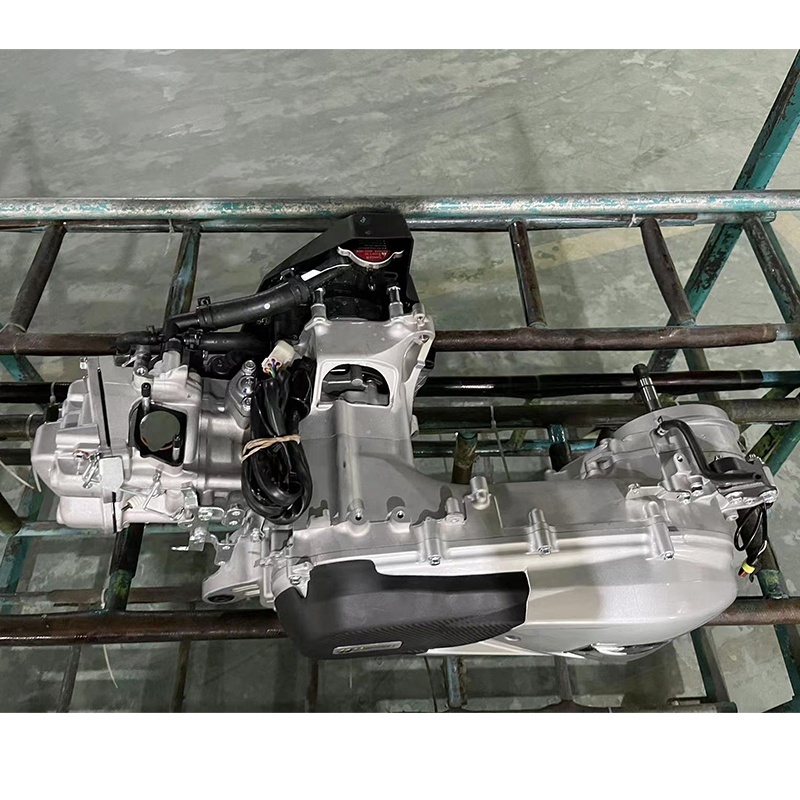

Products Description
|
Dimension(L×W×H)
|
626×435×300MM
|
V-BELT
|
Gates or Banto
|
|
Packing Size (L*W*H)
|
720*460*320MM
|
Crankcase
|
Hongxi
|
|
Displacement
|
177.3ml
|
Spark Plug
|
NGK
|
|
Bore
|
62.5mm
|
Piston Rings
|
ATG
|
|
Stroke
|
57.8mm
|
Cylinder hard
|
AIBO
|
|
Compression ratio
|
10:01
|
Cylinder
|
Ninggang
|
|
Ignition
|
CDI
|
Pully wheel
|
Zhenghua
|
|
Maximum power
|
7.5kw /6500 r/min
|
Clutch
|
AIBO
|
|
Maximum torque
|
10.0 N·m /600 r/min
|
Starting Comp.
|
Kangbin
|
|
Maximin null-load speed
|
1700±100r/min
|
Magnetor
|
Shenshun
|
|
Maximin fuel comsumption
|
≤374g/kW·h
|
Engine Case
|
Long type, Tianya
|
|
N.W./G.W.(KG)
|
25.4/28.1
|
Gears
|
Zhongma
|
Before placing an order for motorcycle engine, please confirm the following information：
1. Magneto : AC 8 poles, DC 8 poles or DC11 poles?
2. Long engine case or short engine case?
3. Long axle or short axle?
4. Drum brake or disc brake?
5. To equip 2nd air injection or not?
6. To engrave Engine family No. or not (For American market only)?
