Quick Details
-
Return Force (kN):
-
50 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hong Jin
-
Year:
-
2023
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
5 T
-
Motor Power (kw):
-
4.5 kw
-
Product name:
-
Desktop Servo Electronic Press
-
Color:
-
Costomized
-
Power Source:
-
Hydraulic
-
Material:
-
Steel Material
-
Size:
-
Custmized
-
After-sales Service Provided:
-
Video Support
-
Brand:
-
hong jin
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
250mm
-
Ejector Force (kN):
-
Custom
-
Return Force (kN):
-
50 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hong Jin
-
Year:
-
2023
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
5 T
-
Motor Power (kw):
-
4.5 kw
-
Product name:
-
Desktop Servo Electronic Press
-
Color:
-
Costomized
-
Power Source:
-
Hydraulic
-
Material:
-
Steel Material
-
Size:
-
Custmized
-
After-sales Service Provided:
-
Video Support
-
Brand:
-
hong jin
Product Description
Product Introduction

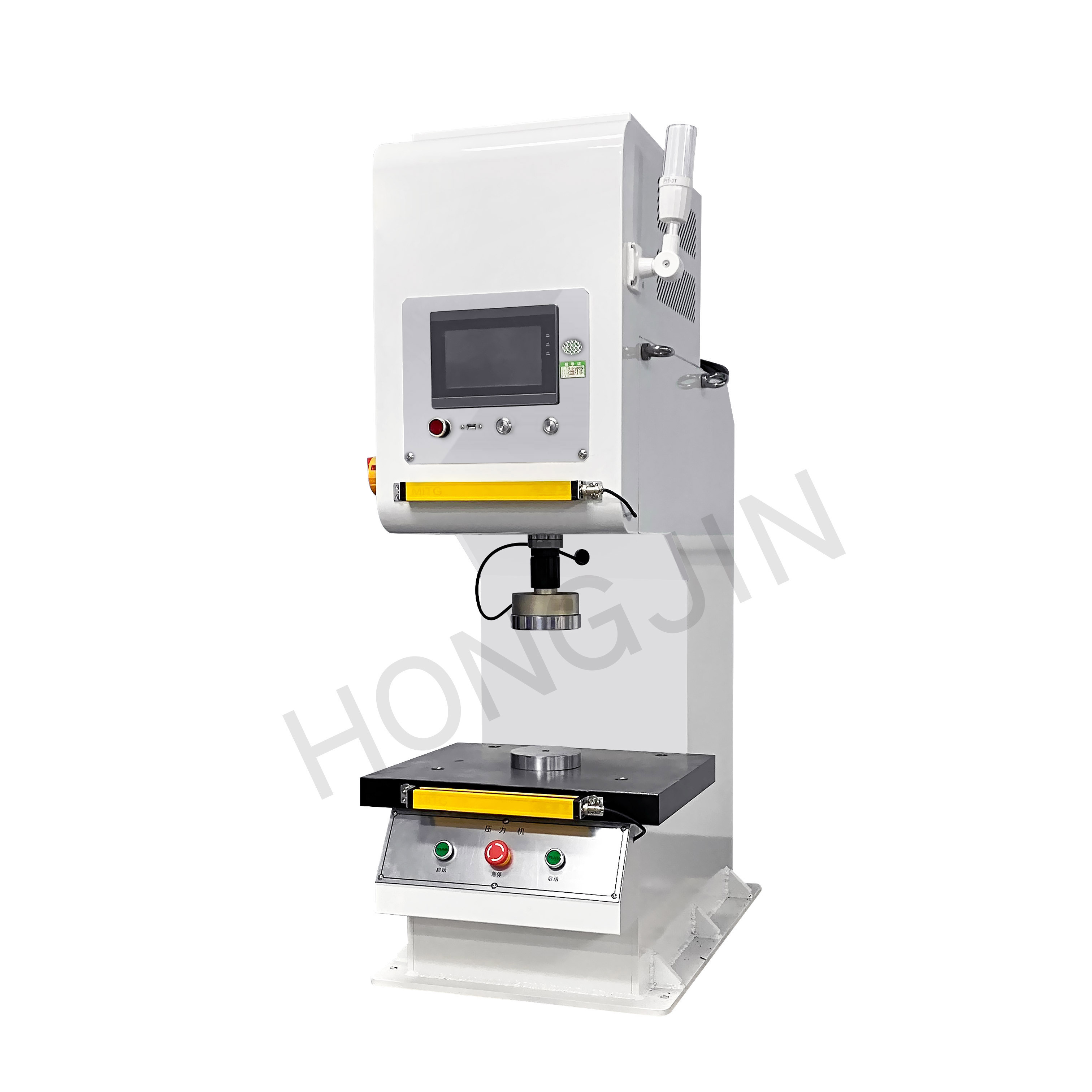

Table type servo electronic press
Precision CNC servo electronic press is referred to as electronic press/servo press. Its working principle is that the servo motor drives the high-precision ball screw for precision pressure assembly. It can realize the closed-loop control of the whole process of pressing force and pressing depth in the pressure assembly operation. Application fields: automotive parts precision assembly application, electronic products precision assembly application, IT and photography technology core components precision assembly application, precision pressure test application.
Automotive industry: engine assembly (cylinder head, cylinder liner, oil seal, etc.) steering gear assembly (gear, pin, etc.) drive shaft assembly, gearbox assembly, brake disc assembly, etc.Electronic industry: circuit board assembly (plug-in, etc.), electronic parts assembly.Motor industry: micromotor assembly (spindle, shell, etc.) Motor assembly (bearing, spindle, etc.).Home appliance industry: home appliance parts pressing, home appliance parts riveting, etc. Mechanical industry: mechanical parts press assembly, automation line, wear parts life test.Other industries: Other need precision CNC pressing displacement and pressing force occasions.
Product Paramenters
|
Nominal force of electric cylinder:
|
5KN
|
|
Equipment displacement accuracy:
|
The 0.01 mm
|
|
Rated speed:
|
No-load speed: 10-100/S pressing speed: 0.1-20/S
|
|
Repeatability of measuring equipment pressure:
|
Plus or minus 0.5% F.S
|
|
Spindle to body depth:
|
105mm
|
|
Upper head mounting hole size:
|
Diameter 15
|
|
Effective area of table:
|
290*210mm
|
|
Mode selection:
|
Position mode: constant speed, set the absolute position to reach the press stop; Pressure mode: constant speed, relative pressure to press stop;
|
|
Procedure:
|
Program parameter store Settings
|
|
Curve:
|
On-line pressure curve output
|
