Quick Details
-
Input Voltage(V):
-
DC 32V
-
Luminous Intensity:
-
Bright
-
Luminous Flux(lm):
-
8000-8500
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
140
-
Color Temperature:
-
6000-7000k
-
Operating Temperature(℃):
-
-25 - 85
-
Storage Temperature(℃):
-
-35 - 105
-
Place of Origin:
-
Guangdong, China
-
Shape:
-
square
-
Chip Brand:
-
Bridgelux,45*45mil
-
Voltage(V):
-
32-34
-
Forward current(mA):
-
2800
-
Color:
-
White
-
Lamp Luminous Efficiency(lm/w):
-
110
Quick Details
-
Warranty(Year):
-
2-Year
-
Luminous Efficacy(lm/w):
-
110
-
Color Rendering Index(Ra):
-
70
-
Input Voltage(V):
-
DC 32V
-
Luminous Intensity:
-
Bright
-
Luminous Flux(lm):
-
8000-8500
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
140
-
Color Temperature:
-
6000-7000k
-
Operating Temperature(℃):
-
-25 - 85
-
Storage Temperature(℃):
-
-35 - 105
-
Place of Origin:
-
Guangdong, China
-
Shape:
-
square
-
Chip Brand:
-
Bridgelux,45*45mil
-
Voltage(V):
-
32-34
-
Forward current(mA):
-
2800
-
Color:
-
White
-
Lamp Luminous Efficiency(lm/w):
-
110

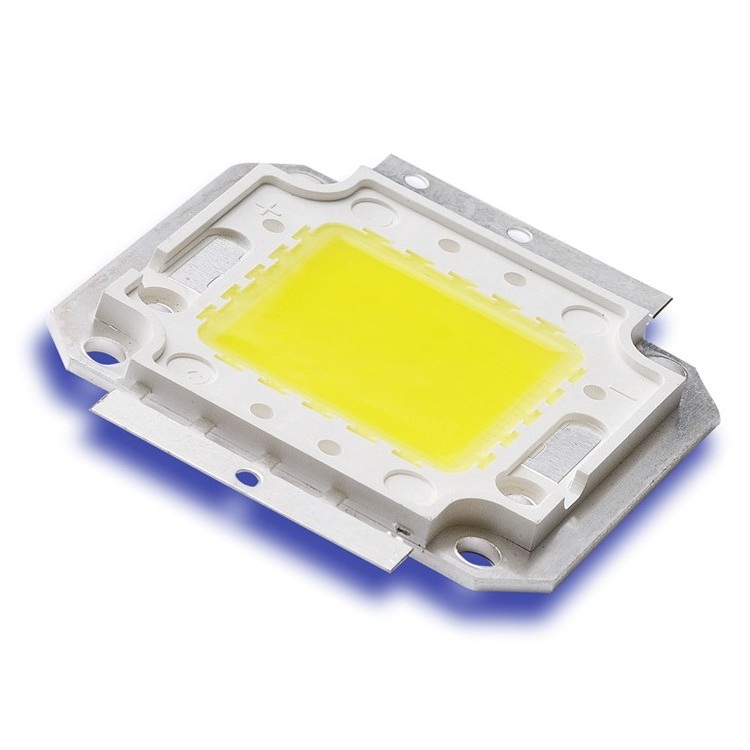

| sell COB 80w 6500K white cob led for working lights |
Product Features
• Well-known chip material
• 99.99% gold wire bonding
• High flux per LED
• More energy efficient than incandescent and most halogen lamps
• Instant light(less than 100ns)
Product Dimensions
Product Electric Data
Optical character curves
Typical Applications
• Indoor/outdoor lighting:spotlight, ceiling light, track light
•
Building and landscape lighting:floodlight, clean wall light, gardening light
•
Road lighting:road light, courtyard light, tunnel light
Static Electricity
• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic glove be used when handing the LEDs.
• A tip soldering iron is requested to be grounded, An ionizer should also be installed where risk of static.
• All devices, equipment and machinery must be properly grounded, It is recommended that measures be taken against surge voltage to the equipment that mounts the High Power LED.
Heat generation
• When the LEDs are illuminating, operating current should be decided after be considering the ambient maximum temperature.
• Please consider the heat generation of the LED when it is designed the PCB.
• The LEDs must be mounted on metal core PCB or heat sink or applied thermal pad.
Attention: Electric Static Discharge (ESD) Protection
The symbol shown above herein to introduce "Electro-Optical-Characteristics". ESD protection for AIGaInP and InGaN is based chips is still necessary even though they are safe in low static-electic discharge. Material in AIGaInP and InGaN based chips are STATIC SENSITIVE devices. ESD protection has to considered and taken in the initial design stage. If manual work is needed, please ensure the device is well protective from ESD during all the process.
