- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Clients Local Standard, 220V/380V
-
Dimension(L*W*H):
-
4500*1850*1550mm
-
Weight:
-
930 KG
-
After-sales Service Provided:
-

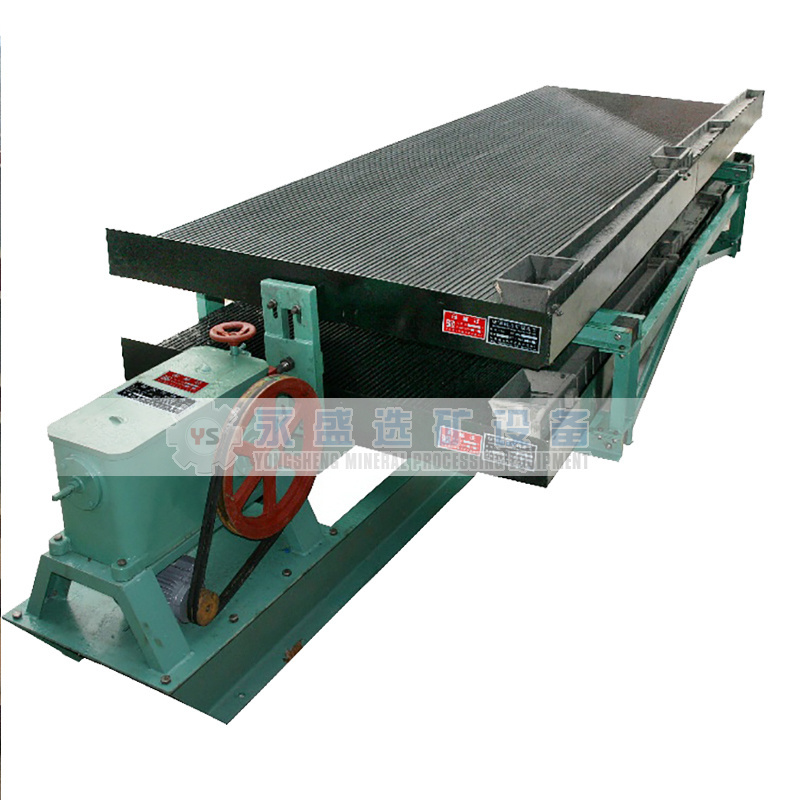

Gemini Tin Copper Gold Separating Machine Shaking Table
-
Water consumption:
-
0.7-1 t/h, water can be recyle for Shaking table
-
Feeding Size:
-
0.074mm-2mm
-
Application:
-
placer (gold),tungsten,tin,tantalum,niobium,iron,Mn,coal,tungsten,tin
-
Test:
-
We can supply gold shaking table for client's sample testing
-
Deck material:
-
Fiberglass lined with polyurethane and corundum
-
Stroke:
-
16-22mm
-
Installation:
-
Supply you detailed installation Steps in videos, photos and words
Quick Details
-
Production Capacity:
-
1~1.8tph
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Yongsheng gold shaking table
-
Voltage:
-
Clients Local Standard, 220V/380V
-
Dimension(L*W*H):
-
4500*1850*1550mm
-
Weight:
-
930 KG
-
After-sales Service Provided:
-
Gemini Tin Copper Gold Separating Machine Shaking Table
-
Water consumption:
-
0.7-1 t/h, water can be recyle for Shaking table
-
Feeding Size:
-
0.074mm-2mm
-
Application:
-
placer (gold),tungsten,tin,tantalum,niobium,iron,Mn,coal,tungsten,tin
-
Test:
-
We can supply gold shaking table for client's sample testing
-
Deck material:
-
Fiberglass lined with polyurethane and corundum
-
Stroke:
-
16-22mm
-
Installation:
-
Supply you detailed installation Steps in videos, photos and words
|
Model |
6-S4500 |
6-S3000 |
6-S2100 |
6-S1100 |
|||
|
Deck type |
Coarse deck |
Fine deck |
Slime deck |
Three type of decks optional |
|||
|
Beneficiation area(m ²) |
7.6 |
7.6 |
7.6 |
4.08 |
1.95 |
0.5 |
|
|
Deck size |
Length(mm) |
4500 |
4500 |
4500 |
3000 |
2100 |
1100 |
|
Transmission end width(mm) |
1850 |
1850 |
1850 |
1320 |
1050 |
500 |
|
|
concentrate end width(mm) |
1550 |
1550 |
1550 |
1100 |
850 |
430 |
|
|
Stroke ( mm ) |
16-22 |
11-16 |
8-16 |
6-30 |
12-28 |
9-17 |
|
|
Frequency of stroke(r/min) |
220 |
250 |
280 |
210-320 |
250-450 |
280-460 |
|
|
Max feeding size(mm) |
2 |
0.5 |
0.074 |
Sand-2 Slime-0.1 |
Sand-2 Slime-0.074 |
Sand-2 Slime-0.074 |
|
|
Water consumption(t/h) |
0.7-1 |
0.4-0.7 |
0.4-0.7 |
0.3-1.5 |
0.2-1 |
0.1-0.5 |
|
|
Slope (° ’ ) |
0-5 |
0-10 |
0-8 |
0-8 |
|||
|
Motor power |
1.1Kw |
0.5Kw |
|||||
Q: What is the payment terms ?
A: 1.Total payment lower than 3000USD : 100% payment by T/T before delivery.
2.Total payment higher than 3000USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
3.Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
