Quick Details
-
Power (kW):
-
18.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bole Tech
-
Voltage:
-
220V/ 380V/ 400V/ 440V/ 480V
-
Dimension(L*W*H):
-
According to the model
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
New Product 2022
-
Function:
-
Super fine grinding
-
Capacity:
-
50~1000kg/h
-
Rotary speed speed of main shaft:
-
2900~4500rpm
-
Feeding size:
-
10~18mm
-
Output size:
-
80~450 meshes
-
Work type:
-
Continuous type
-
Explosion proof:
-
Option
-
Control system:
-
Button type
-
After sales service:
-
Engineer go to guide installation and commissioning
Quick Details
-
Output (kg/h):
-
50 - 1000 kg/h
-
Feeding Size (mm):
-
10 - 18 mm
-
Output Size (mesh):
-
80 - 450 mesh
-
Power (kW):
-
18.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bole Tech
-
Voltage:
-
220V/ 380V/ 400V/ 440V/ 480V
-
Dimension(L*W*H):
-
According to the model
-
Weight (KG):
-
500 KG
-
Marketing Type:
-
New Product 2022
-
Function:
-
Super fine grinding
-
Capacity:
-
50~1000kg/h
-
Rotary speed speed of main shaft:
-
2900~4500rpm
-
Feeding size:
-
10~18mm
-
Output size:
-
80~450 meshes
-
Work type:
-
Continuous type
-
Explosion proof:
-
Option
-
Control system:
-
Button type
-
After sales service:
-
Engineer go to guide installation and commissioning
General description of Ultra Fine Crushing Machine

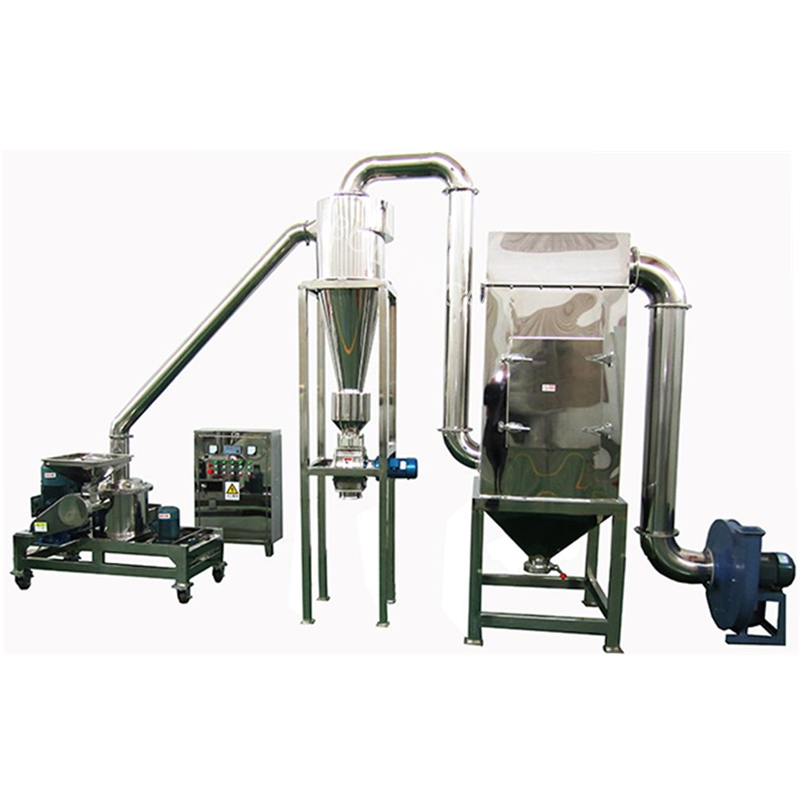

WFJ Ultra Fine Crushing Machine consists of feeding device, main machine (including classification device), transferring pipe, cyclone separator, bag filter and fan, etc. It features compact design, reasonable structure, and no sieve. There is classification device in the machine, it can make the grinding and classification one time. Negative pressure can exhaust the heat that generated during the grinding work, so it is suitable for grinding thermal sensitive material as well. The application range of this machine is wide, can continuously work and discharge size is adjustable. It can be used for grinding and classification for materials such as: chemical products, foodstuff, animal remedy , health products, cosmetics, dyestuff, resin and shell, etc.
Parameters of Ultra Fine Crushing Machine
|
Model |
WFJ-15 |
WFJ-18 |
WFJ-36 |
WFJ-60 |
|
Capacity (kg/h) |
10-200 |
20-450 |
60-1000 |
100-1500 |
|
Feed size (mm) |
<10 |
<12 |
<15 |
<18 |
|
Discharge size (mesh) |
80-320 |
80-450 |
80-450 |
80-450 |
|
Total power (Kw) |
13.7 |
19.07 |
38.85 |
65.2 |
|
Main rotary speed (rpm) |
4500 |
4480 |
4000 |
4000 |
|
Overall size (mm) |
5410×1660×2500 |
5500×1800×3100 |
9000×2200×4000 |
9000×2700×5280 |
