Quick Details
-
Table Travel (Z) (mm):
-
100 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product
-
Range of Spindle Speed(r.p.m):
-
1440 r.p.m
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
WELLDE
-
Weight (T):
-
0.07 T
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
100 mm
-
Table Travel (Y) (mm):
-
100 mm
-
Table Travel (Z) (mm):
-
100 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product
-
Range of Spindle Speed(r.p.m):
-
1440 r.p.m
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
WELLDE
-
Weight (T):
-
0.07 T
Products Description

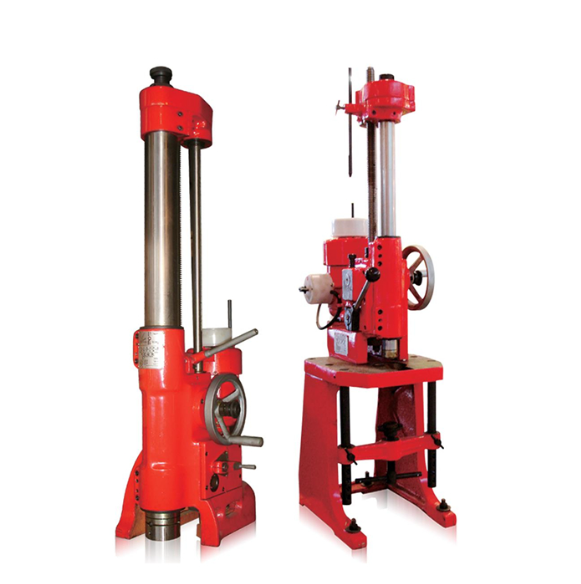

High-quality Cylinder Boring Machine T808A
Specification
|
Model
|
T806
|
T806A
|
T807
|
T808A
|
|
|
Boring diameter
|
39-60mm
|
46-80mm
|
39-70mm
|
50-85 mm
|
|
|
Max. boring depth
|
160 mm
|
|
160 mm
|
170 mm
|
|
|
Spindle speed
|
486 r/min
|
|
486 r/min
|
394 r/min
|
|
|
Spindle feed
|
0.09 mm/r
|
|
0.09 mm/r
|
0.10 mm/r
|
|
|
Spindle quick reset
|
Manual
|
|
Manual
|
Manual
|
|
|
Motor voltage
|
220/380 V
|
|
220/380 V
|
220/380 V
|
|
|
Motor power
|
0.25 Kw
|
|
0.25 Kw
|
0.25 Kw
|
|
|
Motor speed
|
1440 r/min
|
|
1440 r/min
|
1440 r/min
|
|
|
Overall dimension
|
330x400x1080 mm
|
|
330x400x1080 mm
|
350x272x725 mm
|
|
|
Machine weight
|
80 kg
|
|
80 kg
|
75kg
|
|
