Quick Details
-
Wireless communication:
-
WirelessHart / Zigbee
-
Type:
-
differential pressure gauge
-
Output signal:
-
4-20mA
-
Measuring Range:
-
0~500Pa~...~3.5MPa
-
Accuracy:
-
0.05/0.1/0.2/0.5 grade
-
Operating temperature:
-
-30~70℃
-
Operating frequency:
-
1-60Hz
-
Process connection:
-
1/2,1/4,1/8 NPT or G1/2,G3/4,G1/8,G3/8
-
Power supply mode:
-
3.6V high-volume lithium battery
-
Weight:
-
1 Kg
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ANCN
-
Model Number:
-
ACD-Z3
-
Wireless communication:
-
WirelessHart / Zigbee
-
Type:
-
differential pressure gauge
-
Output signal:
-
4-20mA
-
Measuring Range:
-
0~500Pa~...~3.5MPa
-
Accuracy:
-
0.05/0.1/0.2/0.5 grade
-
Operating temperature:
-
-30~70℃
-
Operating frequency:
-
1-60Hz
-
Process connection:
-
1/2,1/4,1/8 NPT or G1/2,G3/4,G1/8,G3/8
-
Power supply mode:
-
3.6V high-volume lithium battery
-
Weight:
-
1 Kg

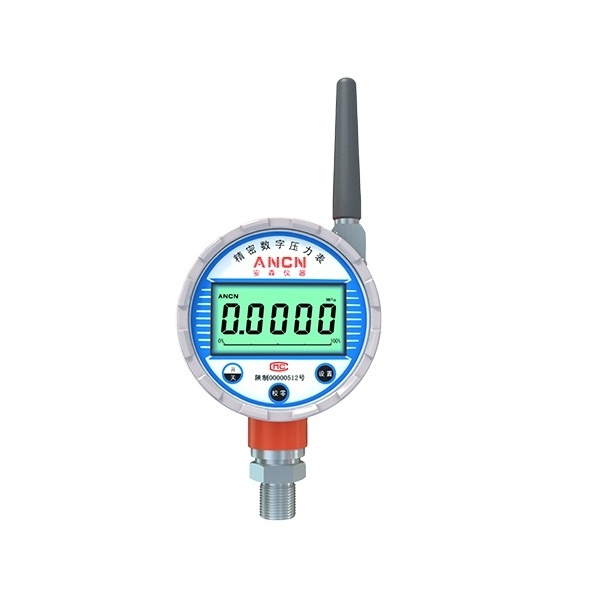

ACD-Z3 Wireless Digital Pressure Gauge
is mainly composed of pressure sensor, signal processing circuit, CPU and communication circuit. The gauge adopts the lithium battery with large capacity and high performance, so the service life of the battery is 1 to 2 years, and no external power is required. The remote real time monitoring can be realized, no site wiring is required, eliminating site wiring, therefore labor cost and construction cost are saved. The instrument is especially applicable for the oil deposit and oil well which lack of site power supply and require data for the real time transmission, as well as circulation detection of pipelines output for heat supply, water well pressure and other purposes. The instrument can be used together with our ACI-2 wireless communications terminal.
* Applicable for calibration of pressure (differential pressure) transmitter, precise pressure gauge, general
pressure gauge, sphygmomanometer and other pressure instruments and gauges.
* Measurement accuracy is up to Grade 0.05, which can meet high accuracy pressure acquisition requirements;
* Meet pressure display requirements of corrosivity, impact strength, vibration and other areas;
* Substitute of traditional pressure gauge, can be used as standard pressure gauge;
* Calibration standard instrument of all industries.
* Measurement accuracy up to Grade 0.05;
* Magnetic pen induction button design;
* Visually display the percentage bargraph;
* Acquisition speed can be set;
* Anti electromagnetic interference and radio-frequency interference technology
* Zeropoint homeostasis technology；
* Temperature compensation technology
|
Display unit
|
Pa kPa MPa psi bar mbar kgf/cm2 inH2O mmH2O inHg mmHg
|
|
|
|
Measuring Range
|
Gage Pressure
|
-0.1MPa~260MPa
|
|
|
|
Differential Pressure
|
0~3.5MPa
|
|
|
|
Absolute Pressure
|
0~60MPa
|
|
|
Accuracy grade
|
0.05 / 0.1 / 0.2 / 0.5
|
|
|
|
Power supply mode
|
build-in one 3.6V high power lithium battery
|
|
|
|
Picking rate
|
1-60s per time, standard 5s per time, time can be controlled
|
|
|
|
Stability performance
|
<0.1% FS per year
|
|
|
|
Battery life
|
3 years
|
|
|
|
Operating temperature
|
30℃~70℃
|
|
|
|
Relative humidity
|
<90%
|
|
|
|
Barometric pressure
|
86-106KPa
|
|
|
