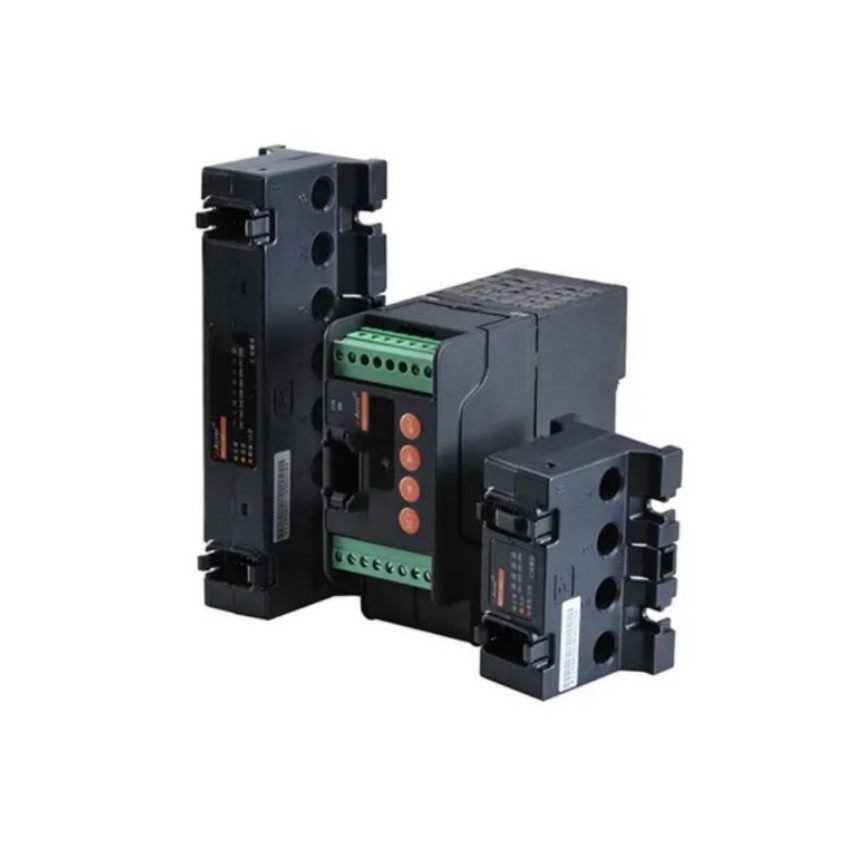

AGF-M Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the data to master device.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-
AGF-M24T
-
Accuracy Class:
-
Class 0.5
-
Operating Temperature:
-
-35~+65℃
-
Dimensions:
-
144mm*46mm*55mm
-
Rated current:
-
DC 0~20A
-
Communication:
-
RS485/ModBus-RTU protocol,4800/9600/19200/38400bps
-
Altitude:
-
≤3000m
-
Insulation resistance:
-
≥100MΩ
-
Input channel:
-
4
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-999999.99kwh
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Acrel
-
Model Number:
-
AGF-M24T
-
Accuracy Class:
-
Class 0.5
-
Operating Temperature:
-
-35~+65℃
-
Dimensions:
-
144mm*46mm*55mm
-
Rated current:
-
DC 0~20A
-
Communication:
-
RS485/ModBus-RTU protocol,4800/9600/19200/38400bps
-
Altitude:
-
≤3000m
-
Insulation resistance:
-
≥100MΩ
-
Input channel:
-
4
Introduction
Technical Parameters
|
Item
|
AGF-M4T
|
AGF-M8T
|
AGF-M12T
|
AGF-M18T
|
AGF-M20T
|
AGF-M24T
|
||||||
|
Input channels
|
4
|
8
|
12
|
18
|
20
|
24
|
||||||
|
Rated current
|
DC 0~20A
|
|
|
|
|
|
||||||
|
Response time
|
1s
|
|
|
|
|
|
||||||
|
Accuracy
|
0.5 class
|
|
|
|
|
|
||||||
|
Temperature
coefficient |
400ppm
|
|
|
|
|
|
||||||
|
RS485
communication |
RS485/ModBus-RTU protocol，4800/9600/19200/38400bps
|
|
|
|
|
|
||||||
|

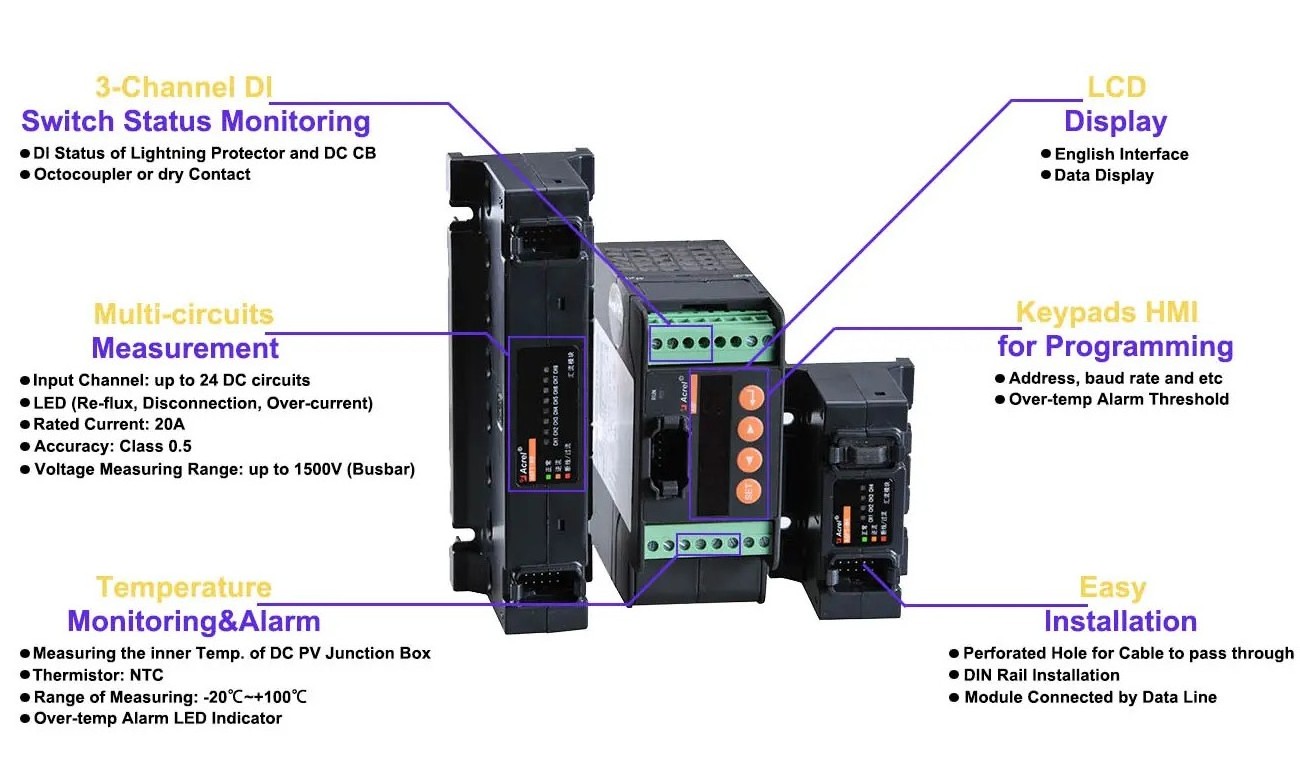

Additional function
|
|
|
|
|
|
|
||||||
|
Switch input
|
3-way input(optocoupler or dry contact mode)
|
|
|
|
|
|
||||||
|
General technical parameters
|
|
|
|
|
|
|
||||||
|
Temperature/
Humidity |
Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place
*Display module work temperature:-20~+70℃ |
|
|
|
|
|
||||||
|
Temperature
measurement
function
|
To measure the inner temperature of box （-20℃～100℃）
|
|
|
|
|
|
||||||
|
Altitude
|
≤3000m
|
|
|
|
|
|
||||||
|
Insulation
resistance |
≥100MΩ
|
|
|
|
|
|
||||||
|
Industrial
frequency withstand voltage |
power/communication/switching input/cell voltage input--AC 2kV/1min
(When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuit is AC 2.7kV) Current input/power、cell voltage 、communication、switching state—AC3.5kV/1min |
|
|
|
|
|
||||||
|
EMC
|
GB_T 17626.2-2006；
Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV. |
|
|
|
|
|
||||||
|
|
GB_T 17626.4-2008；
Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV |
|
|
|
|
|
||||||
|
|
GB_T 17626.5-2008；
Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV |
|
|
|
|
|
||||||
|
|
GB_T 17626.8-2006；
Power frequency magnetic field immunity test grade 4
|
|
|
|
|
|
||||||
