Quick Details
-
Power:
-
4.5KW
-
Table Size:
-
2277*1120mm
-
Overall Dimensions:
-
2480*1190*2600mm
-
Weight:
-
3100 kg
-
Product name:
-
Scissor Lift Platform
-
Application:
-
High Altitude Working
-
Keywords:
-
Electric Scissor Lift Platform
-
Usage:
-
Single Person
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Feature:
-
Easy Operation Safety Convenience
-
Material:
-
Stainless steel
-
Lifting height:
-
14m
-
Color:
-
customrize
-
Voltage:
-
customrize
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Chian
-
Brand Name:
-
Yugong
-
Power:
-
4.5KW
-
Table Size:
-
2277*1120mm
-
Overall Dimensions:
-
2480*1190*2600mm
-
Weight:
-
3100 kg
-
Product name:
-
Scissor Lift Platform
-
Application:
-
High Altitude Working
-
Keywords:
-
Electric Scissor Lift Platform
-
Usage:
-
Single Person
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Feature:
-
Easy Operation Safety Convenience
-
Material:
-
Stainless steel
-
Lifting height:
-
14m
-
Color:
-
customrize
-
Voltage:
-
customrize

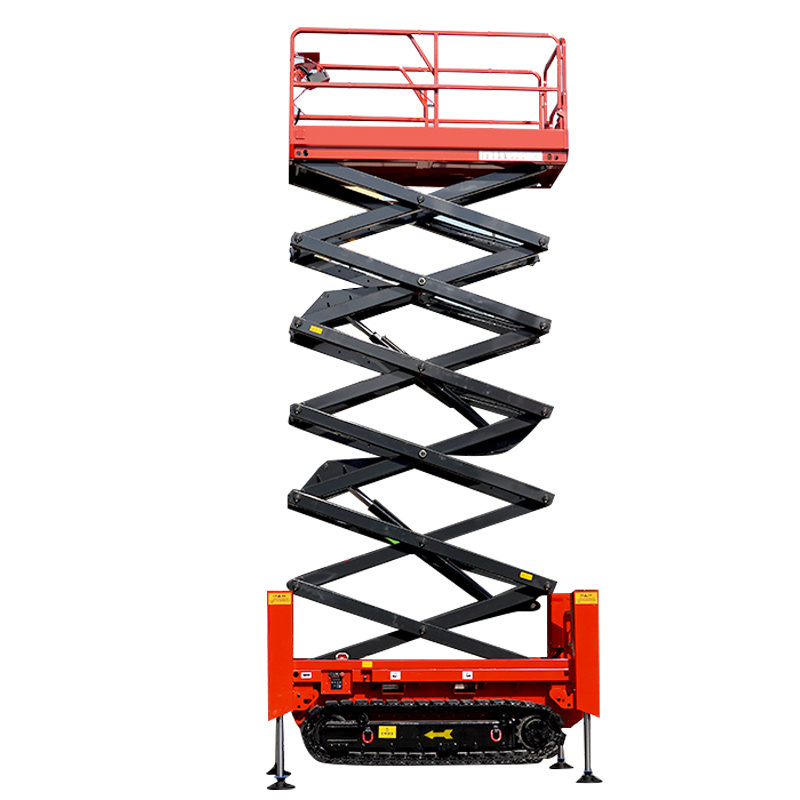

Scissor Lift Platform Safe and Stable Lifting for Workers and Materials
320kg, max.platform length at 3.2m and max. gradeability at 25%.
This vehicle features compact structure, advanced performance,completed safety devices, specially suitable for construction.
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of
platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature thehumanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of
platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature thehumanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
Specification
|
Item
|
Unit
|
Parameters
|
|
Dimensions Length (without ladder)
|
mm
|
2477(2267)
|
|
Dimensions width
|
mm
|
1170
|
|
Dimensions Height (platform folded)
|
mm
|
2355(1805)
|
|
Wheel base
|
mm
|
1877
|
|
Wheel track
|
mm
|
1043
|
|
Min. Ground clearance (pit protector lifting / decline)
|
mm
|
100/20
|
|
Platform dimensions Length
|
mm
|
2277
|
|
Platform dimensions Width
|
mm
|
1120
|
|
Platform dimensions Height
|
mm
|
1263
|
|
Platform dimensions Platform extension length
|
mm
|
900
|
|
Vehicle center of mass position Horizonal distance from front axis
|
mm
|
950
|
|
Vehicle center of mass position Height of center of mass
|
mm
|
613
|
|
Total weight
|
kg
|
2620
|
|
Max. Platform height
|
m
|
8
|
|
Min. Platform height
|
m
|
1.2
|
|
Max. Working height
|
m
|
10
|
|
Min. Turning radius (inner wheel / outer wheel)
|
m
|
0/2.3
|
|
Platform rated load
|
kg
|
450
|
|
Extension platform rated load
|
kg
|
115
|
|
Platform lifting time
|
s
|
29-40
|
|
Platform decline tine
|
s
|
34-45
|
|
Max. Walking speed (low position)
|
km/h
|
4
|
|
Max. Walking speed (high position)
|
km/h
|
0.8
|
|
Max. gradeability
|
%
|
25
|
|
Tilt warning angle(side / forward and backward)
|
°
|
1.5/3
|
|
Lifting /walking motor Model
|
—
|
—
|
|
Lifting /walking motor Rated power
|
kW
|
3.3/0.75
|
|
Lifting /walking motor Manufacturer
|
—
|
—
|
|
Battery Model
|
—
|
T125/3-EV-225
|
|
Battery Voltage
|
v
|
24
|
|
Battery Capacity
|
Ah
|
225
|
|
Battery Manufacturer
|
—
|
Trojan/Leoch
|
|
Tire model
|
—
|
Non-trace solid/381×127
|
