Quick Details
-
Dimension(L*W*H):
-
Depends on the capacity
-
Weight:
-
Depends on the capacity
-
Product name:
-
Fuel gas steam boiler
-
Material:
-
cast iron
-
Color:
-
can make other color
-
Application:
-
Industrial Production
-
Keywords:
-
Gas Fuel Steam Boiler
-
Design fuel:
-
Gas Oil
-
Steam temperature:
-
184-224
-
Rated working pressure:
-
1-1.25 MPa
-
Available fuel:
-
Natrual Gas
-
Advantages:
-
Saving Operation Cost
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO CE
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Steam Production:
-
Max. 35t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongde
-
Dimension(L*W*H):
-
Depends on the capacity
-
Weight:
-
Depends on the capacity
-
Product name:
-
Fuel gas steam boiler
-
Material:
-
cast iron
-
Color:
-
can make other color
-
Application:
-
Industrial Production
-
Keywords:
-
Gas Fuel Steam Boiler
-
Design fuel:
-
Gas Oil
-
Steam temperature:
-
184-224
-
Rated working pressure:
-
1-1.25 MPa
-
Available fuel:
-
Natrual Gas
-
Advantages:
-
Saving Operation Cost
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO CE
-
Marketing Type:
-
Ordinary Product
Product Description

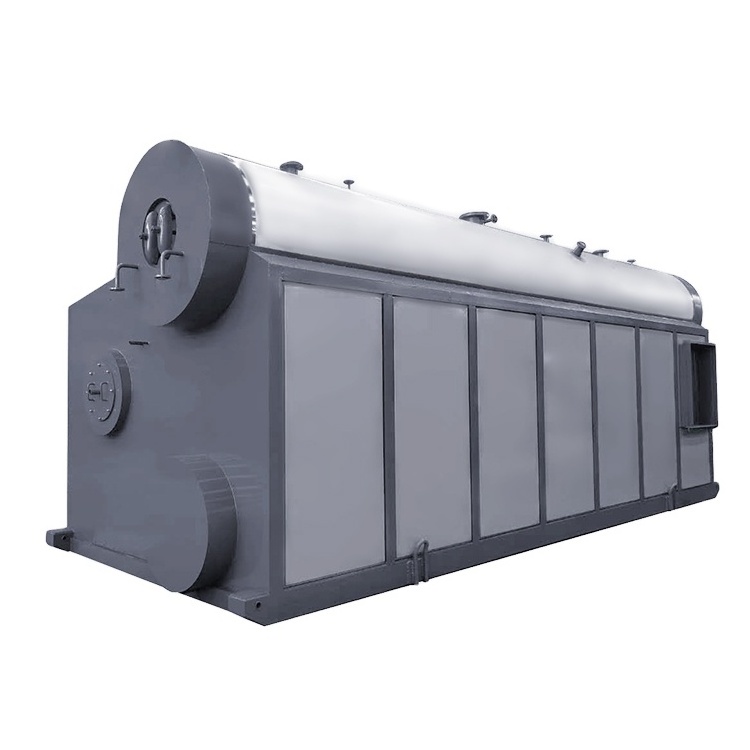

SZS Series Industrial Superheated Gas Oil Burned Steam Boiler
Introduction of Low Cost szs series gas/oil fired steam boiler
Introduction of Low Cost szs series gas/oil fired steam boiler
SZS series oil and gas fired boiler is a packaged water tube boiler with double drums and D-type layout. It has lots of advantages such as sufficient burning, no pollution in the emission, convenient operation, easy installation etc. Besides, SZS series boilers have the features such as high thermal efficiency, high output, better load adaptability, and high automation level as well as safe and reliable operation. It is an ideal environmental protection product with high efficiency, low energy consumption and less pollution which will play an important role in the application field of thermal energy equipment in future.
SZS series oil and gas fired boiler is a packaged water tube boiler with double drums and D-type layout. It has lots of advantages such as sufficient burning, no pollution in the emission, convenient operation, easy installation etc. Besides, SZS series boilers have the features such as high thermal efficiency, high output, better load adaptability, and high automation level as well as safe and reliable operation. It is an ideal environmental protection product with high efficiency, low energy consumption and less pollution which will play an important role in the application field of thermal energy equipment in future.
Features of Low Cost szs series gas/oil fired steam boiler
1. This kind of boiler adopts the structure of double longitudinal drums and D-type furnace. Water tube design, The economizer and other auxiliary heating surface are fixed in the rear. The combustor is located on the front wall. The convection tube bank and rear heating surface from the back of the furnace, and then into air through the chimney.
2. Boiler capacity from 4-60ton/hr, pressure up to 50 bar
3. Body Structure Features: For the double drums longitudinal D-type boiler, the pressure body has a good state of stress. Drums and other important pressure parts won't be radiated and eroded by high temperature flame. Pressure parts, with small thermal stress, can stretch out and draw back freely, and can reach higher safety margin.
4. Auto protect, long-distance control, safety operation.
2. Boiler capacity from 4-60ton/hr, pressure up to 50 bar
3. Body Structure Features: For the double drums longitudinal D-type boiler, the pressure body has a good state of stress. Drums and other important pressure parts won't be radiated and eroded by high temperature flame. Pressure parts, with small thermal stress, can stretch out and draw back freely, and can reach higher safety margin.
4. Auto protect, long-distance control, safety operation.
Product Paramenters
|
Boiler Model
|
|
SZS10
|
SZS15
|
SZS20
|
SZS25
|
SZS30
|
SZS40
|
|||||
|
Rated steam capacity(T/H)
|
|
10
|
15
|
20
|
25
|
30
|
40
|
|||||
|
Rated steam pressure(Mpa)
|
|
1.25/1.6/2.5/3.82
|
|
|
|
|
|
|||||
|
Rated steam temperature(℃)
|
|
194/204/226/450
|
|
|
|
|
|
|||||
|
Feed water temperature(℃)
|
|
20/104
|
|
|
|
|
|
|||||
|
Thermal efficiency(%)
|
|
>98
|
|
|
|
|
|
|||||
|
Fuel type
|
|
Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
|
|
|
|
|
|
|||||
|
Fuel consumption
|
Light diesel oil
|
618
|
927
|
1256
|
1545
|
1856
|
2470
|
|||||
|
(Kg/h)
|
Natural gas
|
660
|
987
|
1314
|
1660
|
1981
|
2630
|
|||||
|
Max transportation weight(t)
|
|
36
|
45
|
52.6
|
55.3
|
63.7
|
77.4
|
|||||
