Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Dimension(L*W*H):
-
1150*1100*1400mm
-
Weight:
-
380KG
-
Max laminating width:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Cylinder diameter:
-
190
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Spain
-
Marketing Type:
-
Ordinary Product
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Paper
-
Driven Type:
-
Hydraulic
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Dimension(L*W*H):
-
1150*1100*1400mm
-
Weight:
-
380KG
-
Max laminating width:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Cylinder diameter:
-
190
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Brazil, Peru, Saudi Arabia, India, Mexico, Russia, Spain
-
Marketing Type:
-
Ordinary Product
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Product Description

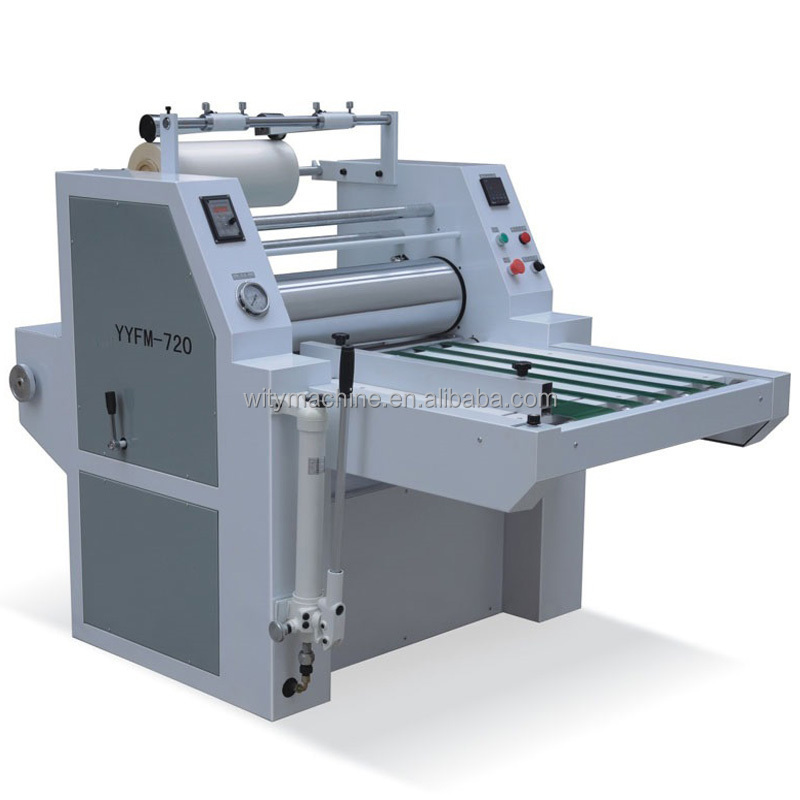

HYDRAULIC FILM LAMINATOR
This machine covers a small area, which is operated conveniently and runs fast.
The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three dimensional sense.
Features
1. One side lamination
2. Automatic temperature control
3. Speed regulation
4. Automatic paper conveying
5. Slitting
Specification
|
Model
|
YYFM-720
|
|
Max laminating width
|
650mm
|
|
Laminating speed
|
0-20m/min
|
|
Laminating temperature
|
60~130℃
|
|
Motor power
|
0.55 KW
|
|
Power of electric heater
|
3 KW
|
|
Voltage
|
380V
|
|
Cylinder diameter
|
190∮
|
|
Measurement(L×W×H)
|
1.15×1.1×1.4m
|
|
Weight
|
380KGS
|
|
Pressure
|
0~4 Mpa
|
Details Images
Sheet feeding table
Film slitting unit
Screen and control buttons
Laminating part
Rewinder
Packing & Delivery
standard wooden package
