Quick Details
-
Size:
-
600*400*820mm
-
Material:
-
Stainless steel, Thicker Stainless Steel
-
Warranty:
-
one year, repair for all time, 1 Year
-
Type:
-
Car Washer
-
Application:
-
Industrial Production
-
Item:
-
electric steam generator
-
Color:
-
Sliver
-
Keywords:
-
Waste Heat Recovery Boiler
-
Design fuel:
-
electric
-
Thermal efficiency:
-
92.4%--94.5%
-
Name:
-
Industry Fire Tube Boiler
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
C800
-
Size:
-
600*400*820mm
-
Material:
-
Stainless steel, Thicker Stainless Steel
-
Warranty:
-
one year, repair for all time, 1 Year
-
Type:
-
Car Washer
-
Application:
-
Industrial Production
-
Item:
-
electric steam generator
-
Color:
-
Sliver
-
Keywords:
-
Waste Heat Recovery Boiler
-
Design fuel:
-
electric
-
Thermal efficiency:
-
92.4%--94.5%
-
Name:
-
Industry Fire Tube Boiler
"60 days"guarantee for replacement.One year warranty.Lifetime repair service.

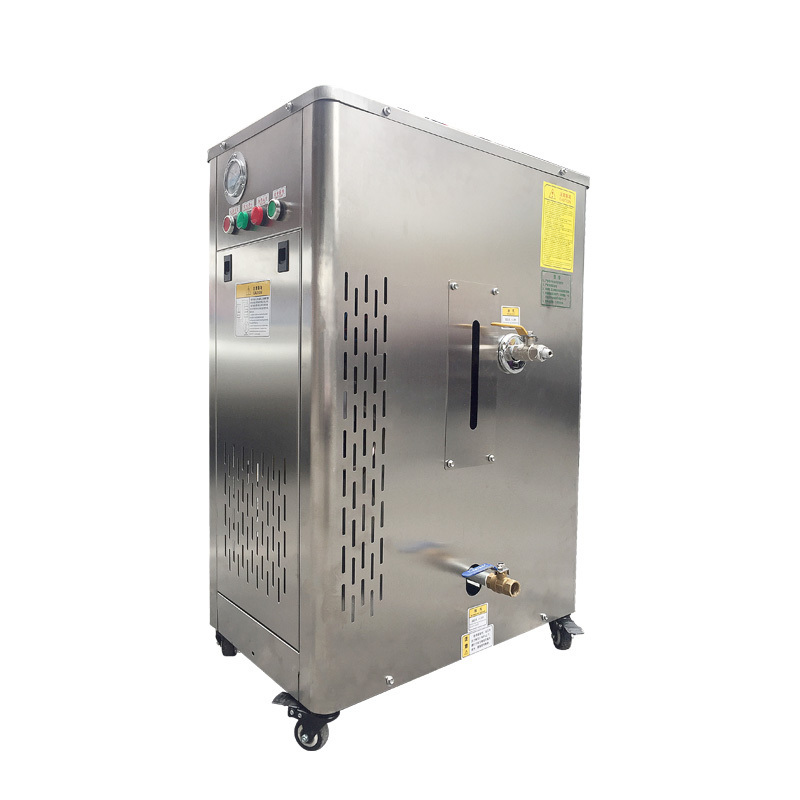

Commercial 3kw-96kw portable auto car wash engine cleaner electric steam generator car washing machine
Product Description
Electric Steam Generator Series Specifications
| Power | Rated Evaporation | Max Pressure | Max Temperature | Voltage | Rated Current | Water Tank | Water Pump Power (W) | Size (MM) |
| 3KW | 4kg/h | 0.7Mpa | 151℃ | 380V | 6A | 25L | 550 | 600*400*820 |
| 6KW | 8k g /h | 0.7Mpa | 151℃ | 380V | 10A | 25L | 550 | 600*400*820 |
| 9KW | 12k g /h | 0.7Mpa | 151℃ | 380V | 16A | 25L | 550 | 600*400*820 |
| 12KW | 16k g /h | 0.7Mpa | 171℃ | 380V | 20A | 25L | 550 | 660*410*900 |
| 18KW | 24k g /h | 0.7Mpa | 1 7 1℃ | 380V | 30A | 25L | 550 | 660*410*900 |
| 24KW | 32k g /h | 0.7Mpa | 1 7 1℃ | 380V | 40A | 29L | 550 | 710*430*1000 |
| 36KW | 50k g /h | 0.7Mpa | 1 7 1℃ | 380V | 60A | 29L | 550 | 710 * 430 * 1000 |
| 48KW(24*2) | 65k g /h | 0.7Mpa | 1 7 1℃ | 380V | 80A | 29L | 550 | 710 * 430 * 1000 |
| 48KW(12*4) | 65k g /h | 0.7Mpa | 1 7 1℃ | 380V | 80A | 29L | 550 | 760 * 460 * 1100 |
| 72KW | 100k g /h | 0.7Mpa | 1 7 1℃ | 380V | 120A | 29L | 550 | 760 * 460 * 1100 |
| 96KW | 132k g /h | 0.7Mpa | 171℃ | 380V | 180A | 29L | 550 | 760 * 460 * 1100 |
