Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
775
-
Torque:
-
1272mN.m
-
Product Name:
-
18V dc motor
-
Application:
-
Household Appliances
-
Motor type:
-
PMDC Brushed Motor
-
Size:
-
86*41mm
-
Rated Voltage:
-
18V
-
No load speed:
-
24000rpm
-
No-load Current:
-
2.75A
-
At max output:
-
277W
-
Function:
-
Driving Equipment Provide Pirme Power
-
Color:
-
Silvery White
Quick Details
-
Speed(RPM):
-
24000rpm
-
Continuous Current(A):
-
2.75A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
775
-
Torque:
-
1272mN.m
-
Product Name:
-
18V dc motor
-
Application:
-
Household Appliances
-
Motor type:
-
PMDC Brushed Motor
-
Size:
-
86*41mm
-
Rated Voltage:
-
18V
-
No load speed:
-
24000rpm
-
No-load Current:
-
2.75A
-
At max output:
-
277W
-
Function:
-
Driving Equipment Provide Pirme Power
-
Color:
-
Silvery White

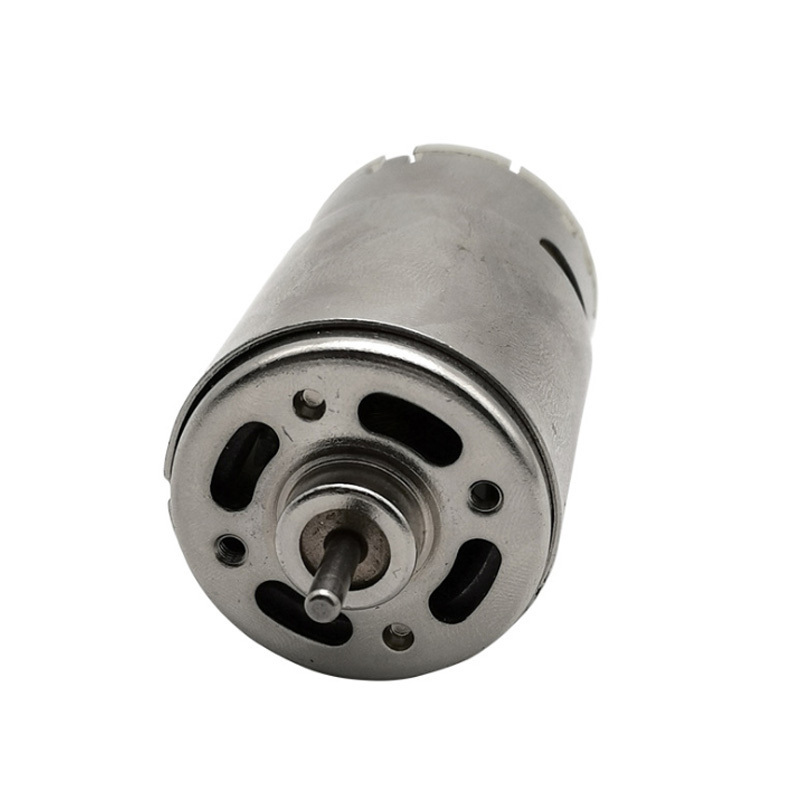

Product name: High speed high torque 18V dc motor 775 series
Model: 770-775series
Typical Applications: vacuum cleaner, gardening tools, electric tools, blender etc.,
Technical drawing :
Technical data for reference, motor can be customized
| Model | Voltage | No-load | At max efficiency | Stall | ||||
|
Speed (rpm) |
Current (A) |
Speed (rpm) |
Current (A) |
Torque (mN.m) |
Output (W) |
Torque (mN.m) |
||
| 770-8034 | 12V | 12000 | 1.30 | 10800 | 11.3 | 950 | 105 | 9030 |
| 775-8012 | 14.4V | 21700 | 2.40 | 18900 | 6.2 | 873 | 170 | 6780 |
| 775-8513 | 18V | 24000 | 2.75 | 21150 | 20.5 | 1272 | 277 | 10800 |
