Quick Details
-
Processor Core:
-
Hexa Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H6-i7-10810U
-
Power:
-
50W
-
Processor Type:
-
Intel Core i7-10810U
-
Chipset Type:
-
Intel
-
Processor Series:
-
Intel Core i7-10810U
-
Video Card:
-
Intel UHD Graphics for 10th CPU
-
Product Name:
-
Fanless PC Mini Industrial Computer
-
CPU:
-
Intel Core i7-10810U
-
Max Memory Size:
-
64GB
-
Storage:
-
1*M.2 2280 M KEY PCIE3.0+1*SATA3.0 Slot for 2.5 inch HDD/SSD
-
Graphics:
-
Intel UHD Graphics for 10th CPU
-
Consumption:
-
50W
-
Video:
-
HD-MI 4096*2160@30Hz + HD-MI 4096*2160@60Hz + DP 4096*2160@60Hz
-
Lan Port:
-
2*RJ45 Lan Gigabit Ethernet Controller,
-
Work Environment:
-
-10℃--60℃(14F~140F) , 30%--90% Humidity
-
USB Port:
-
2*USB 2.0 port,4*USB 3.0 port
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Hexa Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H6-i7-10810U
-
Power:
-
50W
-
Processor Type:
-
Intel Core i7-10810U
-
Chipset Type:
-
Intel
-
Processor Series:
-
Intel Core i7-10810U
-
Video Card:
-
Intel UHD Graphics for 10th CPU
-
Product Name:
-
Fanless PC Mini Industrial Computer
-
CPU:
-
Intel Core i7-10810U
-
Max Memory Size:
-
64GB
-
Storage:
-
1*M.2 2280 M KEY PCIE3.0+1*SATA3.0 Slot for 2.5 inch HDD/SSD
-
Graphics:
-
Intel UHD Graphics for 10th CPU
-
Consumption:
-
50W
-
Video:
-
HD-MI 4096*2160@30Hz + HD-MI 4096*2160@60Hz + DP 4096*2160@60Hz
-
Lan Port:
-
2*RJ45 Lan Gigabit Ethernet Controller,
-
Work Environment:
-
-10℃--60℃(14F~140F) , 30%--90% Humidity
-
USB Port:
-
2*USB 2.0 port,4*USB 3.0 port

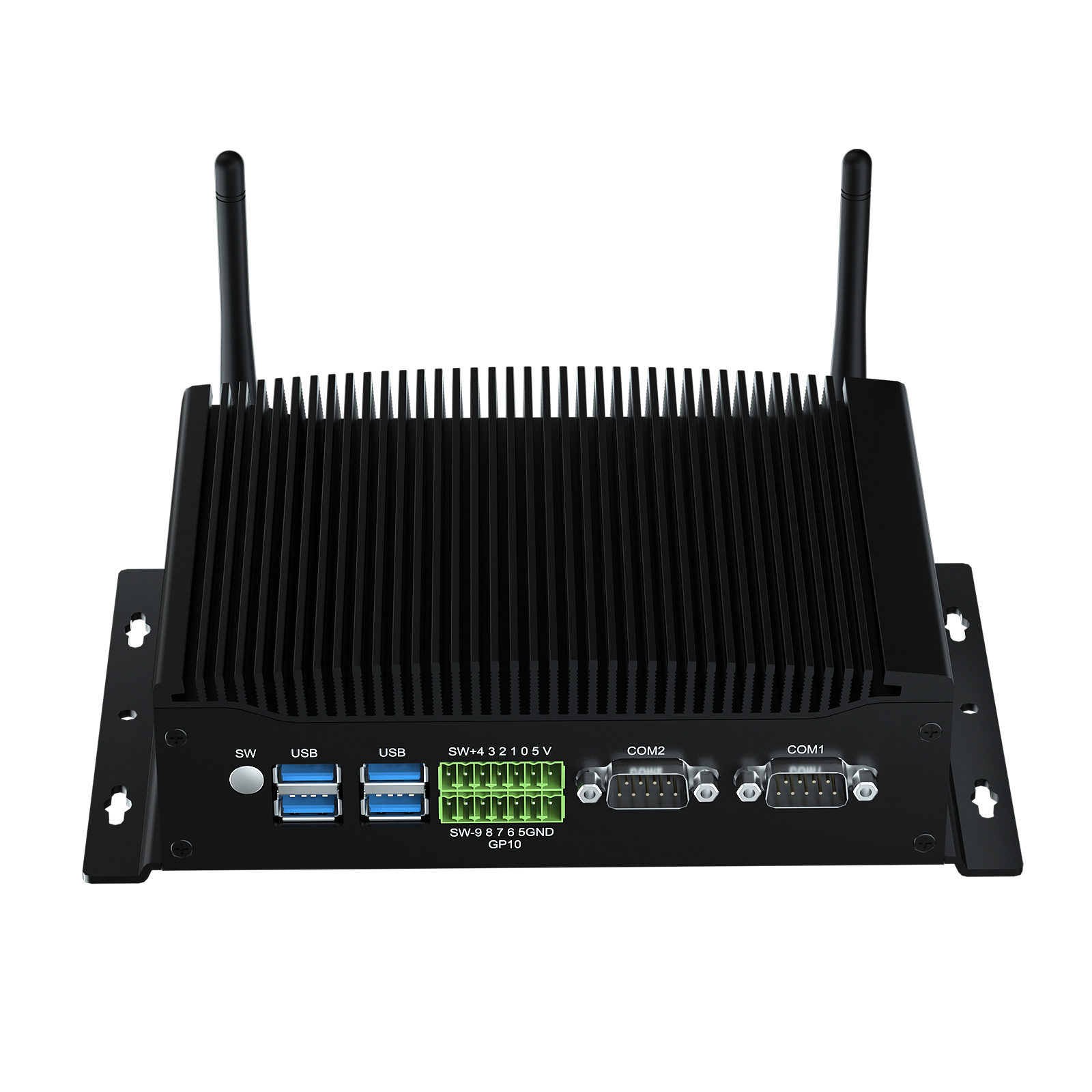

Product Picture
Details Images
Products Description
|
Processor
(Any questions or customization? )
|
|
||
|
CPU
|
Intel Core i3-10110U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 4.10 GHz)
Intel Core i5-10210U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz) Intel Core i5-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz) Intel Core i7-10810U (12M Cache, 6 Cores 12 Threads, Base Frequency 1.10 GHz Turbo Frequency 4.90 GHz)
Intel Core i5-8260U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
|
||
|
TDP
|
15W
|
||
|
CPU Lithography
|
14 nm
|
||
|
Memory Specifications
|
|
||
|
Max Memory Size
|
64GB
|
||
|
Memory Types
|
2*DDR4 SO-DIMM 260 pin
|
||
|
Memory Channels
|
Dual Channels
|
||
|
ECC Memory
|
Don’t support
|
||
|
Storage Specification
|
|
||
|
m.2 SSD
|
1*M.2 2280 M KEY PCIE3.0
|
||
|
SATA
|
1*SATA3.0 Slot for 2.5 inch HDD/SSD
|
||
|
mSATA
|
NO mSATA slot
|
||
|
Graphics
|
|
||
|
Processor Graphics
|
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
|
||
|
HDMI
|
1*HD-MI 4096*2160@30Hz(4K) + 1*HD-MI 4096*2160@60Hz(4K)
|
||
|
DP
|
1*DP 4096*2160@60Hz(4K)
|
||
|
Power Specification
|
|
||
|
Adapter Input
|
AC 110-240V, 50/60HZ
|
||
|
Adapter Output
|
DC 12V/5A
|
||
|
Consumption
|
50W
|
||
|
Auto Power On
|
Support Auto Power On Function
|
||
|
In & Out interfaces
|
|
||
|
USB Port
|
2*USB 2.0 port,4*USB 3.0 port
|
||
|
Audio
|
1*3.5mm MIC in & SPK out
|
||
|
Video
|
HD-MI 4096*2160@30Hz + HD-MI 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
|
||
|
Lan Port
|
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
|
||
|
Com Port
|
2*RS232 Com port,Support RS422/RS485 Com port
|
||
|
Others
|
|
||
|
System
|
Support Windows 10/11, Linux
|
||
|
Case Material
|
Aluminum Alloy
|
||
|
Dimension
|
PC size 205*125*53mm
Package size 308*206*75mm |
||
|
Working Environment
|
-10℃--60℃(14F~140F) , 30%--90% Humidity
|
||
|
Weight
|
Net 1.2kg; Gross 1.9kg
|
||
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.
The more you purchase, the cheaper the prlce.
Product Usage
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
